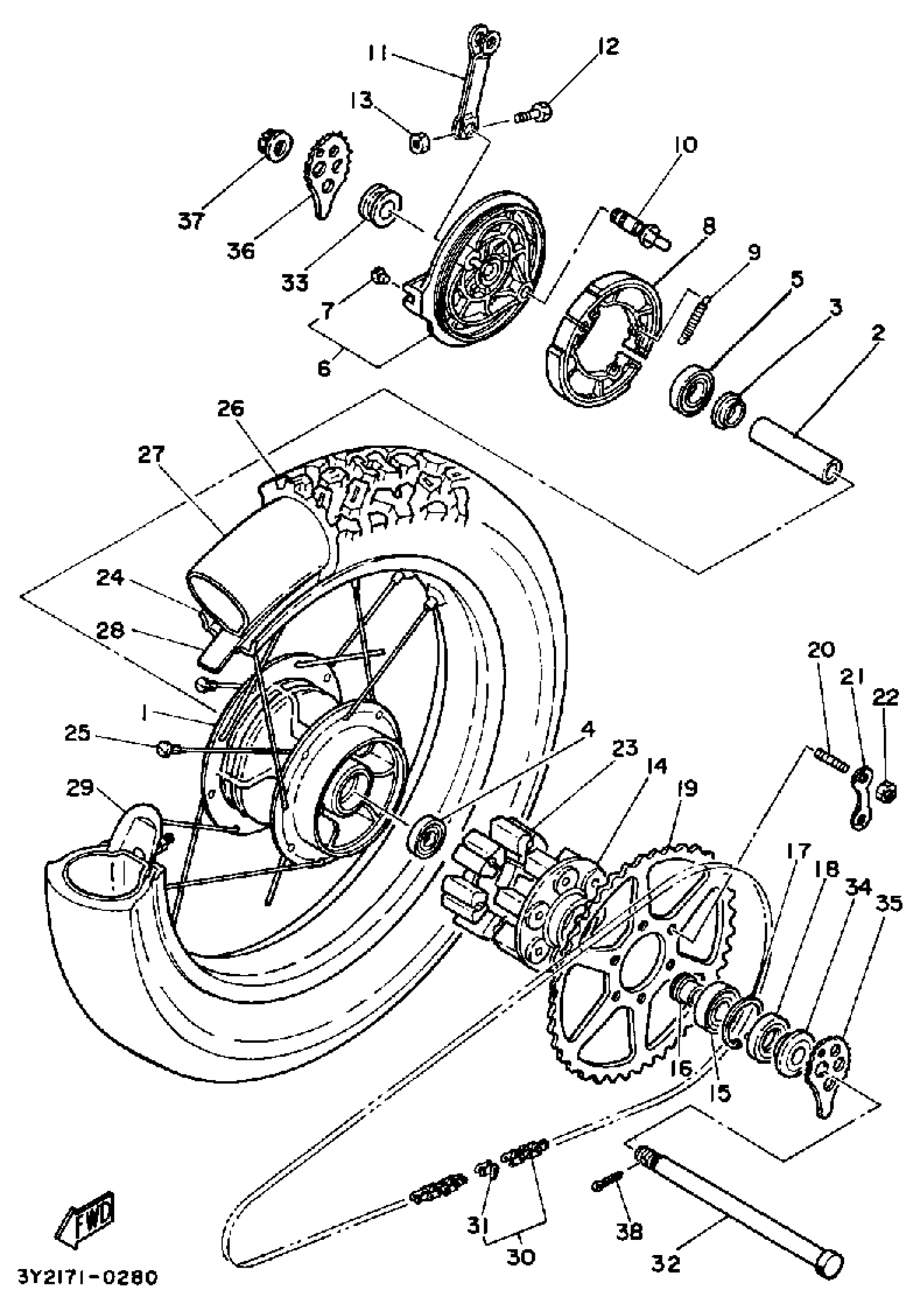

Yamaha XT250G_1980 REAR WHEEL Diagram

HUB, REAR

3Y1-25311-00-98

Unavailable

SPACER

90560-17311-00

Unavailable

BEARING(3DL)

93306-20226-00

$38.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

BRAKE SHOE PLATE ASEMBLY

3Y1-25026-00-00

Unavailable

GROMMET (397)

90480-10068-00

$8.49

BRAKE SHOE KIT

3KG-W253E-00-00

Unavailable

SPRING (5T9)

90506-17328-00

Unavailable

CAMSHAFT

3Y6-2531-00-00

Unavailable

LEVER, CAM SHAFT

1E2-25155-00-00

Unavailable

BOLT, HEXAGON (538)

90101-06278-00

$2.17

NUT, HEXAGON

95380-06600-00

Unavailable

CLUTCH, HUB

3Y1-2536600-98

Unavailable

BEARING(1YW)

93306-20461-00

$39.99

COLLAR, WHEEL

3Y1-25377-00-00

Unavailable

CIRCLIP(48Y)

99009-47500-00

Unavailable

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

SPROCKET, DRIVEN (47T)

30X-25447-51-00

Unavailable

BOLT, STUD (483)

90116-08218-00

Unavailable

WASHER, LOCK (3Y2)

90215-08160-00

Unavailable

NUT (3Y2)

90170-08258-00

Unavailable

DAMPER

3Y1-25364-00-00

Unavailable

RIM (2.15-17)

94421-17242-00

Unavailable

SPOKE SET, REAR

3Y1-25304-00-00

Unavailable

TIRE (BS 460X17 TW10A)

94146-17415-00

Unavailable

TUBE (94246-17158-00)

94240-17164-00

Unavailable

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

Unavailable

SPACER, BEAD

3Y1-25394-00-00

Unavailable

CHAIN (520DS-98L)

9Y585-20097-00

Unavailable

JOINT, CHAIN

94681-68001-00

Unavailable

AXLE,WHEEL

150-25381-01-00

Unavailable

COLLAR(3SX)

90387-170X9-00

Unavailable

COLLAR, WHEEL

3Y1-25383-00-00

Unavailable

PULLER, CHAIN 1

3Y1-25388-01-00

Unavailable

PULLER, CHAIN 2

3Y1-25389-00-00

Unavailable

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

PIN, COTTER

91490-30030-00

Unavailable
