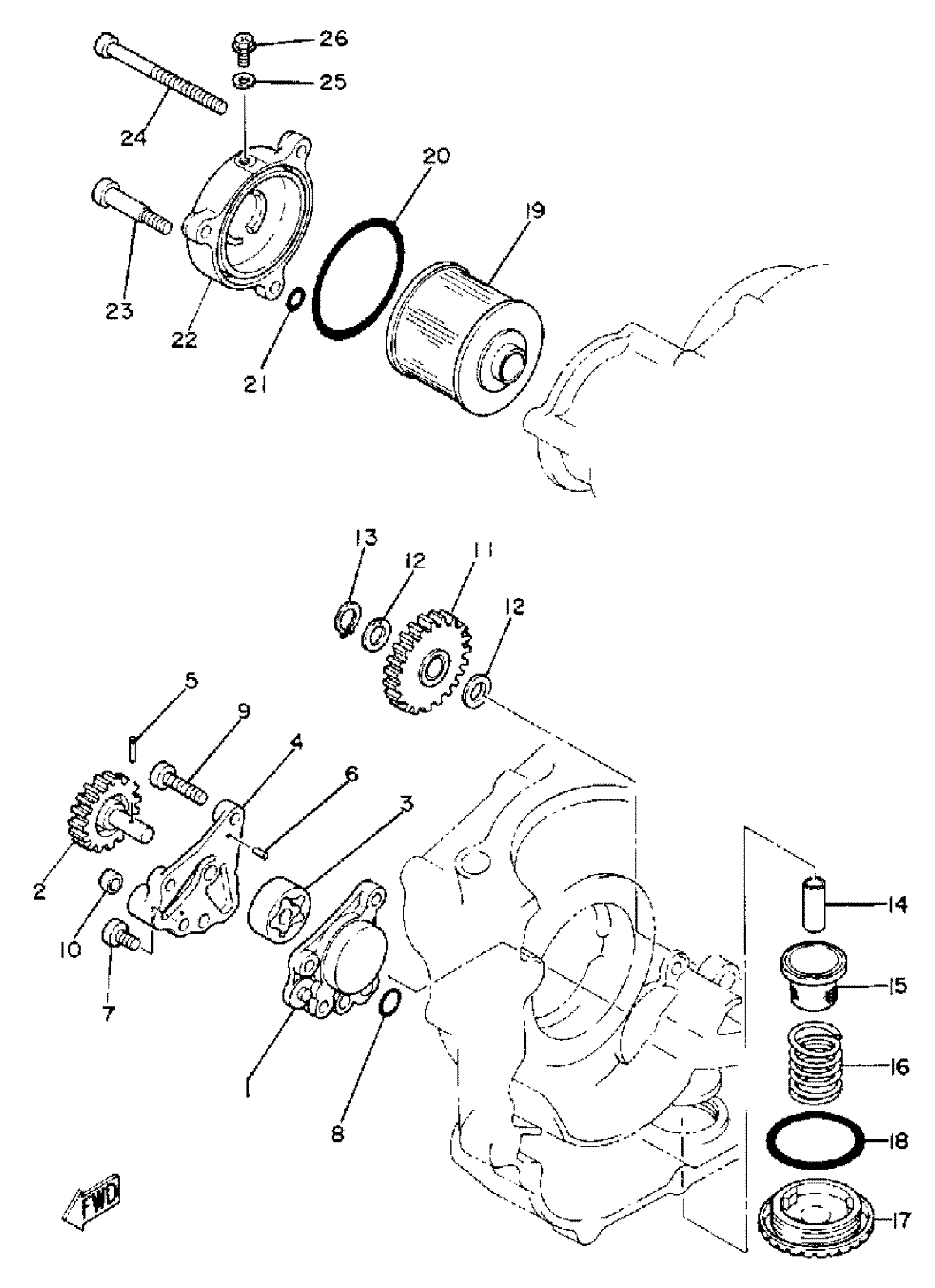

Yamaha XT250G_1980 OIL PUMP Diagram

#

Description
Price

1

HOUSING, ROTOR 001

(3Y1-13336-00-00

Unavailable

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

$11.99

3

OIL PUMP ASY

3Y6-13300-01-00

Unavailable

4

OIL PUMP ASY

3Y6-13300-01-00

Unavailable

5

PIN,DOWEL (137)

93603-12030-00

$2.07

6

PIN, DOWEL

93603-07073-00

$9.49

7

SCREW, PAN

98507-06014-00

$8.49

8

O-RING

93210-10098-00

Unavailable

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

GASKET (3Y1)

90430-06156-00

$4.29

11

GEAR, OIL PUMP IDLE

3Y1-13341-00-00

$37.99

12

WASHER, PLAIN(735)

90201-10119-00

Unavailable

13

CIRCLIP

99009-10400-00-00

Unavailable

14

PIPE, OIL 1

2KK-13416-00-00

Unavailable

15

STRAINER, OIL

51Y-13411-00-00

$37.99

16

SPRING, COMPRESSION

90501-18576-00-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

O-RING (341)

93210-54175-00

Unavailable

19

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

Unavailable

20

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

21

O-RING

93210-07438-00

Unavailable

22

COVER, OIL ELEMENT

583-13447-01-00

Unavailable

23

BOLT (583 OIL DRAIN)

90109-06419-00

Unavailable

24

SCREW, PAN

98507-06075-00

Unavailable

25

GASKET

90430-05126-00

Unavailable

26

SCREW (583)

90149-05110-00

Unavailable
