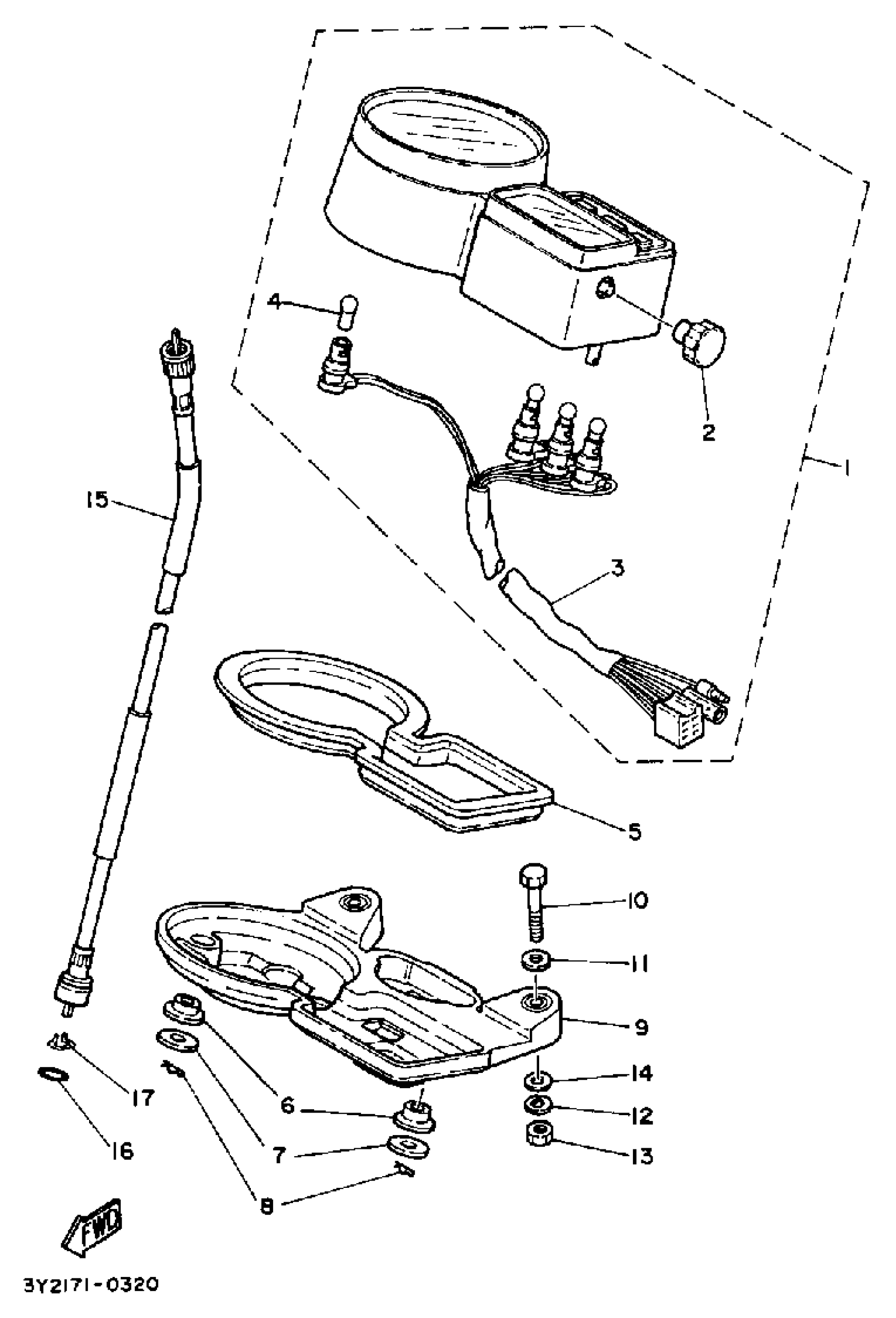

Yamaha XT250G_1980 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(3Y1-83570-A0-00

Unavailable

2

. KNOB, TRIP METER

3Y1-83578-00-00

Unavailable

3

. SOCKET CORD ASSEMBLY

3Y1-83509-00-00

Unavailable

4

BULB,(6V3W)

122-83516-10-00

Unavailable

5

UNAVAILABLE IN PRICE BOOK

3Y1-83513-00-00

Unavailable

6

DAMPER 2

1M1-83526-01-00

$4.47

7

WASHER PLATE 829771780000

90201-05033-00

$10.49

8

CLIP (156-83525-00)

90468-10050-00

$3.05

9

BRACKET, METER

3Y1-83519-00-00

Unavailable

10

BOLT, HEXAGON

97013-06045-00

$1.11

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

SPEED0METER CABLE ASSY

3Y1-83550-01-00

$45.99

16

O-RING (26H)

93210-14579-00

Unavailable

17

RING, STOP

102-25137-00-00

Unavailable
