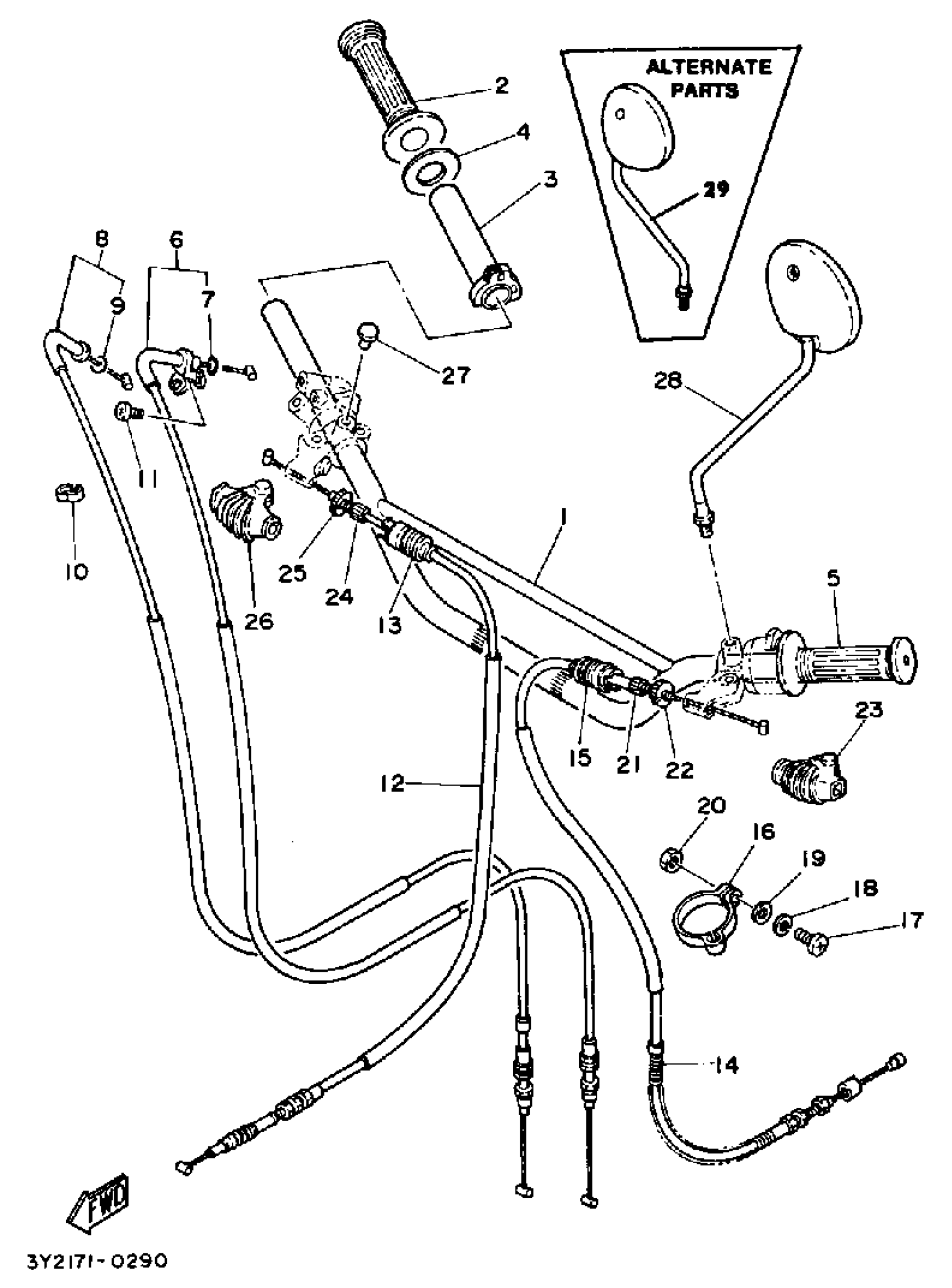

Yamaha XT250G_1980 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

3Y1-26111-00-00

Unavailable

2

GRIP (R.H)

1A0-26242-01-00

$39.99

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$28.99

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

6

CABLE, THROTTLE 1

3Y1-26311-10-00

Unavailable

7

. O-RING

93210-08408-00

Unavailable

8

CABLE, THROTTLE 2

53R-26312-00-00

$43.99

9

. O-RING

93210-08408-00

Unavailable

10

CLIP, WIRE 2072639100

90468-15009-00

Unavailable

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

CABLE, BRAKE

3Y1-26341-00-00

Unavailable

13

BOOT, WIRE

1E6-26342-00-00

$30.99

14

CABLE, CLUTCH

3Y0-26335-00-00

Unavailable

15

BOOT, WIRE

1E6-26342-00-00

$30.99

17

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

WASHER, PLAIN (646)

92990-05600-00

Unavailable

20

NUT, HEXAGON (663)

95380-05600-00

Unavailable

21

BOLT

90123-08045-00

Unavailable

22

NUT

90179-08030-00

Unavailable

23

COVER, LEVER

1E6-26372-00-00

Unavailable

24

BOLT

90123-08045-00

Unavailable

25

NUT

90179-08030-00

Unavailable

26

COVER, LEVER

1E6-26372-00-00

Unavailable

27

PLUG (341-26329-00)

90338-09012-00

Unavailable

28

MIRROR ASSY., 2

5Y1-26290-11-00

Unavailable

29

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

Unavailable
