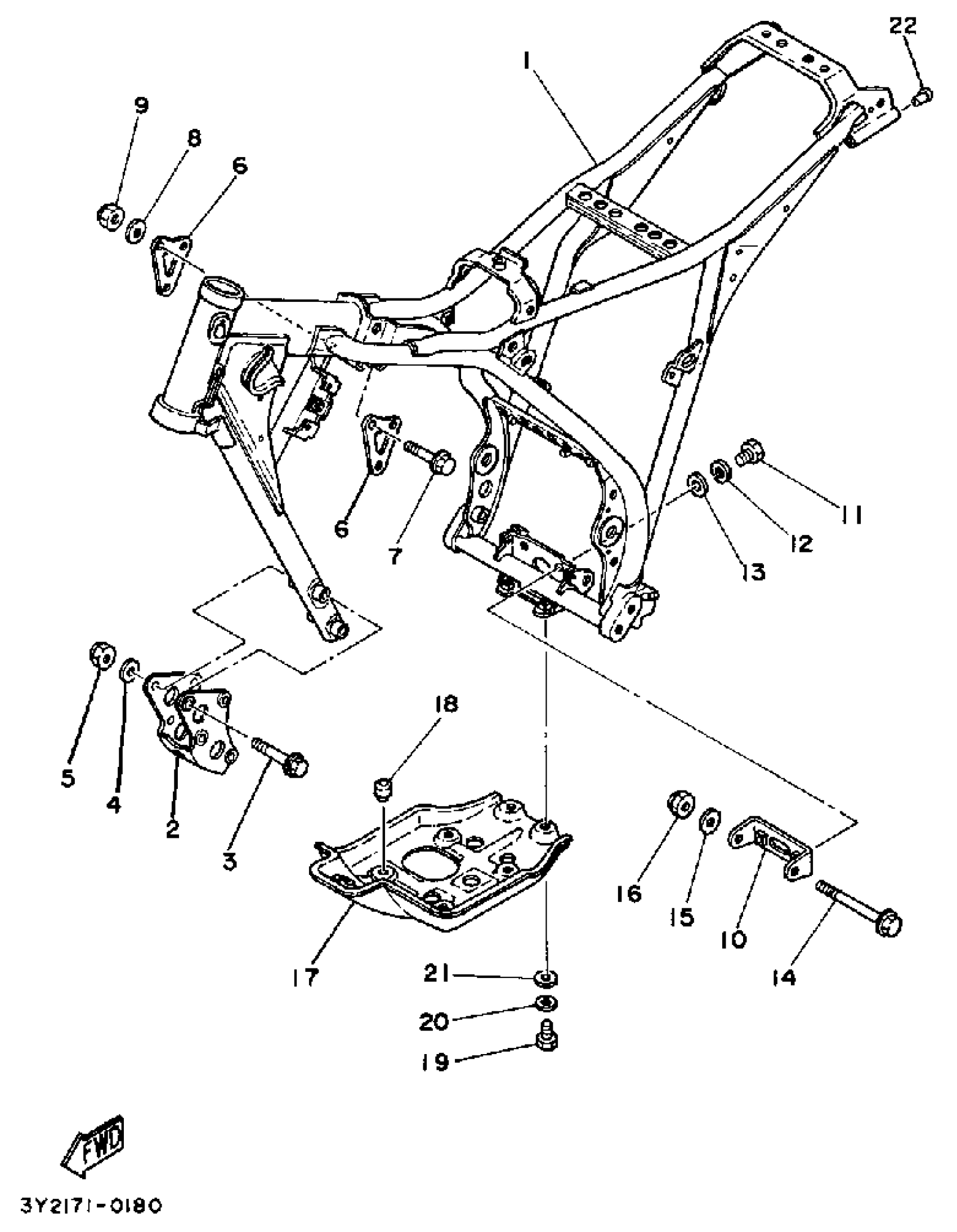

Yamaha XT250G_1980 FRAME Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK (3Y1-21110-33)

(99-99901-26-60

Unavailable

2

UNAVAILABLE IN PRICE BOOK

(3Y-12131-60-00

Unavailable

3

BOLT, FLANGE

95817-06070-00

$4.72

4

WASHER, PLATE (33N)

90201-094G1-00

$9.49

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

STAY, ENGINE 2

3Y1-21315-00-00

Unavailable

7

BOLT, FLANGE

90105-10403-00

$13.49

8

WASHER, PLATE (33N)

90201-094G1-00

$9.49

9

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

10

PLATE, ENGINE ADJUSTING

3Y1-21475-00-00

Unavailable

11

BOLT, HEXAGON

97013-08016-00

$1.01

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

BOLT, WASHER BASED (3Y2)

90105-08162-00

$5.60

15

WASHER, PLATE (33N)

90201-094G1-00

$9.49

16

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

17

PROTECTOR, ENGINE

3Y1-21471-00-35

Unavailable

18

STOPPER

3Y1-24768-00-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

PLUG, BLIND

3Y1-21279-00-00

Unavailable
