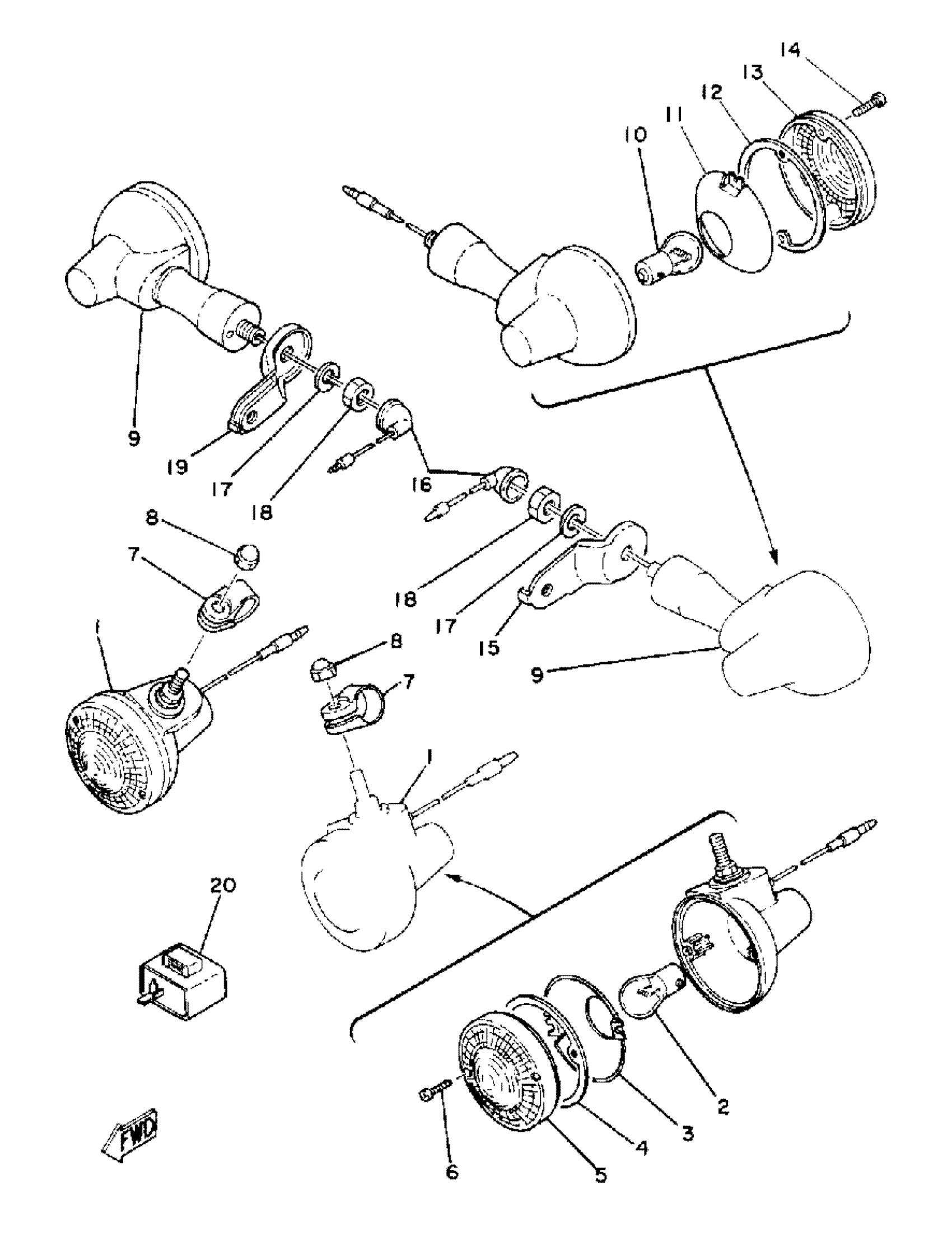

Yamaha XT250G_1980 FLASHER LIGHTS Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1M1-83310-60-00

Unavailable

2

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

3

. REFLECTOR

1M1-83309-60-00

Unavailable

4

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

5

LENS, FLASHER

341-83312-70-00

Unavailable

6

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

7

STAY, FLASHER

1M1-83318-00-00

$8.99

8

NUT, CROWN

95303-08800-00

$9.49

9

RIGHT FLASHER LIGHT ASSY

1T9-93330-60-00

Unavailable

10

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

11

. REFLECTOR

1M1-83309-60-00

Unavailable

12

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

13

LENS, FLASHER

51L-83332-01-00

Unavailable

14

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

15

STAY, REAR FLASHER (L.H)

1T2-83368-00-00

Unavailable

16

CAP

3Y1-83365-00-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

NUT(3BM)

95314-10600-00

Unavailable

19

STAY, REAR FLASHER (L.H)

1T2-83368-00-00

Unavailable

20

FLASHER RELAY ASSY

3BK-83350-00-00

Unavailable
