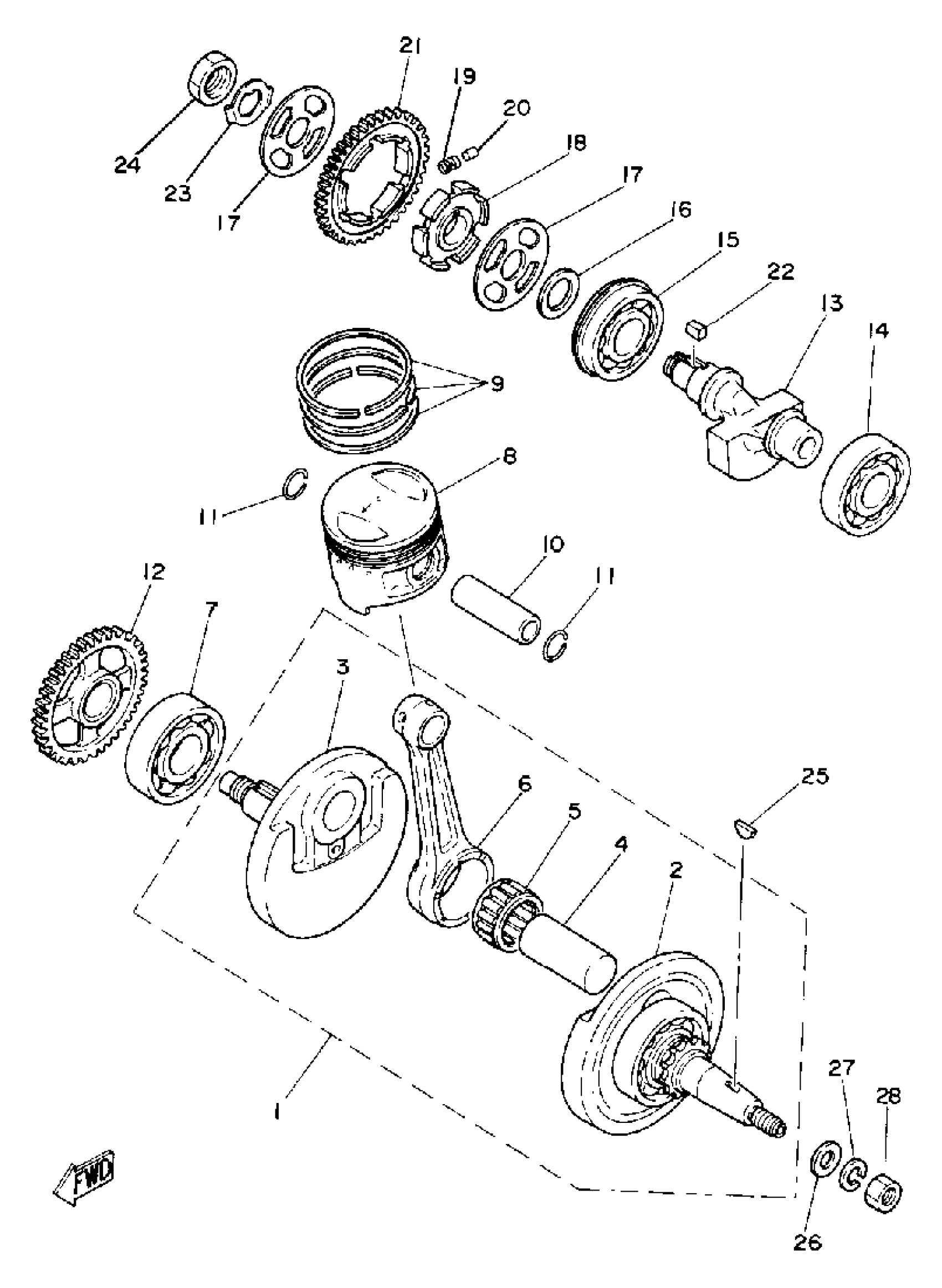

Yamaha XT250G_1980 CRANKSHAFT PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSEMBLY

3Y1-11400-00-00

Unavailable

2

CRANK SUB ASSY 1

3Y1-11401-09-00

$165.99

3

. CRANK 2

3Y1-11422-01-00

Unavailable

4

. PIN, CRANK 1

3Y1-11681-00-00

Unavailable

5

. BEARING, CYLINDER #10

93310-831H1-00

Unavailable

6

. ROD, CONNECTING

3Y1-11651-02-00

Unavailable

7

BEARING(3KW)

93306-30630-00

$73.99

8

PISTON (STD)

3Y1-11631-00-A0

Unavailable

8

PISTON 1 O/S 0.25

3Y1-11635-00-00

Unavailable

8

PISTON 2 O/S 0.50

3Y1-11636-00-00

Unavailable

8

PISTON 3 O/S 0.75

3Y1-11637-00-00

Unavailable

8

PISTON 4 O/S 1.0

3Y1-11638-00-00

Unavailable

9

PISTON RING SET (STD)

447-11610-00-00

Unavailable

9

PISTON RING SET (STD) 1ST O/S

447-11610-10-00

Unavailable

9

PISTON RING SET (STD) 2ND O/S

447-11610-20-00

Unavailable

9

PISTON RINGSET 3RD

447-11610-30-00

Unavailable

9

PISTON RINGSET 4TH

447-11610-40-00

Unavailable

10

PIN, PISTON

447-11633-00-00

Unavailable

11

CIRCLIP 341116340000

93450-22027-00

Unavailable

12

GEAR, DRIVE (43T)

3Y1-11536-00-00

Unavailable

13

WEIGHT 1

3Y1-11454-00-00

Unavailable

14

BEARING (3Y1)

93306-30525-00

Unavailable

15

BEARING (5Y1)

93306-30540-00

Unavailable

16

WASHER, PLATE (3Y1)

90201-20792-00

Unavailable

17

UNAVAILABLE IN PRICE BOOK

[3Y-11156-50-00

Unavailable

18

BOSS, BUFFER

3Y1-11496-00-00

Unavailable

19

SPRING COMPRESSION341114880000

90501-21133-00

Unavailable

21

GEAR, BALANCE WT

3Y1-11531-02-00

Unavailable

22

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

23

WASHER, LOCK (3Y1)

90215-20158-00

Unavailable

24

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

25

KEY, WOODRUFF

90280-05001-00

Unavailable

26

WASHER, PLATE (583)

90201-12593-00

Unavailable

27

PIN, DOWEL

93605-10090-00

Unavailable

28

NUT(55K)

90170-12347-00

Unavailable
