Description

Price

1

COVER, CRANKCASE L

3Y1-15411-01-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3Y1-15451-10-00

$22.99

3

O-RING (341)

93210-32172-00

$7.49

4

COVER, CRANKCASE R

99999-01396-00

Unavailable

5

HOLDER

3Y1-15378-01-00

Unavailable

6

GASKET, CRANKCASE COVER 2

3Y1-15461-10-00

$24.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

9

SCREW, PAN

98507-06035-00

$8.49

10

OIL SEAL (3Y1)

93101-14092-00

$11.49

11

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

12

PLUG, OIL

3Y1-15363-10-00

$18.49

13

O-RING (646)

93210-19123-00

Unavailable

14

CLAMP

90462-08062-00

Unavailable

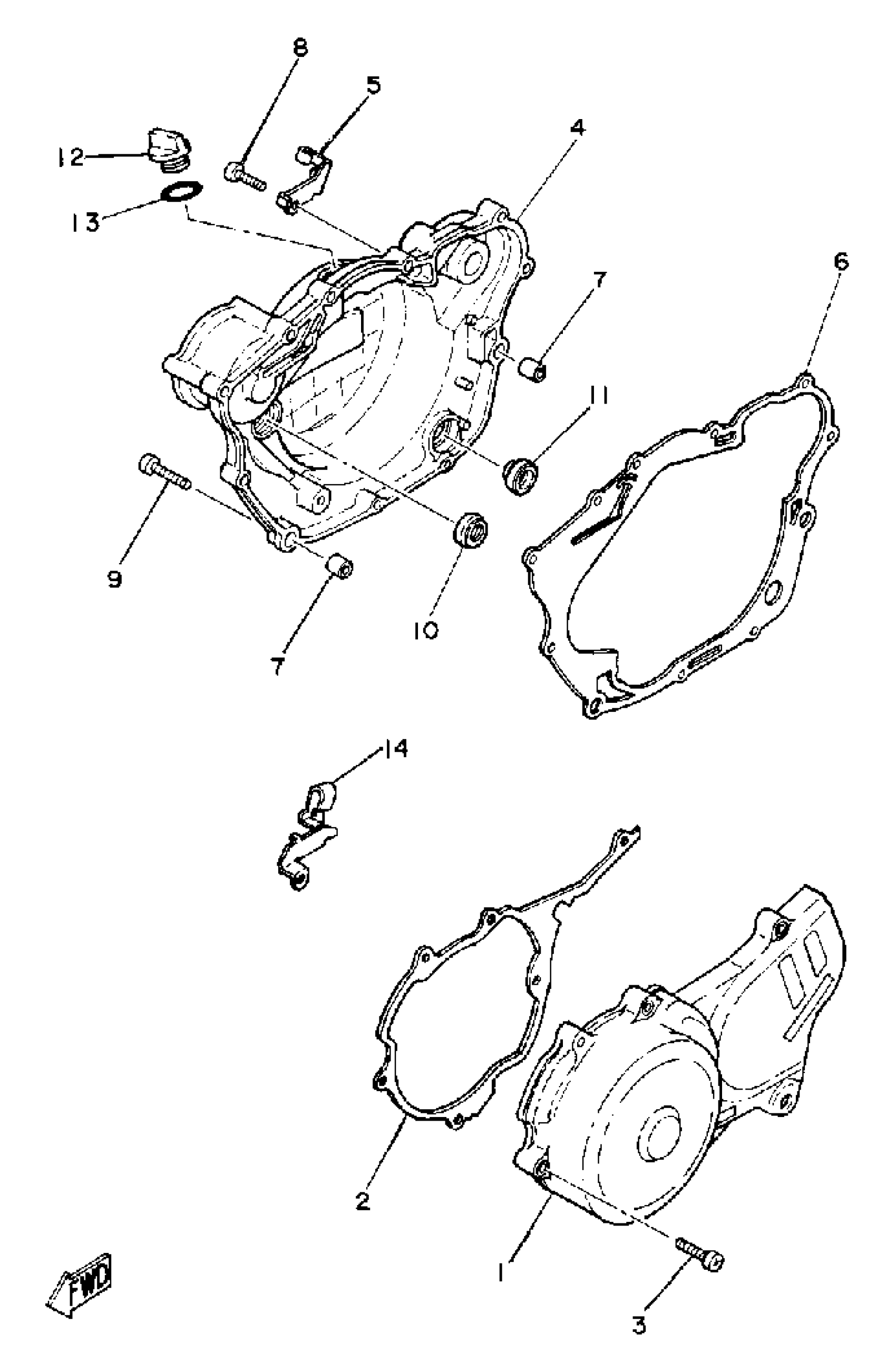

Yamaha XT250G_1980 CRANKCASE COVER Diagram

COVER, CRANKCASE L

GASKET, CRANKCASE COVER 1

O-RING (341)

COVER, CRANKCASE R

HOLDER

GASKET, CRANKCASE COVER 2

PIN, DOWEL(3VD)

SCREW, PAN HEAD (76T)

SCREW, PAN

OIL SEAL (3Y1)

GAUGE, LEVEL

PLUG, OIL

O-RING (646)

CLAMP
