CARBURETOR

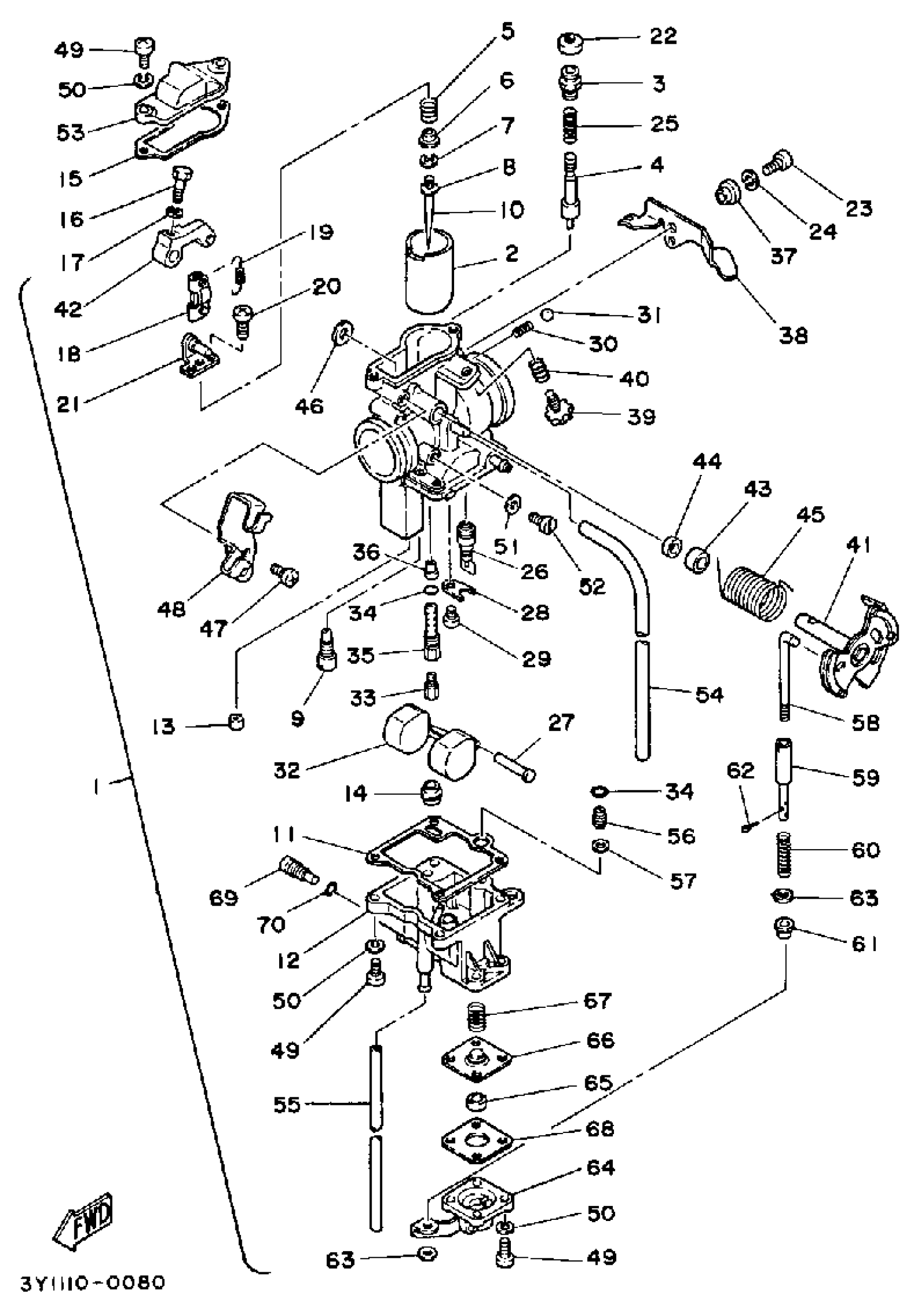

Yamaha XT250G_1980 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
3Y1-14101-00-00
Unavailable
2
. UNAVAILABLE IN PRICE BOOK
[3Y-11411-22-50
Unavailable
3
CAP, PLUNGER
(3Y1-14174-00-00)
Unavailable
4
. PLUNGER, STARTER
3Y1-14171-00-00
Unavailable
5
. SPRING
3H1-14589-00-00
Unavailable
6
. WASHER
2N6-14227-01-00
Unavailable
8
. RING
2N6-14918-01-00
Unavailable
9
. JET PILOT 175 (3Y1-14142-17-A0)
3Y1-14142-17-00
Unavailable
10
. UNAVAILABLE IN PRICE BOOK
[16-81411-66-50
Unavailable
11
GASKET
3Y1-14184-00-00
Unavailable
12
. BODY, FLOAT CHAMBER
3Y1-14981-10-00
Unavailable
13
CAP
3F9-14118-00-00
Unavailable
14
. UNAVAILABLE IN PRICE BOOK
[3Y-11415-30-00
Unavailable
15
GASKET
3Y1-14536-00-00
Unavailable
16
. UNAVAILABLE IN PRICE BOOK
[3Y-11459-20-00
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
18
. UNAVAILABLE IN PRICE BOOK
[3Y-11427-60-00
Unavailable
19
. UNAVAILABLE IN PRICE BOOK
[3Y-11427-50-00
Unavailable
20
. UNAVAILABLE IN PRICE BOOK
[3Y-12445-30-00
Unavailable
21
. UNAVAILABLE IN PRICE BOOK
[3Y-11429-10-00
Unavailable
22
. COVER, PLUNGER
3A3-14173-00-00
Unavailable
23
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
24
WASHER, SPRING
92995-06100-00
Unavailable
25
SPRING, PLUNGER
156-14135-00-00
Unavailable
26
. NEEDLE VALVE ASSEMBLY
2H014190-20-00
Unavailable
27
PIN, FLOAT
537-14186-00-00
Unavailable
28
. PLATE
2H0-14146-00-00
Unavailable
29
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
30
SPRING
583-14589-00-00
Unavailable
31
BALL
93501-08001-00
Unavailable
32
. FLOAT
3H1-14185-00-00
Unavailable
33
JET, MAIN (#165)
137-14143-33-00
Unavailable
34
O-RING
583-14561-00-00
Unavailable
35
. PIPE
3H1-14148-00-00
Unavailable
36
. UNAVAILABLE IN PRICE BOOK
[3Y-11414-13-00
Unavailable
37
. NUT
583-14594-00-00
Unavailable
38
. LEVER STARTER 1
3Y1-14175-00-00
Unavailable
39
. THROTTLE SCREW SET
24U-14103-00-00
Unavailable
40
. , SPRING, THROTTLE STOP
3F7-14934-00-00
Unavailable
41
. SHAFT, THROTTLE LEVER
3Y1-14215-00-00
Unavailable
42
. UNAVAILABLE IN PRICE BOOK
[3Y-11429-20-00
Unavailable
43
COLLAR
(3F7-14265-00-00)
Unavailable
44
SEAL
2A2-14997-00-00
Unavailable
45
. SPRING, THROTTLE VALVE
3Y1-14131-00-00
Unavailable
46
WASHER (3H1)
1A8-14953-00-00
Unavailable
47
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
48
. BRACKET, THROTTLE
3Y1-14571-00-00
Unavailable
49
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
50
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
51
.. WASHER, PLUG SCREW
584-14956-00-00
Unavailable
52
. PLUG, SCREW
2F5-14115-00-00
Unavailable
53
. UNAVAILABLE IN PRICE BOOK
[3Y-11415-80-00
Unavailable
54
PIPE
26H-14197-01-00
Unavailable
55
HOSE
88R-14987-00-00
Unavailable
56
. VALVE, CHECK SEAT
2H0-14272-00-00
Unavailable
57
. WASHER, NEEDLE VALVE
2H0-14195-00-00
Unavailable
58
. ROD
3Y1-14992-00-00
Unavailable
59
. ROD
2H0-14992-00-00
Unavailable
60
. SPRING, DIAPHRAGM
3Y1-14933-00-00
Unavailable
61
. COLLAR
2H0-14534-00-00
Unavailable
62
. PIN, COTTER
91490-12012-00
Unavailable
63
. WASHER
2H0-14227-00-00
Unavailable
64
LEVER, STARTER
(3Y1-14905-00-00)
Unavailable
65
. RING
3Y0-14918-00-00
Unavailable
66
DIAPHRAGM ASSY
3Y1-14940-00-00
Unavailable
67
. SPRING
3Y1-14589-00-00
Unavailable
68
. SEAT, SPRING
3Y1-14936-00-00
Unavailable
69
PLUG, DRAIN
12R-14191-00-00
Unavailable
70
O-RING
214-14147-00-00
Unavailable
