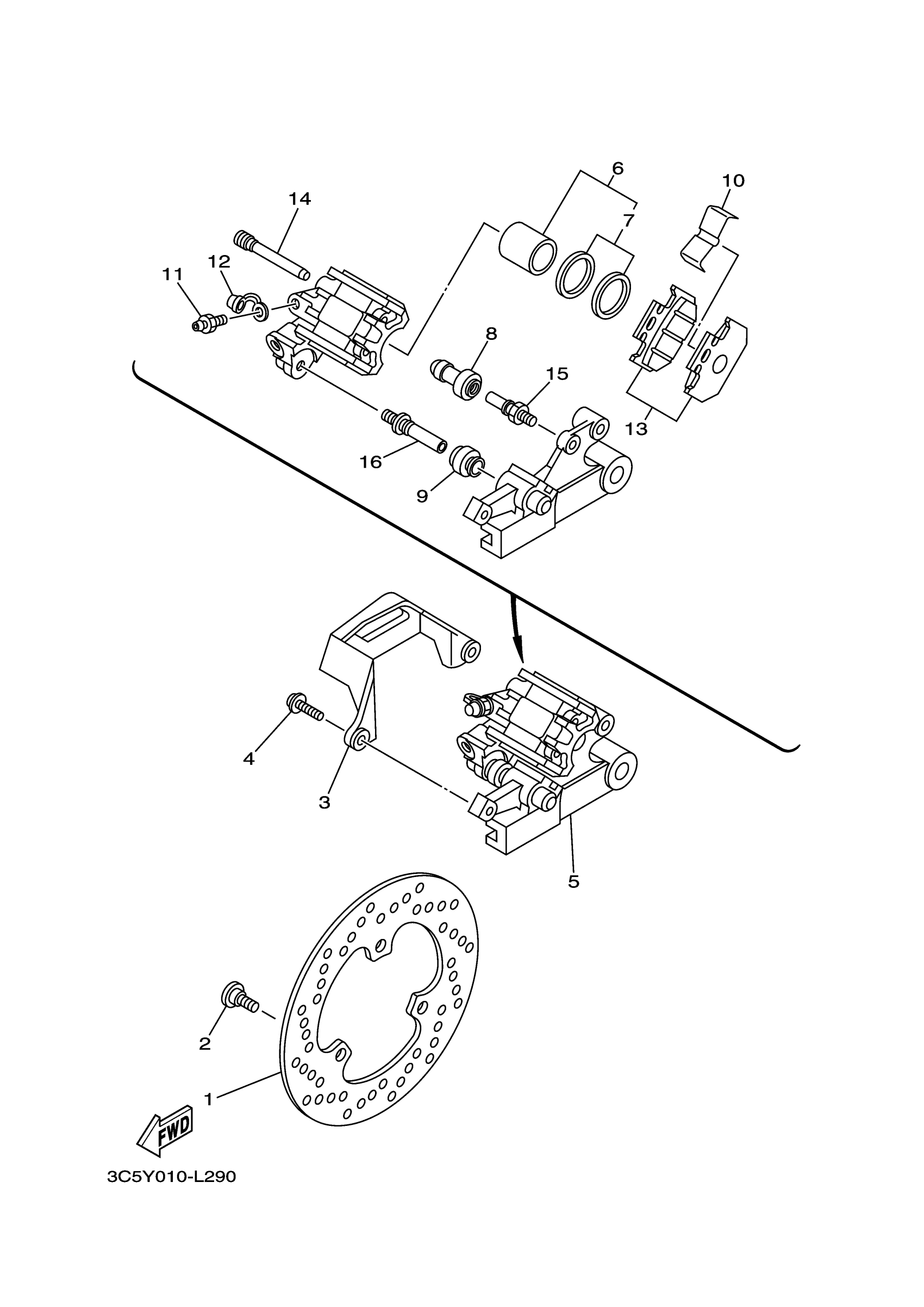

Yamaha XT250EC (XT250 CA) 1YB6 2014 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

5XT-2582W-00-00

$105.99

2

BOLT

90109-08087-00

$8.49

3

PROTECTOR

4GY-27491-00-00

$63.99

4

BOLT, BUTTON

92014-06016-00

$8.49

5

CALIPER ASSY, REAR 2

3C5-2580W-10-00

Unavailable

6

PISTON ASSY, CALIPER

5XT-25802-50-00

$56.99

7

CALIPER SEAL KIT

3JD-25803-50-00

$16.49

8

BOOT 2

1UY-25937-51-00

$14.49

9

BOOT, CALIPER

3JD-25917-00-00

$8.99

10

SUPPORT, PAD

3SP-25919-51-00

Unavailable

11

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

BRAKE PAD KIT 2

3C5-25806-00-00

$42.99

14

PIN, PAD

3FV-25924-00-00

$23.99

15

BOLT

3SP-25914-51-00

$4.58

16

BOLT

3SP-25926-51-00

Unavailable
