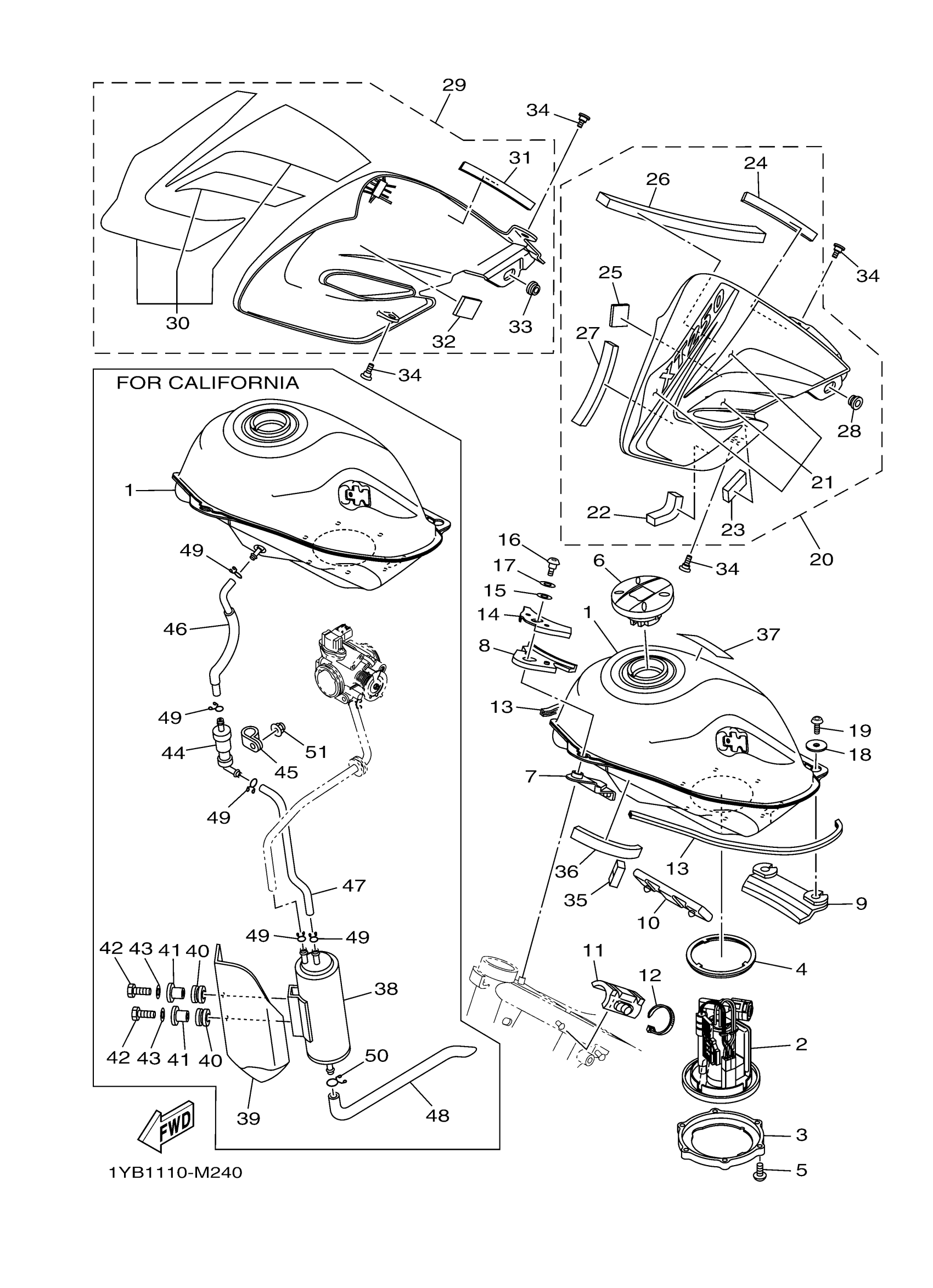

Yamaha XT250EC (XT250 CA) 1YB6 2014 FUEL TANK Diagram
#
3
BRACKET, FUEL PUMP
3D7-24491-00-00
Unavailable
6
CAP ASSY
5VK-24602-20-00
Unavailable
7
DAMPER, LOCATING 1
3C5-24181-10-00
Unavailable
8
DAMPER, LOCATING 3
3C5-24183-00-00
Unavailable
9
DAMPER, LOCATING 2
3C5-24182-10-00
Unavailable
10
DAMPER, LOCATING 5
3C5-24185-10-00
Unavailable
11
DAMPER, LOCATING 4
3C5-24184-10-00
Unavailable
13
MOLD, FUEL TANK
3C5-24188-00-00
Unavailable
14
WASHER, SPECIAL
3C5-24186-00-00
Unavailable
15
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
16
BOLT
90109-06265-00
Unavailable
17
WASHER, PLATE
90202-10003-00
Unavailable
18
WASHER PLATE 248217570000
90201-06074-00
Unavailable
19
SCREW(3XV)
90149-06298-00
Unavailable
20
SCOOP COMP, AIR 1
3C5-Y217W-P0-00
Unavailable
21
GRAPHIC, SCOOP AIR SET 1
3C5-2137C-J0-00
Unavailable
22
SEAL, AIR SHROUD 1
3C5-24125-00-00
Unavailable
23
SEAL, AIR SHROUD 2
3C5-24126-00-00
Unavailable
24
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
25
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
26
DAMPER, PLATE 3
3C5-2414K-00-00
Unavailable
27
DAMPER, PLATE 4
3C5-2414N-00-00
Unavailable
28
GROMMET(4BH)
90480-01559-00
Unavailable
29
SCOOP COMP., AIR 2
3C5-Y217X-P0-00
Unavailable
30
GRAPHIC, SCOOP AIR SET 2
3C5-2137D-J0-00
Unavailable
31
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
32
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
33
GROMMET(4BH)
90480-01559-00
Unavailable
34
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
35
DAMPER, PLATE 5
3C5-2414P-00-00
Unavailable
36
INSULATOR, FUEL TANK 1
3C5-2416F-00-00
Unavailable
37
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
