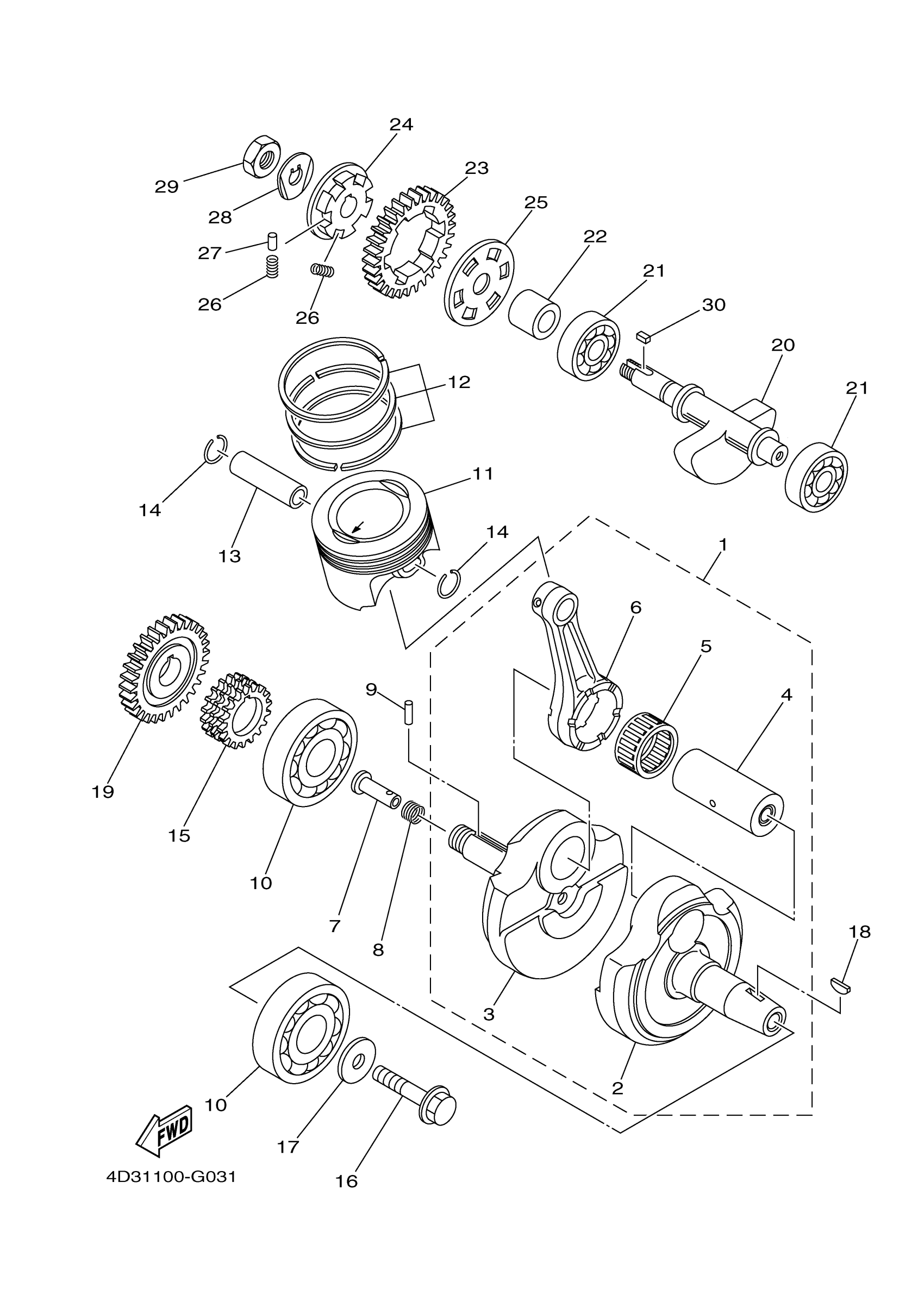

Yamaha XT250EC (XT250 CA) 1YB6 2014 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

4D3-11400-00-00

$517.99

2

CRANK 1

4D3-11412-00-00

Unavailable

3

CRANK 2

4D3-11422-00-00

Unavailable

4

PIN, CRANK 1

1S4-11681-00-00

Unavailable

5

BEARING

93310-63239-00

Unavailable

6

ROD, CONNECTING

1S4-11651-00-00

Unavailable

7

PIN, CLEVIS(30X)

90240-07105-00

$16.99

8

SPRING, COMPRESSION (5H0)

90501-07629-00

$9.49

9

PIN, DOWEL (5H0)

93602-13177-00

$3.76

10

BEARING

93306-37814-00

$88.99

11

PISTON (STD)

1S4-11631-20-A0

$89.99

12

PISTON RING SET (S

4XV-11603-01-00

$42.99

13

PIN, PISTON

4XV-11633-00-00

$28.99

14

CLIP (1J7)

90468-12069-00

$9.49

15

SPROCKET, CAM CHAIN

5BP-11549-00-00

$83.99

16

BOLT, WASHER BASED(1WG)

90105-10430-00

Unavailable

17

WASHER, PLATE (4X7)

90201-105A2-00

Unavailable

18

KEY, WOODRUFF

90280-05001-00

Unavailable

19

GEAR, DRIVE

1S4-11536-10-00

Unavailable

20

WEIGHT 1

5XT-11454-01-00

Unavailable

21

BEARING

93306-30214-00

Unavailable

22

COLLAR

5XT-11478-00-00

Unavailable

23

GEAR, BALANCE WEIGHT

1S4-11531-10-00

Unavailable

24

BOSS, BUFFER

5XT-11496-00-00

Unavailable

25

PLATE, ABSORBER

5XT-11533-00-00

Unavailable

26

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

27

PIN, DOWEL

93605-10090-00

Unavailable

28

WASHER, LOCK(2RH)

90215-12272-00

Unavailable

29

NUT(2RH)

90170-12370-00

Unavailable

30

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable
