Description

Price

1

HANDLEBAR

3C5-26111-00-00

$76.99

2

GRIP (RIGHT)

4GY-26242-00-00

$29.99

3

TUBE, THROTTLE GUIDE

5BE-26243-00-00

$17.49

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP (LEFT)

4GY-26241-00-00

$29.99

6

WASHER

4RR-26129-00-00

$9.99

7

THROTTLE CABLE ASSY

3C5-26302-00-00

Unavailable

8

CAP, GRIP UPPER

3LN-26281-01-00

Unavailable

9

CAP, GRIP LOWER

3LN-26282-01-00

$31.99

10

SCREW, PAN HEAD

98517-05020-00

$4.25

11

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

12

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

13

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

14

HOLDER, BRAKE HOSE

3C5-25886-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

CLAMP

90464-16012-00

Unavailable

17

CABLE, STARTER 1

5XT-26331-01-00

Unavailable

18

CABLE, CLUTCH

3C5-26335-00-00

Unavailable

19

BOOT, WIRE

1E6-26342-00-00

Unavailable

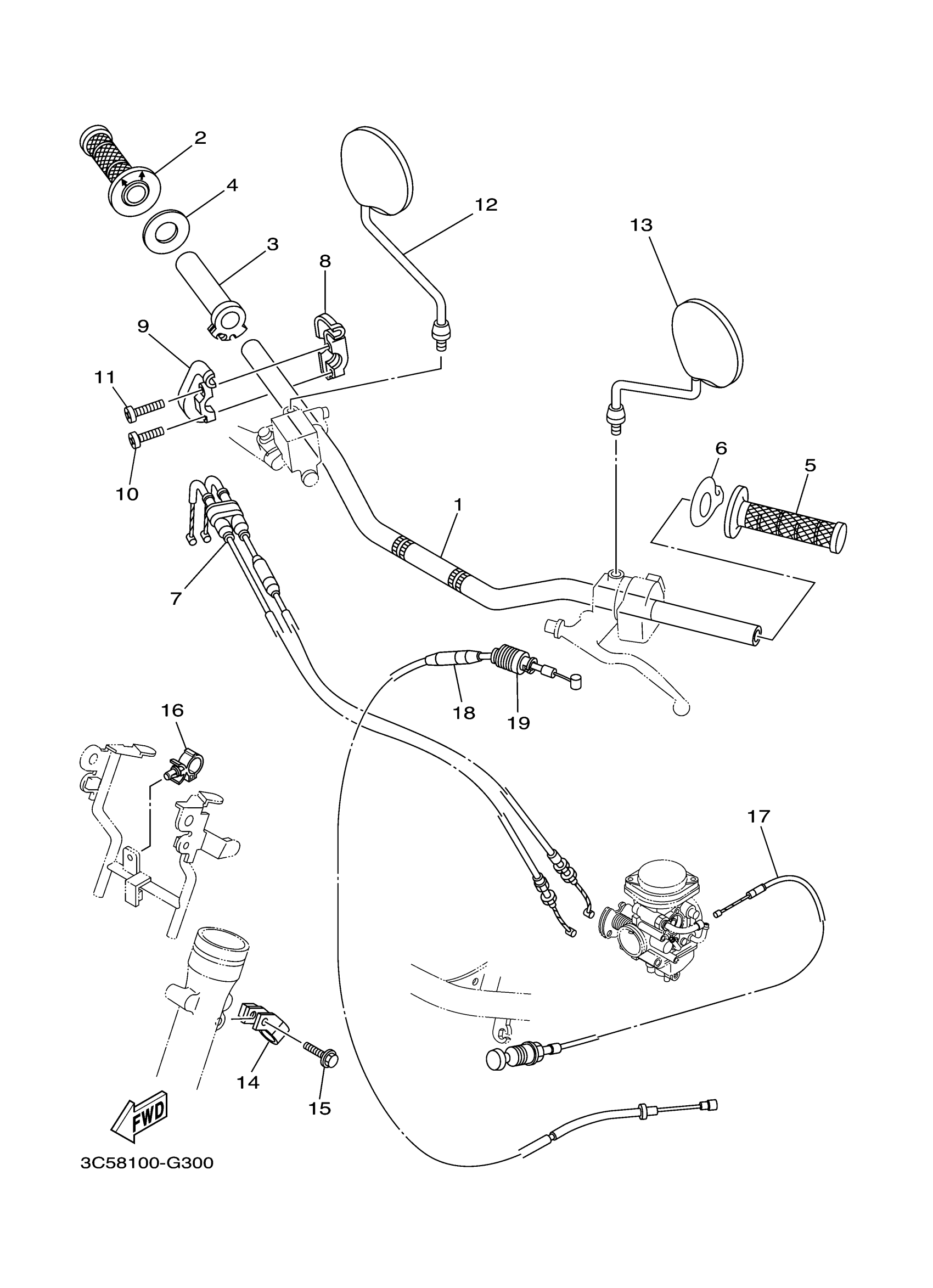

Yamaha XT250BC (XT250 CA) 3C5V 2012 STEERING HANDLE CABLE Diagram

HANDLEBAR

GRIP (RIGHT)

TUBE, THROTTLE GUIDE

RING, LEAF

GRIP (LEFT)

WASHER

THROTTLE CABLE ASSY

CAP, GRIP UPPER

CAP, GRIP LOWER

SCREW, PAN HEAD

SCREW, PAN HEAD(4MY)

REAR VIEW MIRROR ASSY(RIGHT)

MIRROR ASSY., 2

HOLDER, BRAKE HOSE

BOLT, SMALL FLANGE

CLAMP

CABLE, STARTER 1

CABLE, CLUTCH

BOOT, WIRE
