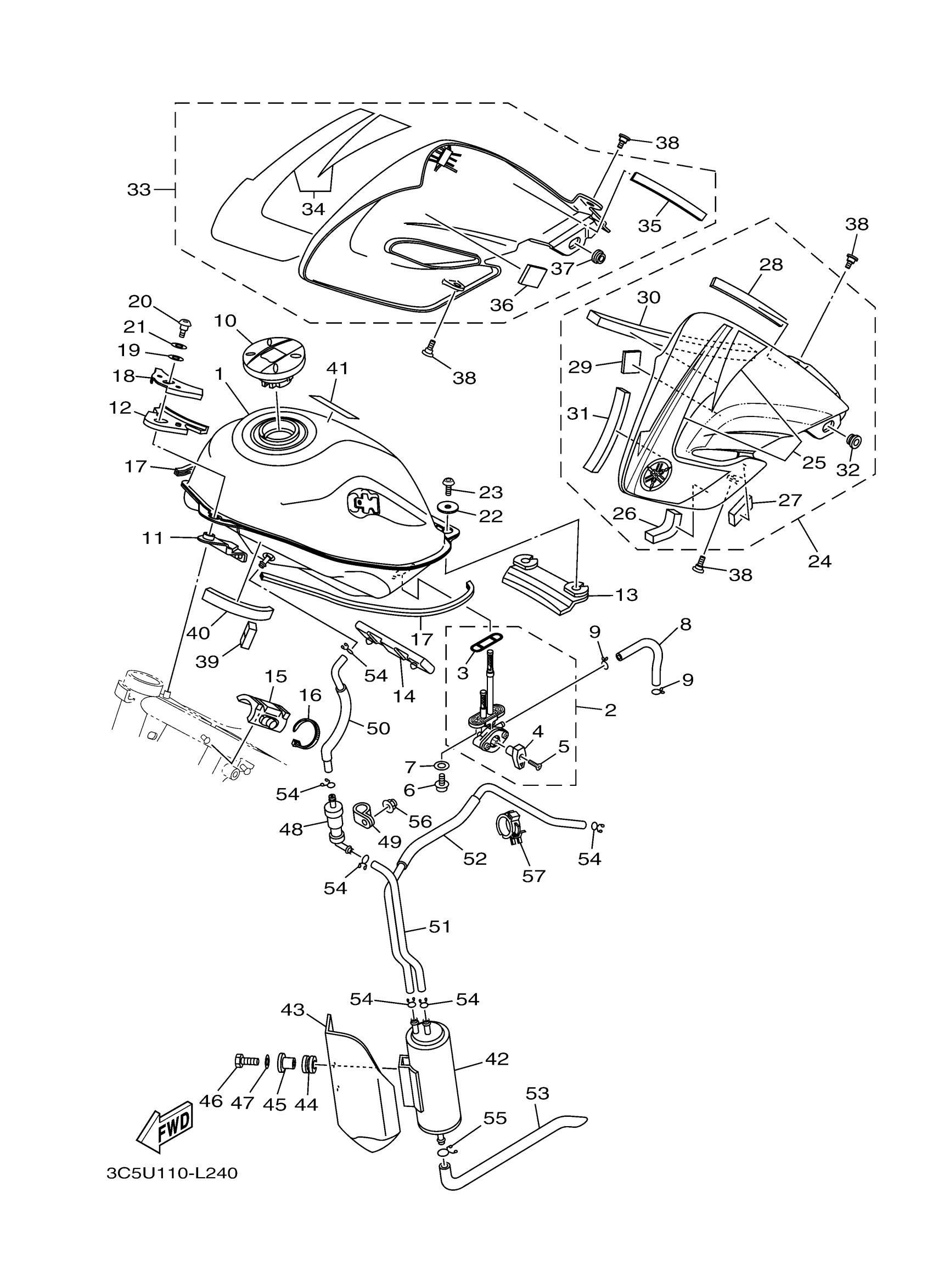

Yamaha XT250BC (XT250 CA) 3C5V 2012 FUEL TANK Diagram
#
1
FUEL TANK COMP.
3C5-24110-10-P0
Unavailable
2
FUEL COCK ASSY 1
3C5-24500-10-00
Unavailable
3
GASKET
3C5-24512-00-00
Unavailable
4
LEVER, COCK
3C5-24524-00-00
Unavailable
8
HOSE
90445-10829-00
Unavailable
10
CAP ASSY
5VK-24602-20-00
Unavailable
11
DAMPER, LOCATING 1
3C5-24181-10-00
Unavailable
12
DAMPER, LOCATING 3
3C5-24183-00-00
Unavailable
13
DAMPER, LOCATING 2
3C5-24182-10-00
Unavailable
14
DAMPER, LOCATING 5
3C5-24185-10-00
Unavailable
15
DAMPER, LOCATING 4
3C5-24184-10-00
Unavailable
16
BAND
1UA-82591-00-00
Unavailable
17
MOLD, FUEL TANK
3C5-24188-00-00
Unavailable
18
WASHER, SPECIAL
3C5-24186-00-00
Unavailable
19
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
20
BOLT
90109-06265-00
Unavailable
21
WASHER, PLATE
90202-10003-00
Unavailable
22
WASHER PLATE 248217570000
90201-06074-00
Unavailable
23
SCREW(3XV)
90149-06298-00
Unavailable
24
SCOOP COMP, AIR 1
3C5-Y217W-F0-00
Unavailable
25
GRAPHIC, SCOOP AIR SET 1
3C5-2137C-B0-00
Unavailable
26
SEAL, AIR SHROUD 1
3C5-24125-00-00
Unavailable
27
SEAL, AIR SHROUD 2
3C5-24126-00-00
Unavailable
28
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
29
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
30
DAMPER, PLATE 3
3C5-2414K-00-00
Unavailable
31
DAMPER, PLATE 4
3C5-2414N-00-00
Unavailable
32
GROMMET(4BH)
90480-01559-00
Unavailable
33
SCOOP COMP., AIR 2
3C5-Y217X-F0-00
Unavailable
34
GRAPHIC, SCOOP AIR SET 2
3C5-2137D-B0-00
Unavailable
35
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
36
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
37
GROMMET(4BH)
90480-01559-00
Unavailable
38
BOLT
90111-05011-00
Unavailable
39
DAMPER, PLATE 5
3C5-2414P-00-00
Unavailable
40
INSULATOR, FUEL TANK 1
3C5-2416F-00-00
Unavailable
41
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
