2012 Yamaha XT250 CA (XT250BC) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 2012 Yamaha XT250 CA (XT250BC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

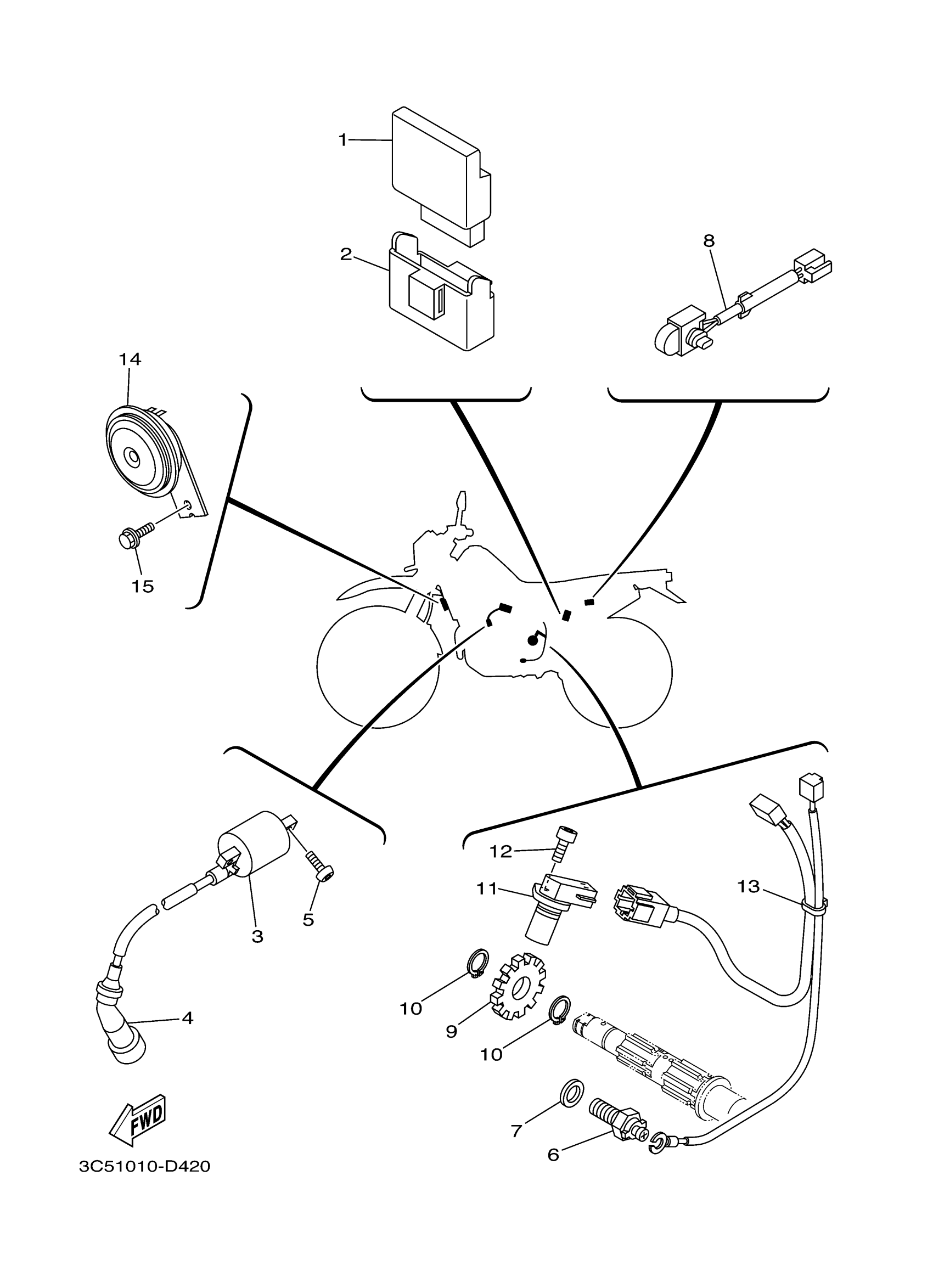

2012 Yamaha XT250 CA (XT250BC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

3C5-85540-10-00

1
Out of stock

2

BAND

5XT-85546-00-00

—
Out of stock

3

IGNITION COIL ASSY

3KJ-82310-13-00

1
Out of stock

4

PLUG CAP ASSY

3NS-82370-00-00

1

$31.58

In stock

5

BOLT

90111-06017-00

1
Out of stock

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

7

GASKET (1KH,1.0T)

90430-10148-00

1

$4.74

In stock

8

THERMO SWITCH ASSY

5XT-82560-00-00

—
Out of stock

9

ROTOR

3C5-8354W-00-00

1

$88.57

In stock

10

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

11

SENSOR, SPEED

1S4-83755-01-00

—

$98.75

In stock

12

BOLT (33M)

91312-06014-00

1

$4.74

In stock

13

WIRE, SUB LEAD

3C5-82309-00-00

1

$38.35

In stock

14

HORN

3C5-83371-00-00

—

$49.02

In stock

15

BOLT, FLANGE

95817-06010-00

1

$3.91

In stock
