- XT250BC (XT250 CA) 3C5V 2012
ELECTRICAL 1

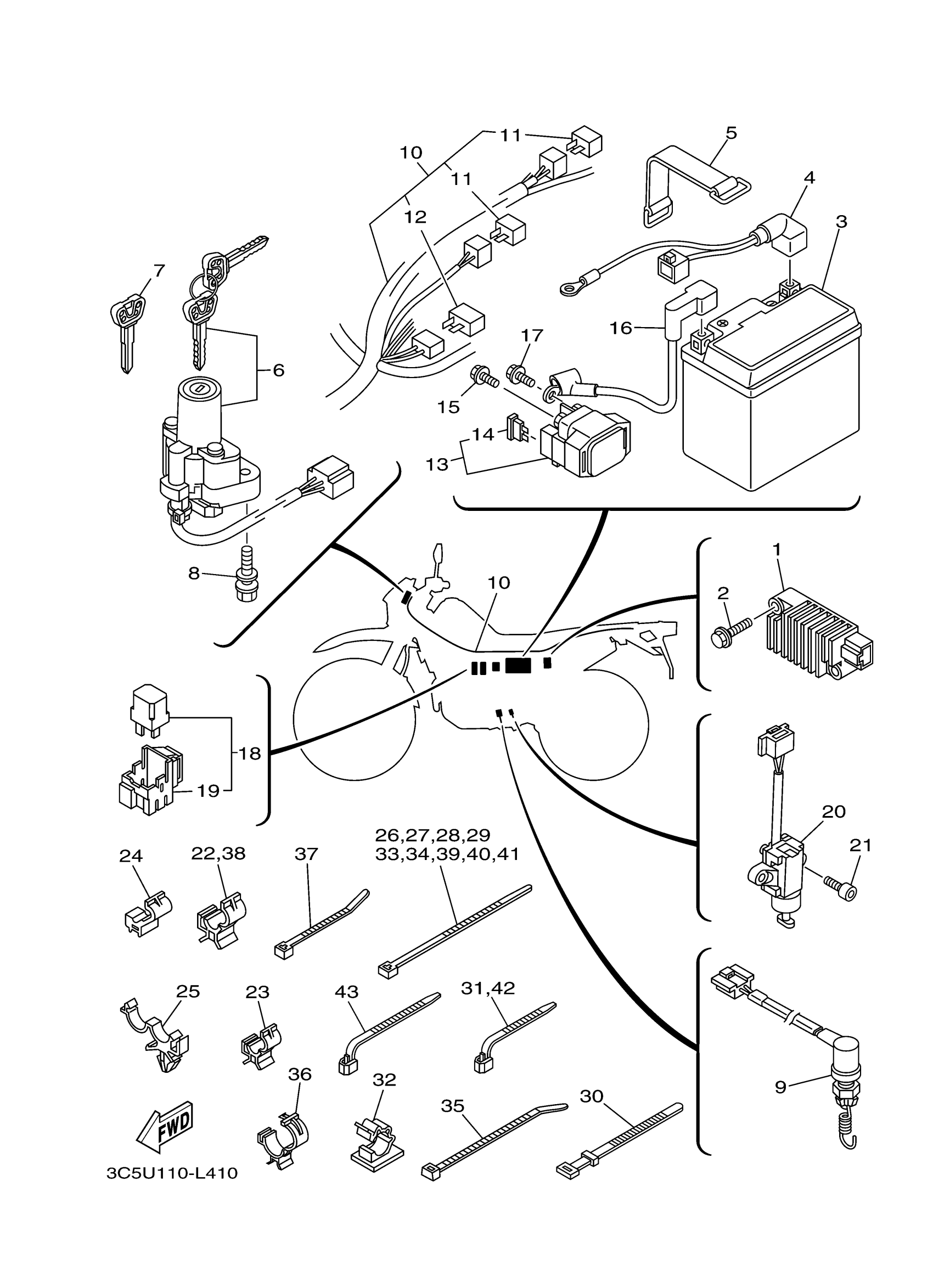

2012 Yamaha XT250 CA (XT250BC) Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 2012 Yamaha XT250 CA (XT250BC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
4
WIRE, MINUS LEAD
5XT-82116-00-00
6
MAIN SWITCH STEERING LOCK
3C5-82501-01-00
10
WIRE HARNESS ASSY
3C5-82590-40-00
13
STARTER RELAY ASSY (RC19-048)
5XT-81940-02-00
14
FUSE (20A)
2GV-82151-00-00
16
WIRE, PLUS LEAD
5XT-82115-00-00
18
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
20
SWITCH, SIDE STAND
5XT-82566-01-00
23
CLAMP
90464-17007-00
24
CLAMP(4GY)
90464-05188-00
26
BAND
1UA-82591-00-00
27
BAND
1UA-82591-00-00
28
BAND
1UA-82591-00-00
29
BAND
1UA-82591-00-00
33
BAND
1UA-82591-00-00
34
BAND
1UA-82591-00-00
39
BAND
1UA-82591-00-00
40
BAND
1UA-82591-00-00
41
BAND
1UA-82591-00-00
