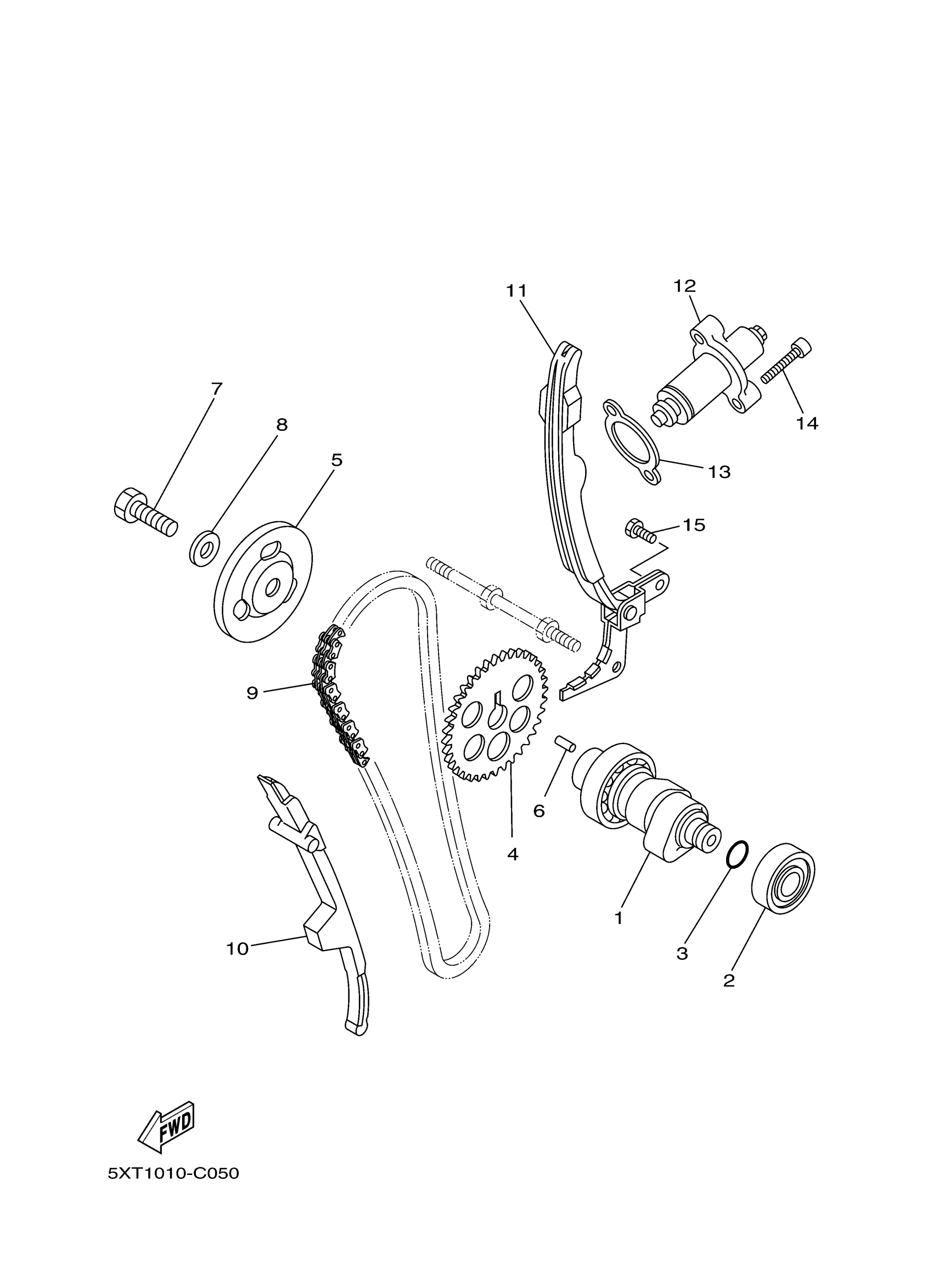

Yamaha XT250BC (XT250 CA) 3C5V 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5XT-12170-00-00

Unavailable

2

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

3

O-RING (4G0)

93210-11453-00

$7.49

4

SPROCKET, CAM CHAIN

5XT-12176-00-00

$47.99

5

PLATE, BREATHER 2

4KB-11145-00-00

$11.99

6

PIN,DOWEL (603)

93604-10011-00

$8.49

7

BOLT

90101-10016-00

$4.14

8

WASHER, PLATE (3L6)

90201-10774-00

$9.49

9

CHAIN

94582-19104-00

$17.49

10

GUIDE, STOPPER 1

5BP-12231-01-00

$63.99

11

GUIDE, STOPPER 2

5XT-12241-02-00

$41.99

12

TENSIONER ASSY, CAM CHAIN

5XT-12210-00-00

$83.99

13

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

14

BOLT,SOCKET HEAD

91314-06025-00

$8.49

15

BOLT

97012-06014-00

$7.49
