2011 Yamaha XT250 CA (XT250AC) Steering Handle Cable Diagram

← All diagrams

Find the part on the Steering Handle Cable diagram for your 2011 Yamaha XT250 CA (XT250AC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

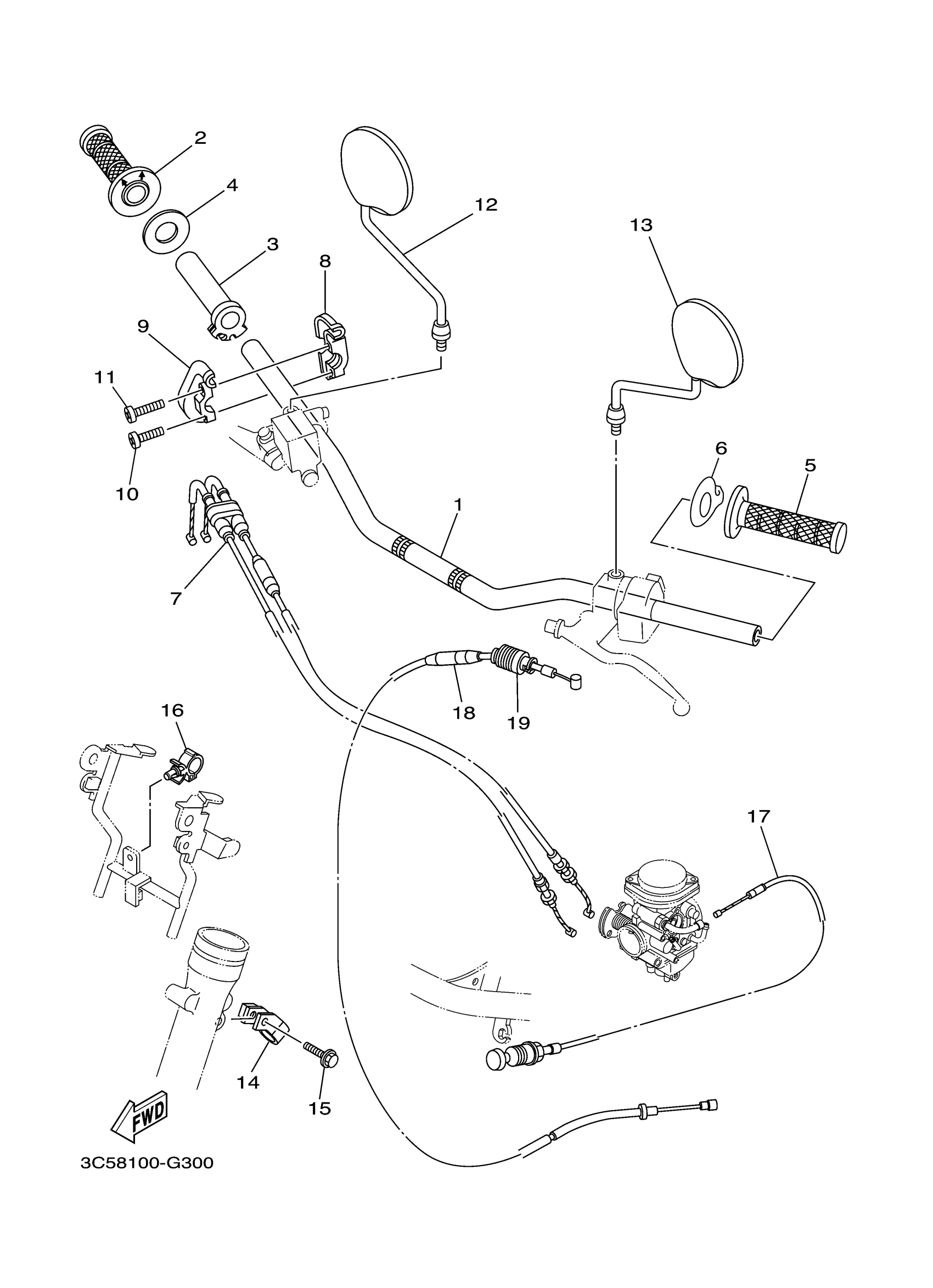

2011 Yamaha XT250 CA (XT250AC) Steering Handle Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3C5-26111-00-00

1

$70.26

In stock

2

GRIP (RIGHT)

4GY-26242-00-00

1

$25.66

In stock

3

TUBE, THROTTLE GUIDE

5BE-26243-00-00

1

$15.04

In stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP (LEFT)

4GY-26241-00-00

1

$25.66

In stock

6

WASHER

4RR-26129-00-00

1

$8.57

In stock

7

THROTTLE CABLE ASSY

3C5-26302-00-00

—
Out of stock

8

CAP, GRIP UPPER

3LN-26281-01-00

—

$30.20

In stock

9

CAP, GRIP LOWER

3LN-26282-01-00

1

$26.80

In stock

10

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

11

SCREW, PAN HEAD(4MY)

98507-05025-00

1

$6.18

In stock

12

1

$45.60

In stock

13

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

14

HOLDER, BRAKE HOSE

3C5-25886-00-00

—

$3.77

In stock

15

BOLT, SMALL FLANGE

95027-06025-00

1

$3.18

In stock

16

CLAMP

90464-16012-00

—

$5.43

In stock

17

CABLE, STARTER 1

5XT-26331-01-00

—
Out of stock

18

CABLE, CLUTCH

3C5-26335-00-00

—

$36.14

In stock

19

BOOT, WIRE

1E6-26342-00-00

—

$26.82

In stock
