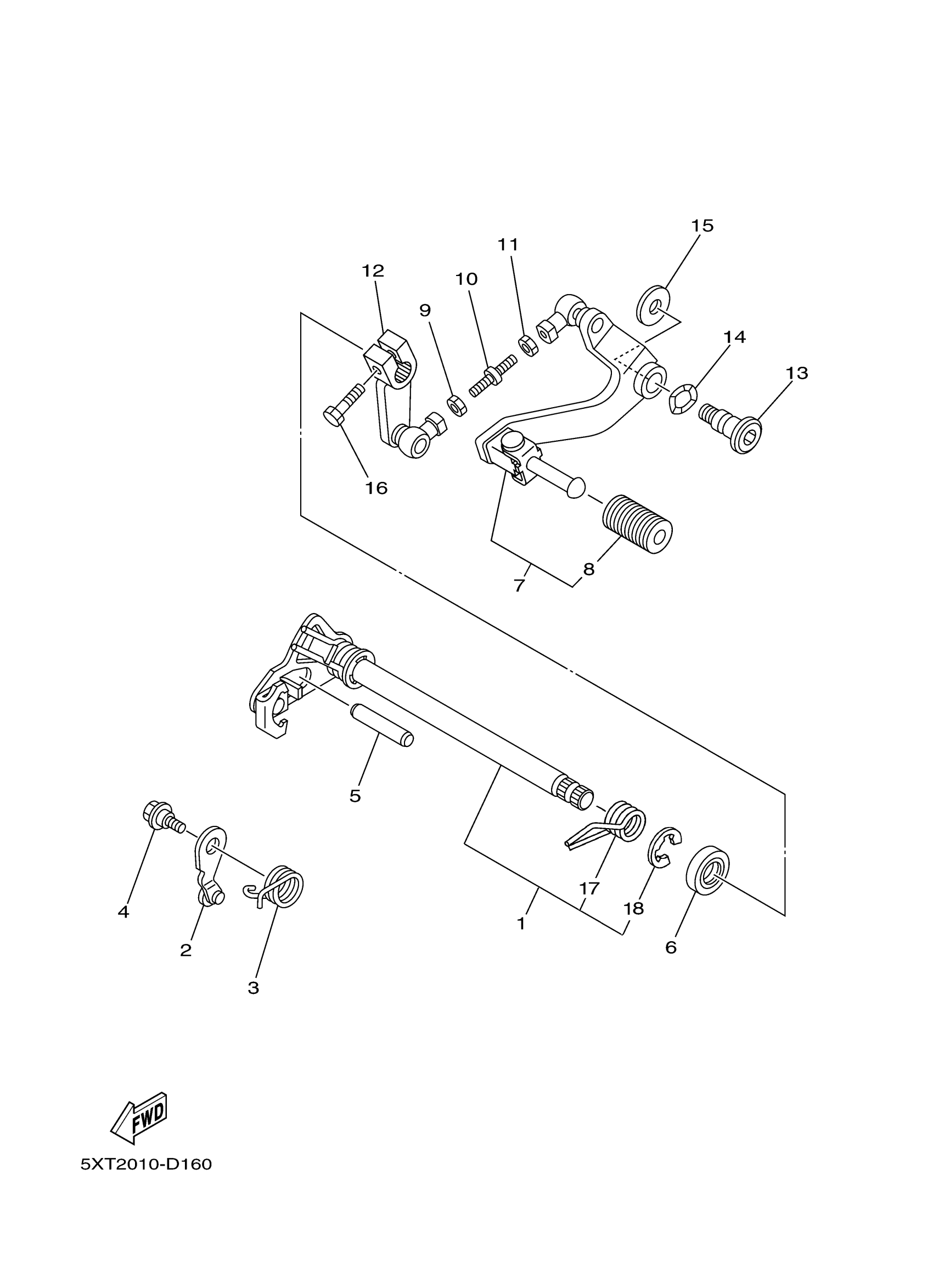

Yamaha XT250AC (XT250 CA) 3C5P 2011 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

5XT-18101-03-00

$85.99

2

STOPPER LEVER ASSY

4TP-18140-00-00

Unavailable

3

SPRING, TORSION

90508-26020-00

Unavailable

4

BOLT

90109-06190-00

$4.72

5

PIN, DOWEL(4GY)

93608-43228-00

$4.94

6

OIL SEAL (3Y1)

93102-14209-00

$11.49

7

SHIFT PEDAL ASSY

5XT-18110-20-00

Unavailable

8

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

9

NUT(JN5)

95317-06700-00

$8.49

10

ROD, SHIFT

5XT-18115-10-00

Unavailable

11

NUT

90170-06022-00

$3.40

12

ARM, SHIFT

5XT-18112-10-00

$56.99

13

BOLT

5XT-27434-10-00

$12.99

14

WASHER, WAVE (17W)

90206-12074-00

$9.49

15

WASHER, PLATE (3L7)

90201-08784-00

$3.23

16

BOLT, HEXAGON

97017-06020-00

Unavailable

17

SPRING, TORSION

90508-32139-00

Unavailable

18

. CIRCLIP

99001-12600-00

Unavailable
