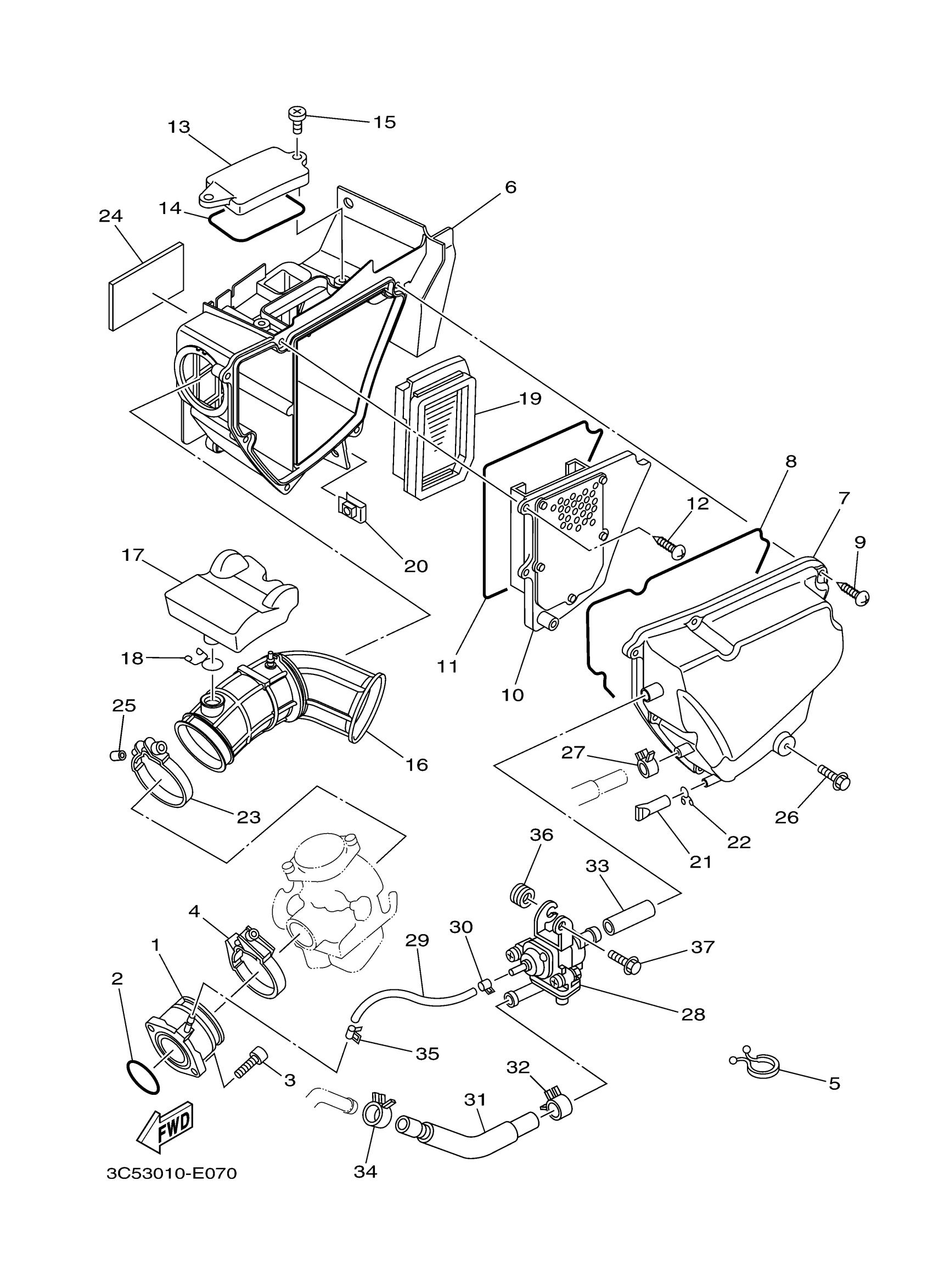

Yamaha XT250AC (XT250 CA) 3C5P 2011 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5XT-13586-00-00

Unavailable

2

O-RING (16G)

93210-35537-00

$14.49

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

HOSE CLAMP ASSY

90450-47002-00

$8.49

5

CLAMP

90464-25267-00

$7.49

6

AIR CLEANER CASE ASSY

5XT-14401-21-00

Unavailable

7

CASE, AIR CLEANER 2

5XT-14421-02-00

Unavailable

8

SEAL

1VJ-14462-00-00

$18.49

9

SCREW, TRUSS TAP.

97707-50025-00

$8.49

10

PLATE, ELEMENT

5XT-14472-01-00

Unavailable

11

SEAL

51Y-14462-00-00

$18.49

12

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

13

CAP, CLEANER CASE 1

5XT-14412-01-00

$7.99

14

SEAL

5XT-14457-00-00

$5.49

15

SCREW, BINDING

98907-06012-00

$9.49

16

JOINT AIR CLEANER 1

5XT-14453-01-00

Unavailable

17

CHAMBER, AIR

5XT-13581-00-00

Unavailable

18

CLIP

90467-18196-00

Unavailable

19

ELEMENT, AIR CLEANER

5XT-14451-00-00

Unavailable

20

NUT, SPRING (26H)

90183-06023-00

Unavailable

21

PIPE, DRAIN

5XT-1443E-00-00

Unavailable

22

CLIP(1JH)

90467-11106-00

Unavailable

23

HOSE CLAMP ASSY

90450-56001-00

Unavailable

24

DAMPER, PLATE 1

5EJ-2414H-00-00

Unavailable

25

HOSE (L200)

90445-05N13-00

Unavailable

26

BOLT, FLANGE

95817-06010-00

Unavailable

27

CLIP (7K7)

90467-11044-00

Unavailable

28

AIR INDUCTION SYSTEM ASSY

5C1-14803-00-00

Unavailable

29

HOSE, VACUUM SENSING 1

5XT-13542-00-00

Unavailable

30

CLIP(41W)

90467-08092-00

Unavailable

31

HOSE, BEND 1

5C1-14881-00-00

Unavailable

32

CLIP(3YX)

90467-13133-00

Unavailable

33

HOSE, BEND 2

5C1-14882-01-00

Unavailable

34

CLIP (5K4)

90467-14057-00

Unavailable

35

CLIP(41W)

90467-08092-00

Unavailable

36

GROMMET (17J)

90480-10334-00

Unavailable

37

BOLT, FLANGE

95812-06010-00

Unavailable
