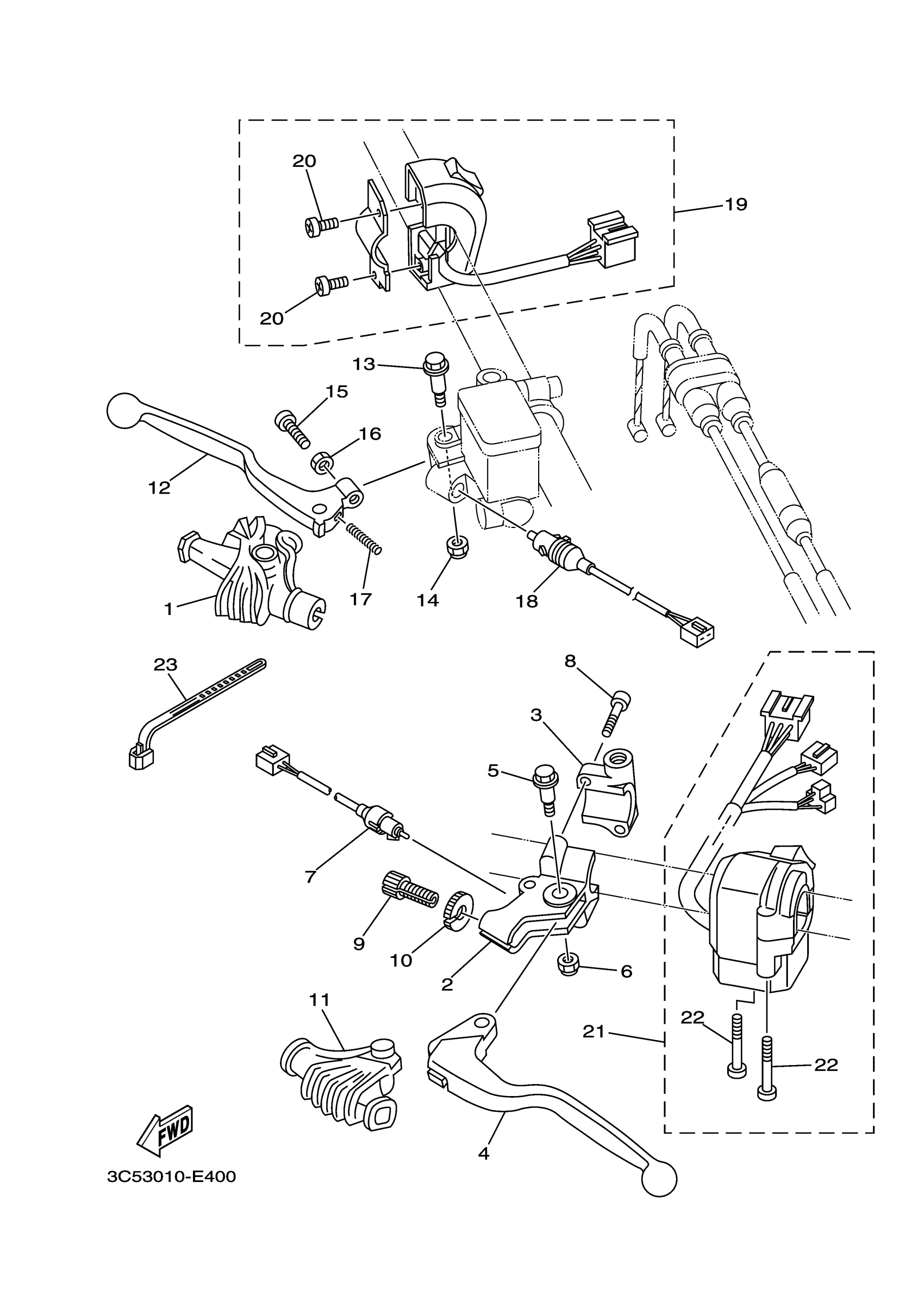

Yamaha XT250AC (XT250 CA) 3C5P 2011 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

2

HOLDER, LEVER 1

5XT-82911-00-00

$33.99

3

HOLDER, LEVER LOWER 1

33G-82913-01-00

$19.99

4

LEVER 1

23X-83912-02-00

$27.99

5

BOLT (2YK1)

90109-06799-00

$4.99

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SWITCH

3C5-82917-00-00

$41.99

8

BOLT, SOCKET

91317-05020-00

$3.28

9

BOLT

90123-08002-00

$10.49

10

NUT

90179-08030-00

$5.49

11

COVER, LEVER

1E6-26372-00-00

$23.99

12

LEVER 2

55Y-83922-02-00

$37.99

13

BOLT (4L0)

90109-06577-00

$5.60

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SCREW (2L0)

90149-06131-00

$8.49

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

18

FRONT STOP SWITCH ASSY

3C5-83980-00-00

Unavailable

19

SWITCH, HANDLE 2

3C5-83975-11-00

Unavailable

20

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

21

SWITCH, HANDLE 3

3C5-83973-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05030-00

Unavailable

23

CLAMP

90464-25004-00

Unavailable
