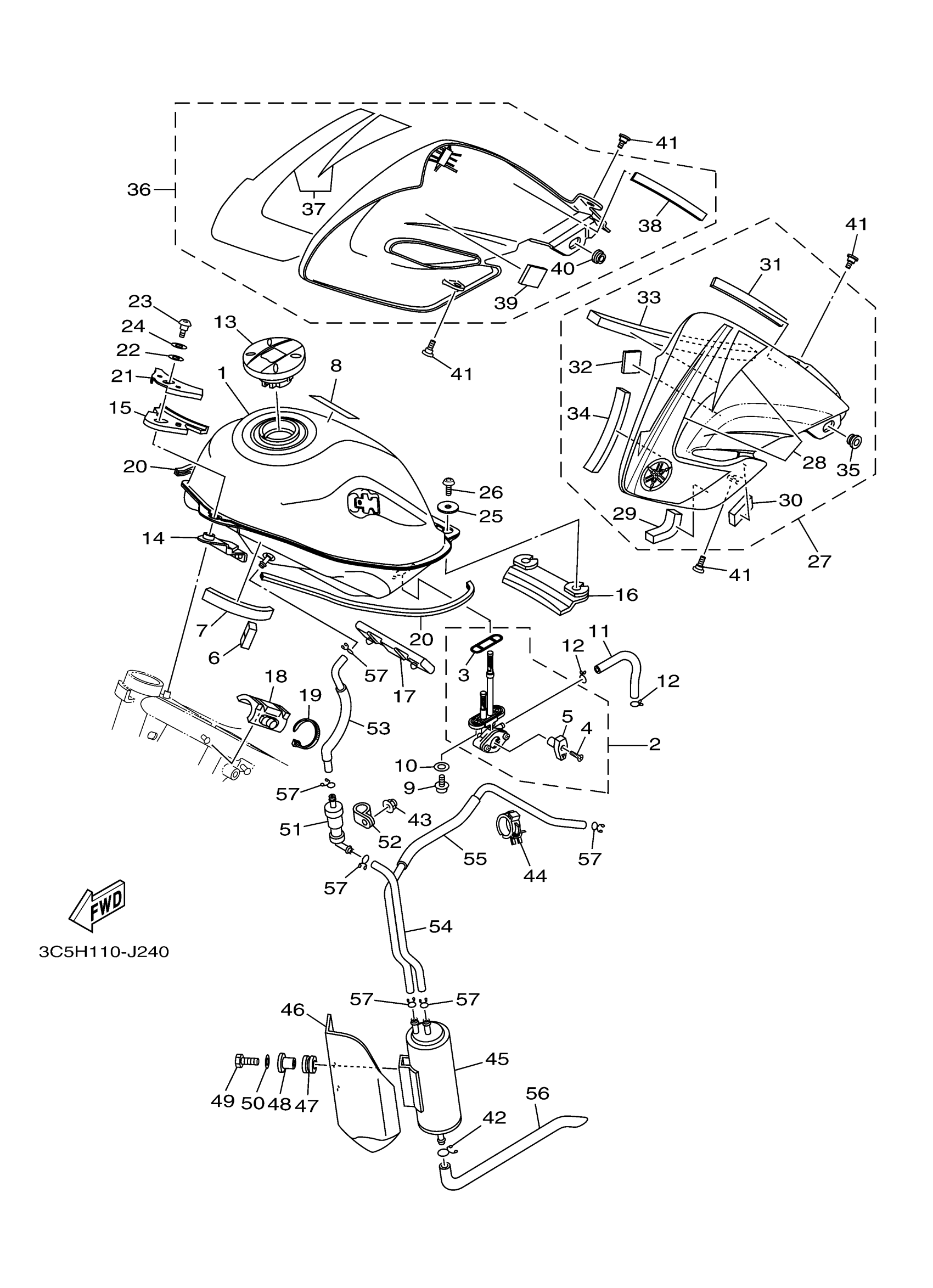

Yamaha XT250AC (XT250 CA) 3C5P 2011 FUEL TANK Diagram
#
1
FUEL TANK COMP.
3C5-24110-10-P0
Unavailable
2
FUEL COCK ASSY 1
3C5-24500-00-00
Unavailable
5
LEVER, COCK
3C5-24524-00-00
Unavailable
6
DAMPER, PLATE 5
3C5-2414P-00-00
Unavailable
7
INSULATOR, FUEL TANK 1
3C5-2416F-00-00
Unavailable
11
HOSE
90445-10829-00
Unavailable
13
CAP ASSY
5VK-24602-20-00
Unavailable
14
DAMPER, LOCATING 1
3C5-24181-10-00
Unavailable
15
DAMPER, LOCATING 3
3C5-24183-00-00
Unavailable
16
DAMPER, LOCATING 2
3C5-24182-10-00
Unavailable
17
DAMPER, LOCATING 5
3C5-24185-10-00
Unavailable
18
DAMPER, LOCATING 4
3C5-24184-10-00
Unavailable
19
BAND
1UA-82591-00-00
Unavailable
20
MOLD, FUEL TANK
3C5-24188-00-00
Unavailable
21
WASHER, SPECIAL
3C5-24186-00-00
Unavailable
22
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
23
BOLT
90109-06265-00
Unavailable
24
WASHER, PLATE
90202-10003-00
Unavailable
25
WASHER PLATE 248217570000
90201-06074-00
Unavailable
26
SCREW(3XV)
90149-06298-00
Unavailable
27
SCOOP COMP, AIR 1
3C5-Y217W-G0-00
Unavailable
28
GRAPHIC, SCOOP AIR SET 1
3C5-2137C-C0-00
Unavailable
29
SEAL, AIR SHROUD 1
3C5-24125-00-00
Unavailable
30
SEAL, AIR SHROUD 2
3C5-24126-00-00
Unavailable
31
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
32
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
33
DAMPER, PLATE 3
3C5-2414K-00-00
Unavailable
34
DAMPER, PLATE 4
3C5-2414N-00-00
Unavailable
35
GROMMET(4BH)
90480-01559-00
Unavailable
36
SCOOP COMP., AIR 2
3C5-Y217X-G0-00
Unavailable
37
GRAPHIC, SCOOP AIR SET 2
3C5-2137D-C0-00
Unavailable
38
DAMPER, PLATE 1
3C5-2414H-00-00
Unavailable
39
DAMPER, PLATE 2
3C5-2414J-00-00
Unavailable
40
GROMMET(4BH)
90480-01559-00
Unavailable
41
BOLT
90111-05011-00
Unavailable
