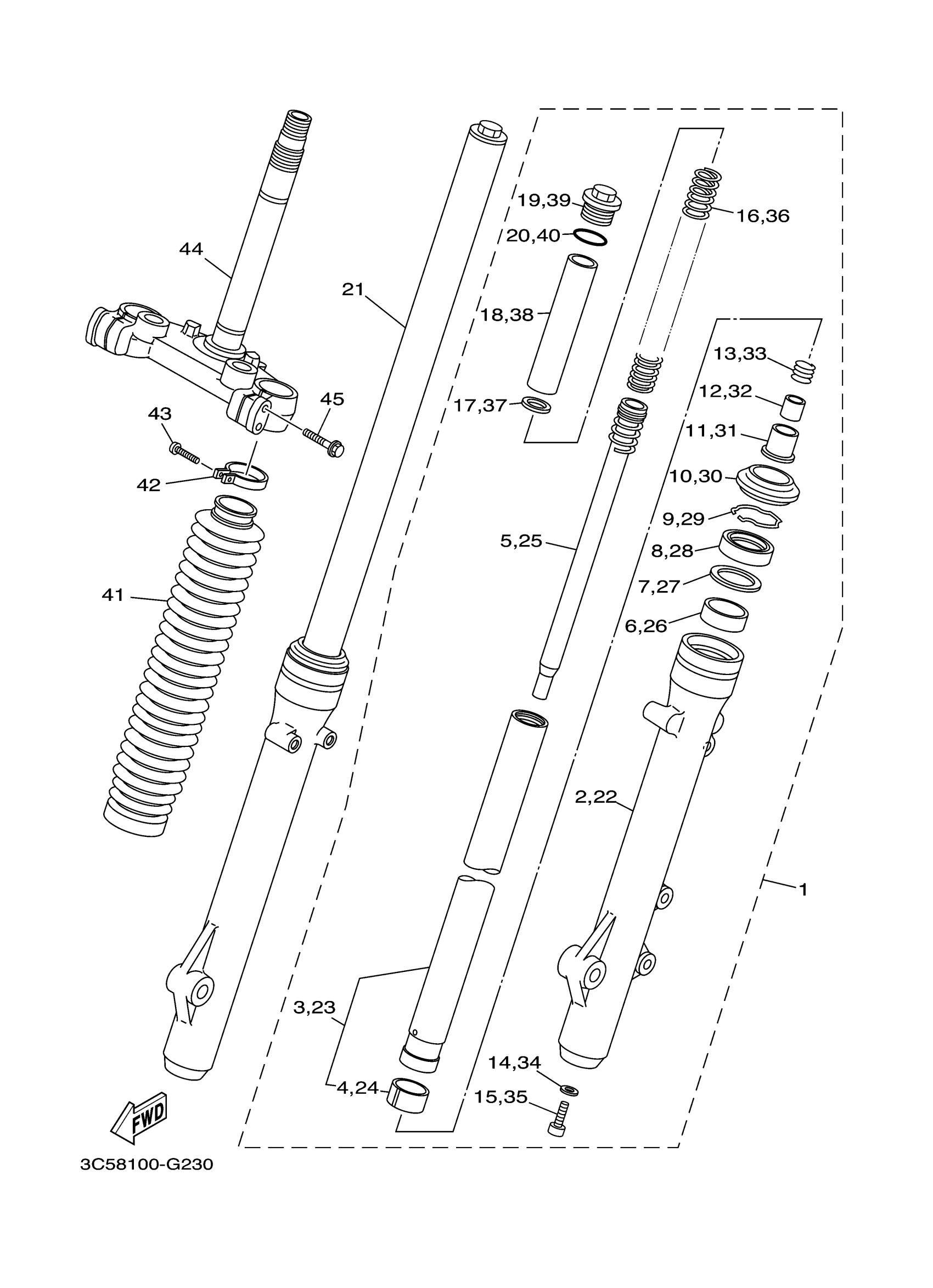

Yamaha XT250AC (XT250 CA) 3C5P 2011 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
3C5-23102-20-00
Unavailable
2
TUBE, OUTER (LEFT)
3C5-23126-10-00
Unavailable
3
INNER TUBE COMP.1
3C5-23110-00-00
Unavailable
5
CYLINDER COMP., FRONT FORK
3C5-23170-00-00
Unavailable
11
SPINDLE, TAPER
5XT-23173-00-00
Unavailable
12
COLLAR 1
5XT-23363-00-00
Unavailable
16
SPRING, FRONT FORK
3C5-23141-00-00
Unavailable
17
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
18
SPACER
3C5-23118-00-00
Unavailable
19
BOLT, CAP
5JX-23111-00-00
Unavailable
20
GASKET
240-23114-00-00
Unavailable
21
FRONT FORK ASSY (R.H)
3C5-23103-20-00
Unavailable
22
TUBE, OUTER (RIGHT)
3C5-23136-10-00
Unavailable
23
INNER TUBE COMP.1
3C5-23110-00-00
Unavailable
25
CYLINDER COMP., FRONT FORK
3C5-23170-00-00
Unavailable
31
SPINDLE, TAPER
5XT-23173-00-00
Unavailable
32
COLLAR 1
5XT-23363-00-00
Unavailable
36
SPRING, FRONT FORK
3C5-23141-00-00
Unavailable
37
WASHER, SPRING UPPER
4FY-23149-00-00
Unavailable
38
SPACER
3C5-23118-00-00
Unavailable
39
BOLT, CAP
5JX-23111-00-00
Unavailable
40
GASKET
240-23114-00-00
Unavailable
41
BOOT
3C5-23191-10-00
Unavailable
42
BAND
3C5-23192-00-00
Unavailable
43
SCREW, PAN HEAD
98507-04018-00
Unavailable
44
UNDER BRACKET COMP.
3C5-23340-10-00
Unavailable
45
BOLT 1
5RS-23346-00-00
Unavailable
