- XT250AC (XT250 CA) 3C5P 2011
ELECTRICAL 1

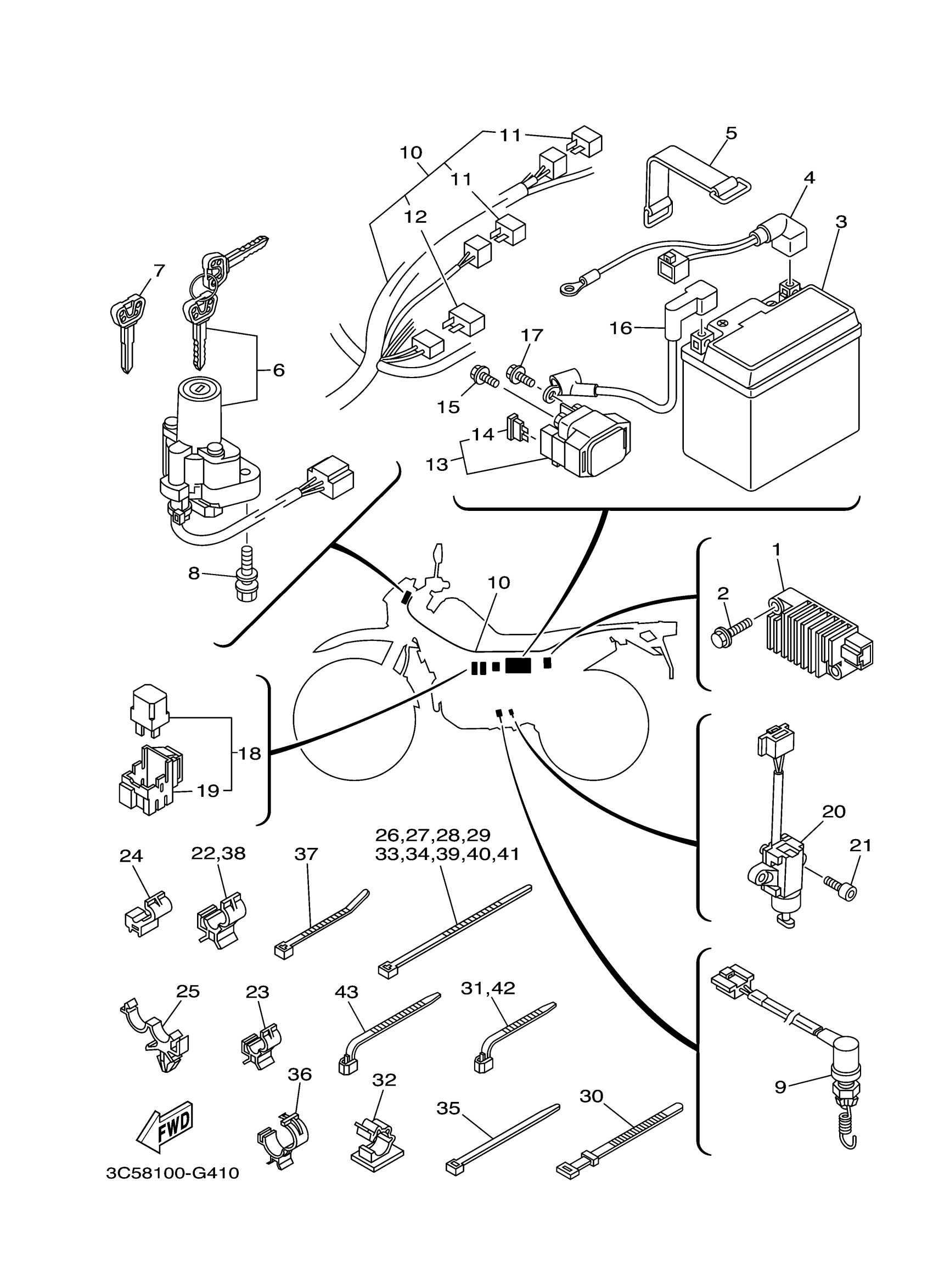

Yamaha XT250AC (XT250 CA) 3C5P 2011 ELECTRICAL 1 Diagram
#
1
RECTIFIER & REGULATOR ASSY
3TJ-81960-02-00
Unavailable
3
YTZ7S HE YUASA BATTERY - FA
YTZ-7SHE0-00-00
Unavailable
4
WIRE, MINUS LEAD
5XT-82116-00-00
Unavailable
6
MAIN SWITCH STEERING LOCK
3C5-82501-01-00
Unavailable
9
STOP SWITCH ASSY
5C1-82530-01-00
Unavailable
10
WIRE HARNESS ASSY
3C5-82590-40-00
Unavailable
13
STARTER RELAY ASSY (RC19-048)
5XT-81940-02-00
Unavailable
16
WIRE, PLUS LEAD
5XT-82115-00-00
Unavailable
18
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
Unavailable
19
HOLDER, RELAY
5JJ-81952-00-00
Unavailable
20
SWITCH, SIDE STAND
5XT-82566-01-00
Unavailable
21
BOLT,SOCKET
91317-05014-00
Unavailable
22
CLAMP(4GY)
90464-10190-00
Unavailable
23
CLAMP
90464-17007-00
Unavailable
24
CLAMP(4GY)
90464-05188-00
Unavailable
25
CLAMP
90464-16006-00
Unavailable
26
BAND
1UA-82591-00-00
Unavailable
27
BAND
1UA-82591-00-00
Unavailable
28
BAND
1UA-82591-00-00
Unavailable
29
BAND
1UA-82591-00-00
Unavailable
30
BAND, SWITCH CORD
437-83936-11-00
Unavailable
31
CLAMP
90464-13077-00
Unavailable
32
CLAMP(4FM)
90464-13185-00
Unavailable
33
BAND
1UA-82591-00-00
Unavailable
34
BAND
1UA-82591-00-00
Unavailable
35
CLAMP
5Y9-12491-00-00
Unavailable
36
CLAMP(4GY)
90464-20191-00
Unavailable
37
CLAMP
90465-10098-00
Unavailable
38
CLAMP(4GY)
90464-10190-00
Unavailable
39
BAND
1UA-82591-00-00
Unavailable
40
BAND
1UA-82591-00-00
Unavailable
41
BAND
1UA-82591-00-00
Unavailable
42
CLAMP
90464-13077-00
Unavailable
43
CLAMP(4FM)
90464-15195-00
Unavailable
