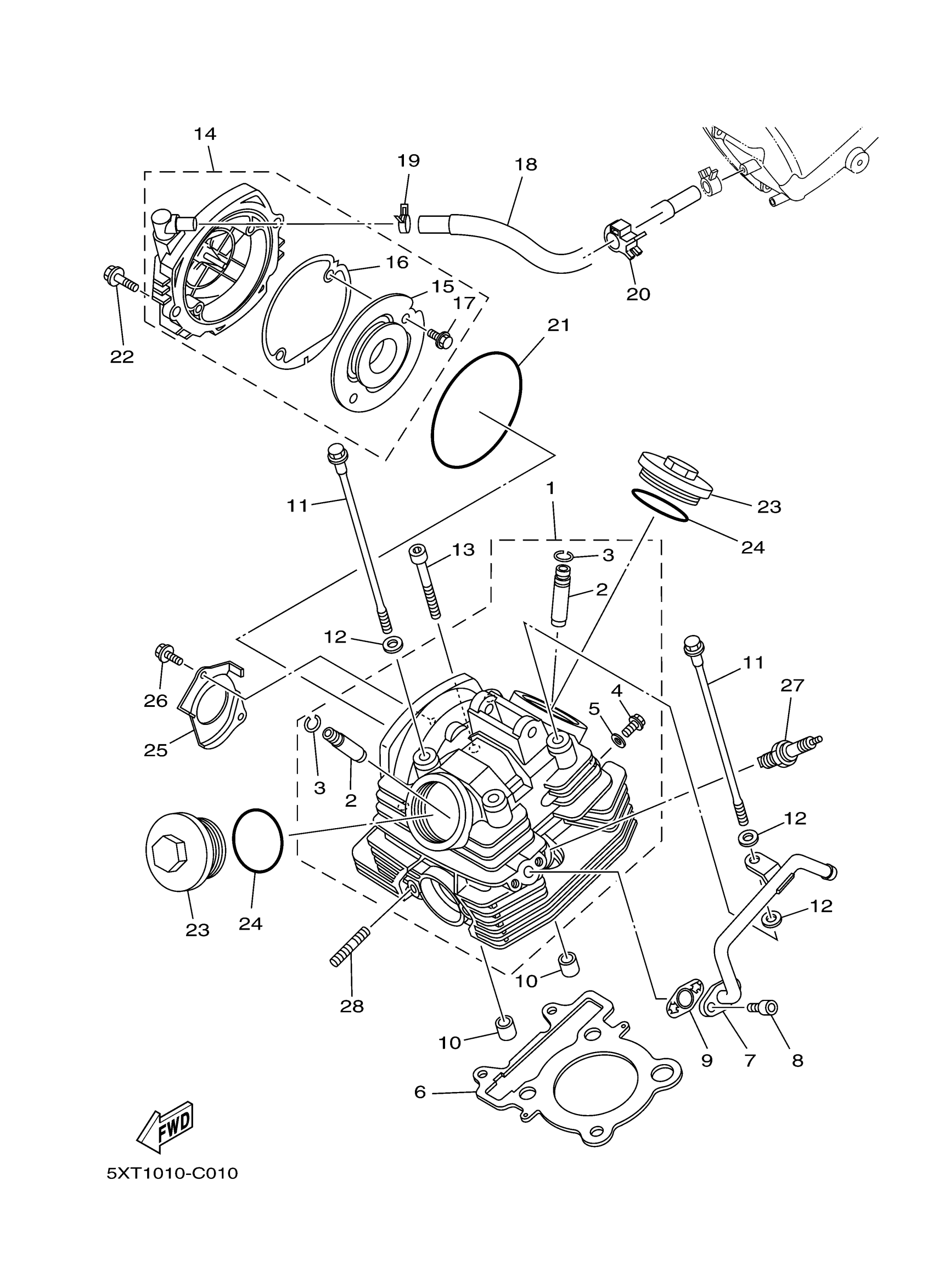

Yamaha XT250AC (XT250 CA) 3C5P 2011 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

3C5-11102-00-00

Unavailable

2

GUIDE, INTAKE VALVE

5H0-11133-11-00

$63.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

SCREW, HEXAGON

90153-06002-00

$8.49

5

GASKET 256113960000

90430-06014-00

Unavailable

6

GASKET, CYLINDER HEAD 1

5XT-11181-00-00

$31.99

7

PIPE 1

3C5-14871-00-00

$43.99

8

BOLT, SOCKET

91314-06016-00

$8.49

9

GASKET

5XT-14815-00-00

$5.49

10

PIN, DOWEL

99530-14016-00

$3.80

11

BOLT, FLANGE

90105-08160-00

$7.49

12

WASHER, PLATE

90201-080L7-00

$4.82

13

BOLT,SOCKET

91314-08045-00

$8.49

14

COVER, CYLINDER HEAD 1

5XT-11190-10-00

Unavailable

15

PLATE, BREATHER

5XT-11165-00-00

Unavailable

16

GASKET, CYLINDER HEAD SIDE

4D3-11196-00-00

Unavailable

17

BOLT, FLANGE

95022-06010-00

Unavailable

18

PIPE, BREATHER 1

5C1-11166-00-00

Unavailable

19

CLIP (7K7)

90467-11044-00

Unavailable

20

CLAMP(4HM)

90464-15192-00

Unavailable

21

O-RING (5H0)

93211-05471-00

Unavailable

22

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

23

COVER, CYLINDER HEAD SIDE 2

5XT-11186-00-00

Unavailable

24

O-RING

93210-54001-00

Unavailable

25

PLATE

5XT-1111F-00-00

Unavailable

26

BOLT, FLANGE

95022-06012-00

Unavailable

27

DR7EA NGK SPLUG 10PK

DR7-EA000-00-00

Unavailable

28

BOLT, STUD

90116-08023-00

Unavailable
