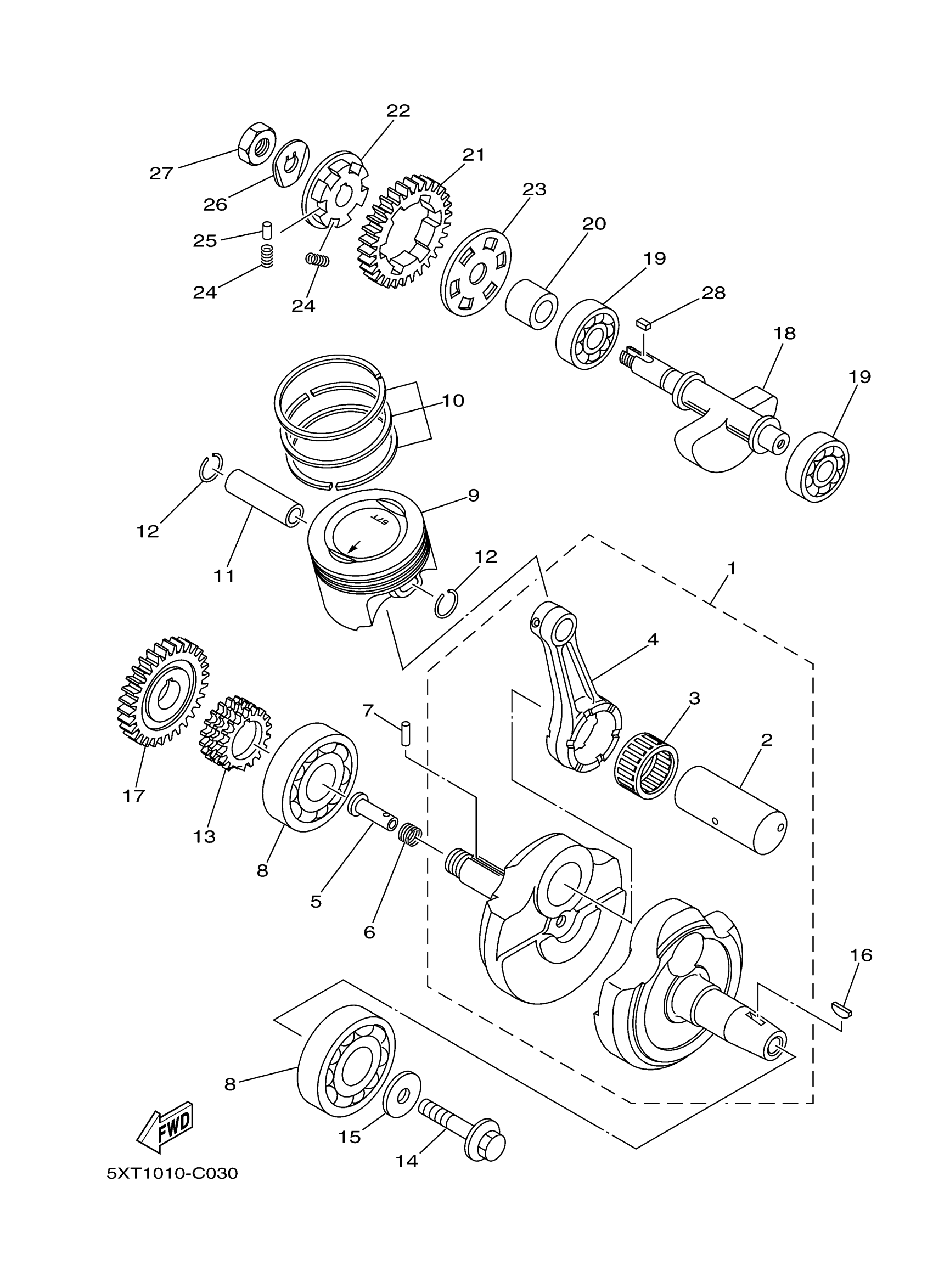

Yamaha XT250AC (XT250 CA) 3C5P 2011 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5XT-11400-00-00

Unavailable

2

PIN, CRANK 1

5BP-11681-00-00

Unavailable

3

BEARING, CYLINDRICAL (5H0)

93310-530J3-00

$62.99

4

ROD, CONNECTING

29U-11651-00-00

$121.99

5

PIN, CLEVIS(30X)

90240-07105-00

$16.99

6

SPRING, COMPRESSION (5H0)

90501-07629-00

$9.49

7

PIN, DOWEL (5H0)

93602-13177-00

$3.76

8

BEARING

93306-37814-00

$88.99

9

PISTON (STD)

3C5-11631-00-A0

$112.99

10

PISTON RING SET (S

4XV-11603-01-00

$42.99

11

PIN, PISTON

4H7-11633-00-00

$46.99

12

CIRCLIP (1L9)

93450-17044-00

$8.49

13

SPROCKET, CAM CHAIN

5BP-11549-00-00

$83.99

14

BOLT, WASHER BASED(1WG)

90105-10430-00

$9.49

15

WASHER, PLATE (4X7)

90201-105A2-00

$8.49

16

KEY, WOODRUFF

90280-05001-00

Unavailable

17

GEAR, DRIVE

1S4-11536-00-00

Unavailable

18

WEIGHT 1

5XT-11454-01-00

Unavailable

19

BEARING

93306-30214-00

Unavailable

20

COLLAR

5XT-11478-00-00

Unavailable

21

GEAR, BALANCE WEIGHT

1S4-11531-00-00

Unavailable

22

BOSS, BUFFER

5XT-11496-00-00

Unavailable

23

PLATE, ABSORBER

5XT-11533-00-00

Unavailable

24

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

25

PIN, DOWEL

93605-10090-00

Unavailable

26

WASHER, LOCK(2RH)

90215-12272-00

Unavailable

27

NUT(2RH)

90170-12370-00

Unavailable

28

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable
