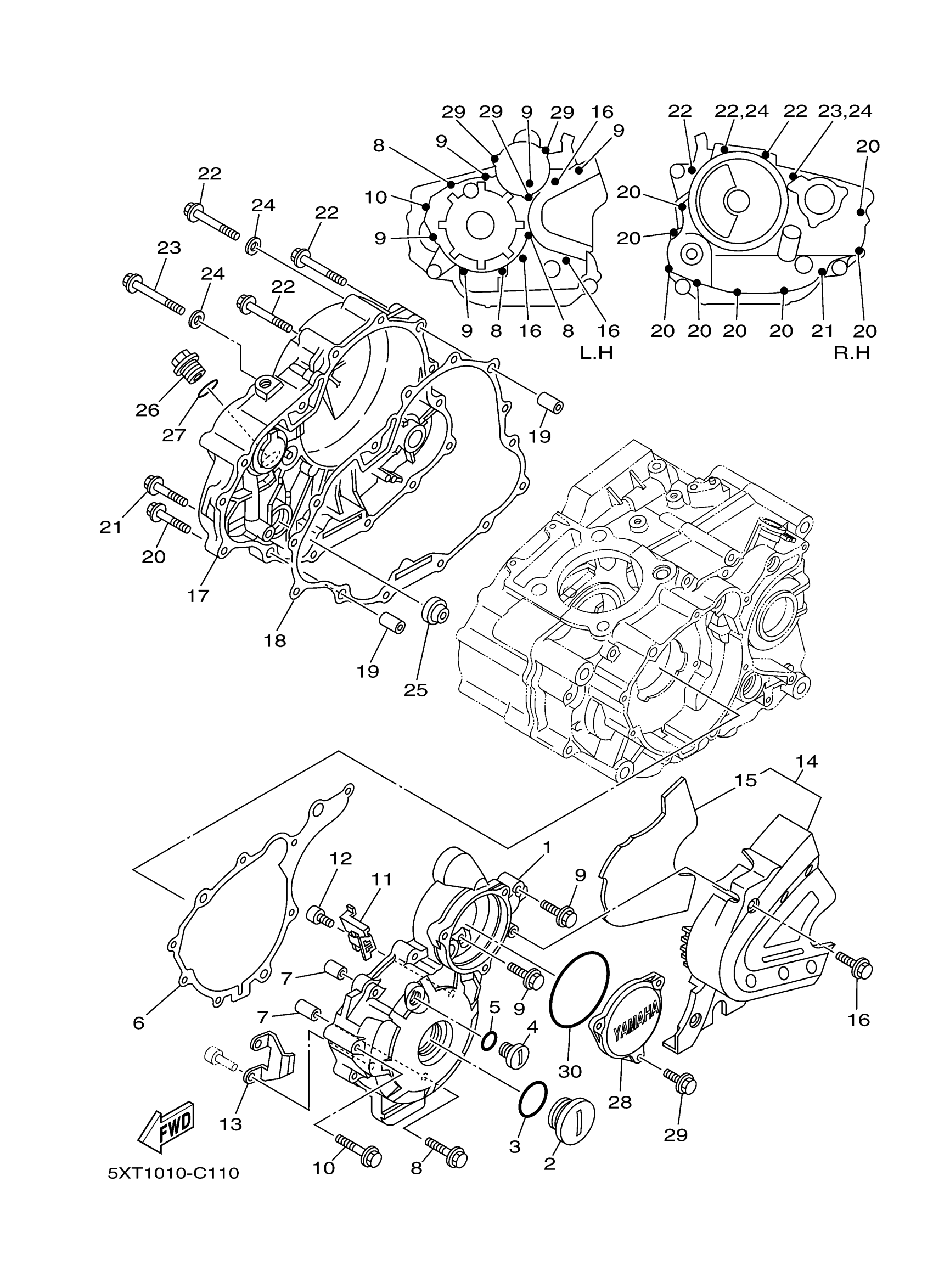

Yamaha XT250AC (XT250 CA) 3C5P 2011 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5XT-15411-02-00

Unavailable

2

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

$15.49

3

O-RING (341)

93210-32172-00

$7.49

4

PLUG, STRAIGHT SCREW(3VD)

90340-14151-00

Unavailable

5

O-RING (2H9)

93210-14369-00

$7.49

6

GASKET, CRANKCASE COVER 1

5XT-15451-00-00

Unavailable

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

BOLT, FLANGE(4KM)

95024-06040-00

$9.49

9

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

10

BOLT, SMALL FLANGE

95024-06045-00

$9.49

11

CLAMP

90465-16011-00

$4.41

12

BOLT(47X)

91312-05012-00

$4.29

13

PLATE

5XT-15113-00-00

Unavailable

14

CRANKCASE COVER ASSY 3

5XT-15430-00-00

$85.99

15

DAMPER 1

5XT-15316-00-00

Unavailable

16

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

17

COVER, CRANKCASE 2

99999-04047-00

Unavailable

18

GASKET, CRANKCASE COVER 2

5XT-15461-00-00

Unavailable

19

PIN, DOWEL(3VD)

99530-10114-00

$2.55

20

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

21

BOLT, FLANGE(4BH)

95024-06035-00

Unavailable

22

BOLT, SMALL FLANGE

95024-06050-00

Unavailable

23

BOLT, FLANGE(4EB)

95024-06055-00

Unavailable

24

GASKET 256113960000

90430-06014-00

Unavailable

25

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

26

PLUG, STRAIGHT SCREW

90340-20002-00

Unavailable

27

O-RING (646)

93210-19123-00

Unavailable

28

COVER, GENERATOR

5XT-15415-00-00

Unavailable

29

BOLT, BUTTON

92014-06016-00

Unavailable

30

. O-RING

93210-74M68-00

Unavailable
