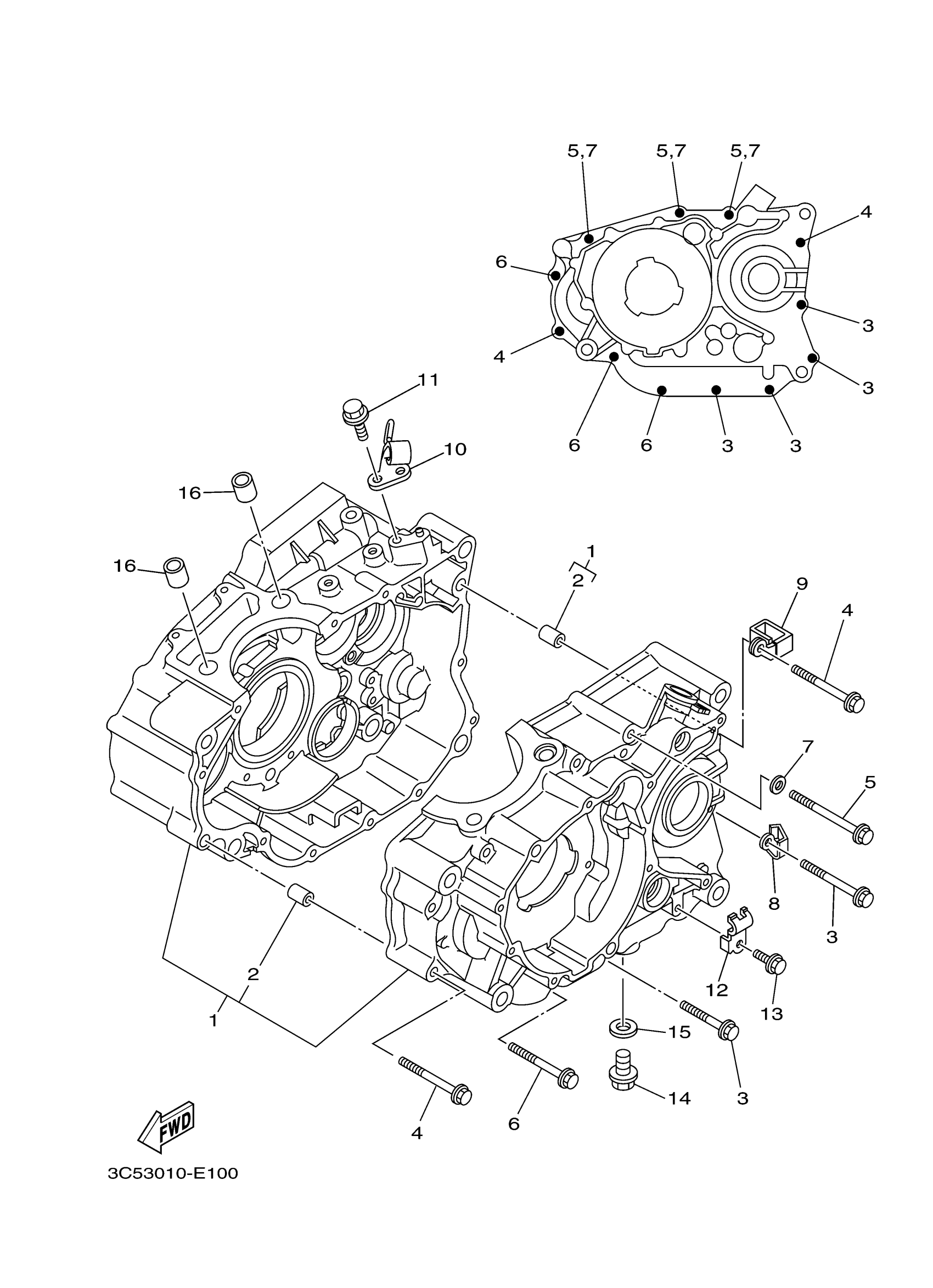

Yamaha XT250AC (XT250 CA) 3C5P 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3C5-15100-03-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, SMALL FLANGE

95024-06045-00

$9.49

4

BOLT, FLANGE(4UN)

95024-06060-00

Unavailable

5

BOLT, FLANGE

95024-06070-00

Unavailable

6

BOLT, FLANGE(4EB)

95024-06055-00

$7.49

7

GASKET 256113960000

90430-06014-00

Unavailable

8

CLAMP(4AJ)

90462-08225-00

$8.49

9

CLAMP

90461-08001-00

Unavailable

10

HOLDER, CLUTCH CABLE

5XT-15441-02-00

$25.99

11

BOLT, FLANGE

95817-06016-00

$2.75

12

CLAMP

90462-10043-00

Unavailable

13

BOLT, FLANGE

95022-06010-00

$5.60

14

PLUG, STRAIGHT SCREW

90340-12006-00

$8.49

15

GASKET(3FD)

90430-12213-00

$5.49

16

PIN, DOWEL

99530-14016-00

Unavailable
