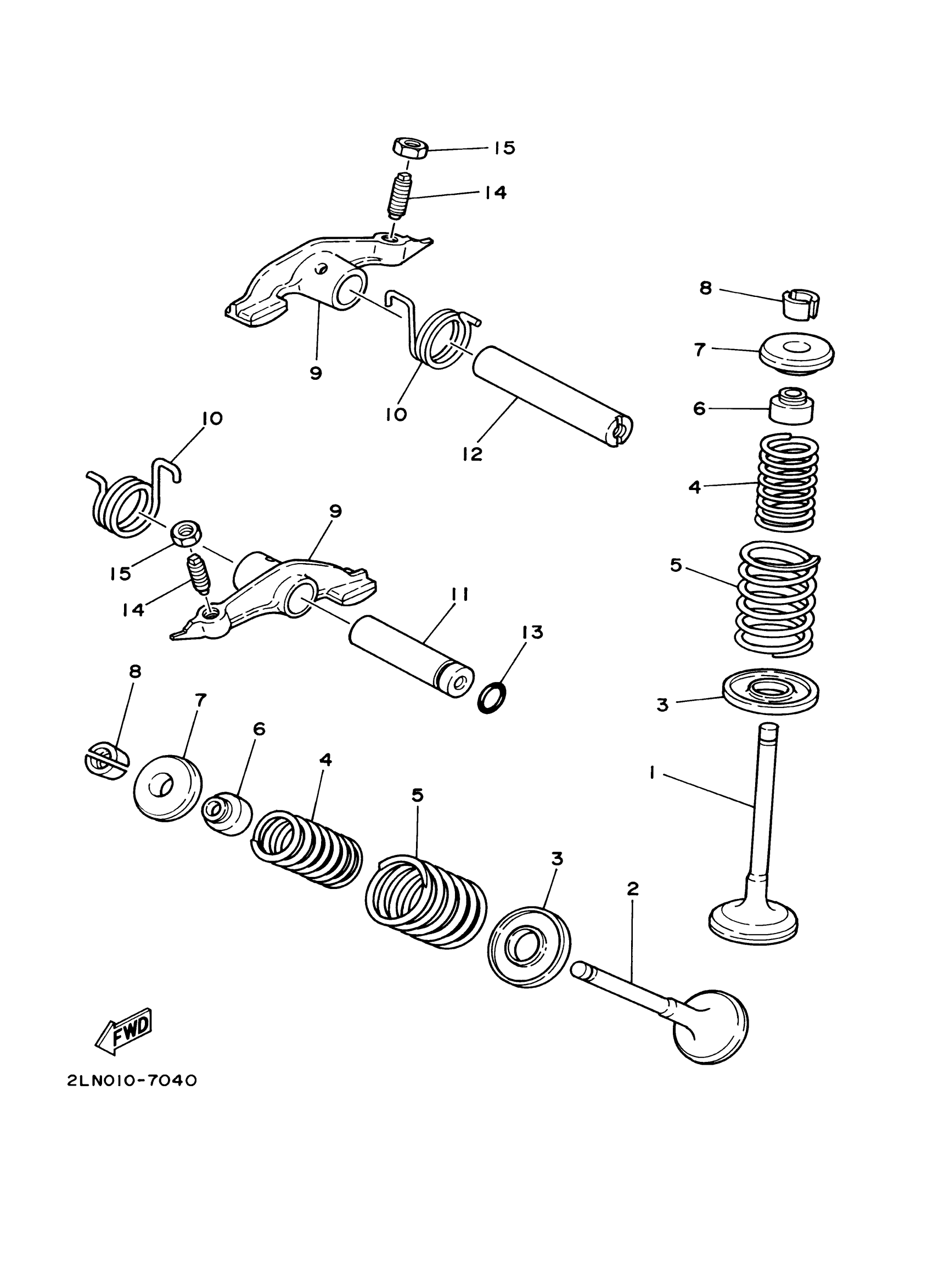

Yamaha XT225VC (XT225 CA) 5RKD 2006 VALVE Diagram

VALVE, INTAKE

5H0-12111-02-00

$42.99

VALVE, EXHAUST

5H0-12121-01-00

$60.99

SEAT, VALVE SPRING

4G0-12116-01-00

$15.49

SPRING, VALVE INNER

11H-12113-00-00

$23.99

SPRING, VALVE OUTER

11H-12114-00-00

$24.99

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

RETAINER, VALVE SPRING

4G0-12117-00-00

$23.99

COTTER, VALVE

4G0-12118-00-00

$7.99

ARM, VALVE ROCKER

29U-12151-01-00

Unavailable

SPRING, TORSION (2LN)

90508-26786-00

Unavailable

SHAFT, ROCKER

5H0-12156-00-00

$38.99

SHAFT, ROCKER

5H0-12146-00-00

$29.99

O-RING (1J7)

93210-09350-00

$7.49

SCREW, VALVE ADJUSTING

2NX-12159-00-00

$11.99

NUT HEXAGON 371121580000

90170-06128-00

$8.49
