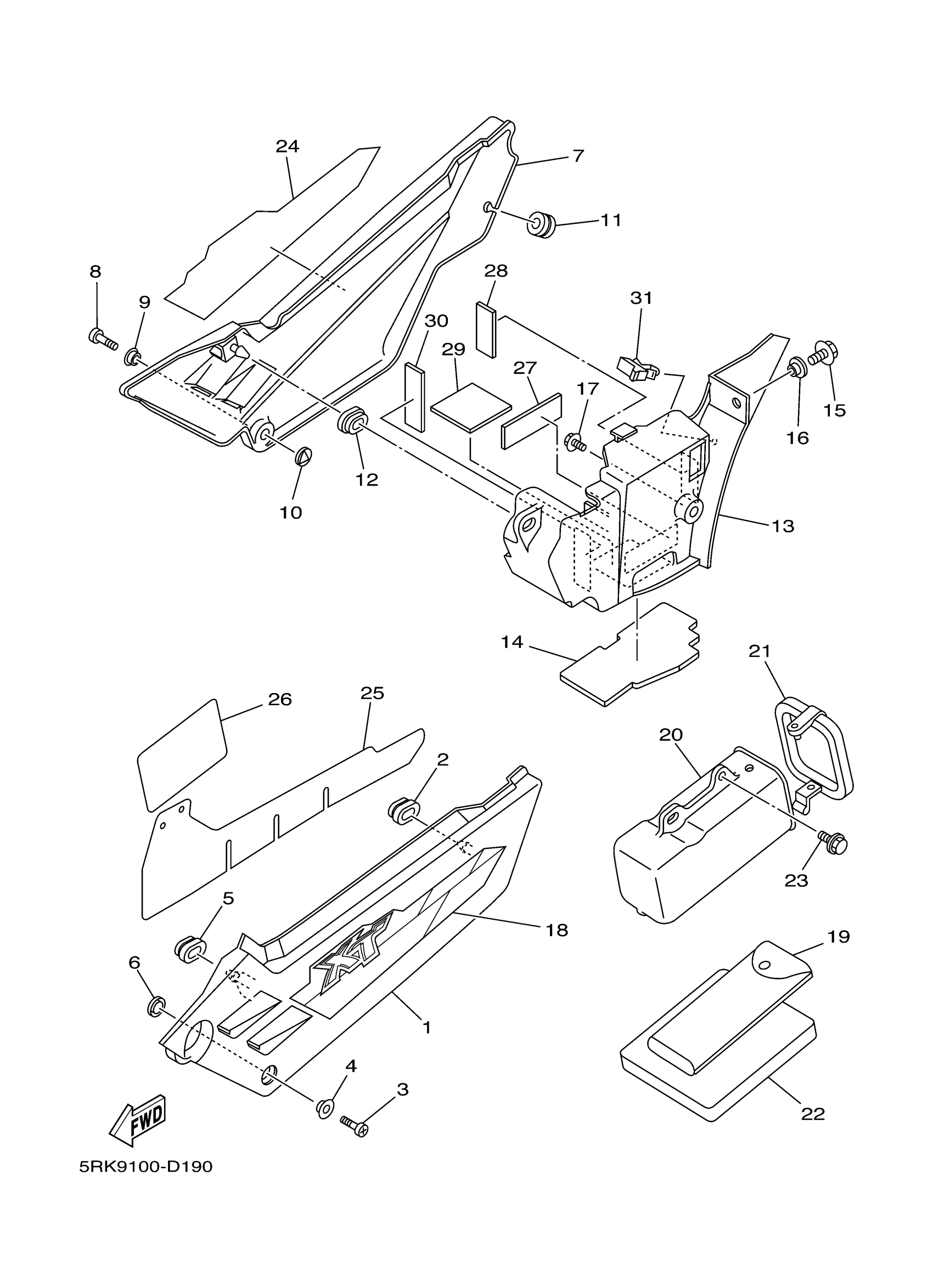

Yamaha XT225TC (XT225 CA) 5RKA 2005 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

3RW-21711-20-00

Unavailable

2

GROMMET(41Y)

90480-01401-00

$8.49

3

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

4

COLLAR

90387-06107-00

$8.49

5

GROMMET(41Y)

90480-01401-00

$8.49

6

PLATE

4U5-2176E-00-00

$7.99

7

COVER, SIDE 2

3RW-21721-20-00

Unavailable

8

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

9

COLLAR

90387-06107-00

$8.49

10

PLATE

4U5-2176E-00-00

$7.99

11

GROMMET (2H7)

90480-11224-00

$3.45

12

GROMMET(41Y)

90480-01401-00

$8.49

13

BOX

3RW-2177A-02-00

Unavailable

14

SEAL 3

5MP-2173M-00-00

Unavailable

15

BOLT, FLANGE

95817-06016-00

$2.75

16

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

17

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

18

GRAPHIC 1

5RK-2173E-29-00

Unavailable

19

TOOL KIT

3RW-28100-01-00

Unavailable

20

BOX, TOOL

55V-28173-01-00

Unavailable

21

LID

55V-28185-00-00

Unavailable

22

DAMPER 5

3RW-28267-00-00

Unavailable

23

BOLT, WITH WASHER(8V7)

90119-06108-00

Unavailable

24

GRAPHIC 2

5RK-2173F-20-00

Unavailable

25

COVER

3RW-2177F-00-00

Unavailable

26

PLATE, EPA 2 (CALIFORNIA)

5RK-2179N-00-00

Unavailable

26

PLATE, EPA 1 (NON CALIFORNIA)

5RK-2179V-00-00

Unavailable

27

DAMPER 1

4GY-2214F-00-00

Unavailable

28

DAMPER, LOCATING 1

4X4-24181-00-00

Unavailable

29

DAMPER

5MP-21747-00-00

Unavailable

30

DAMPER

22F-2139X-00-00

Unavailable

31

CLAMP (1J7)

90464-16021-00

Unavailable
