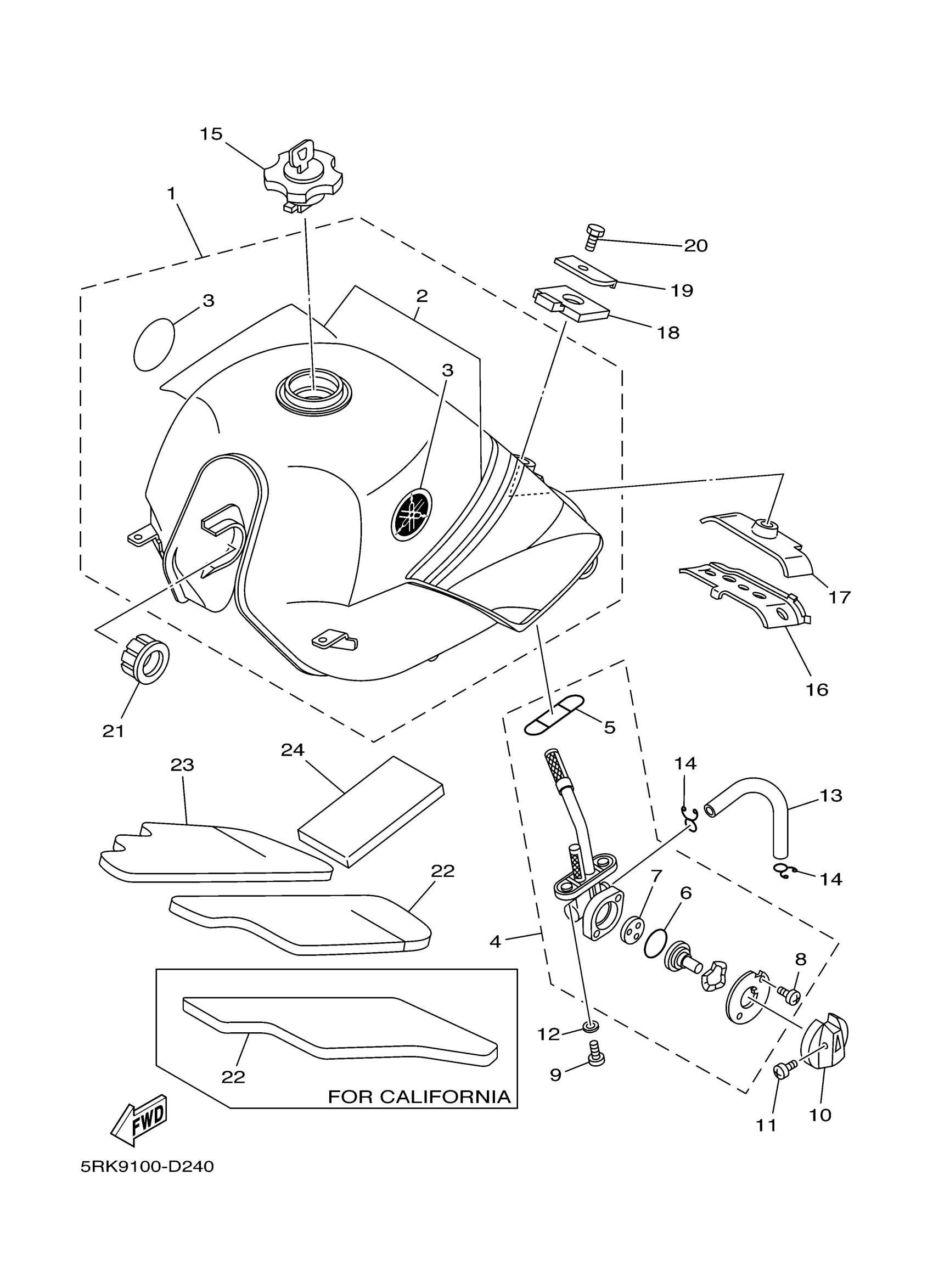

Yamaha XT225TC (XT225 CA) 5RKA 2005 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (SILVER 3)

3RW-Y2410-00-07

Unavailable

1

FUEL TANK COMP. (SILVER 3)

4BE-Y2410-00-07

Unavailable

2

. GRAPHIC SET

5RK-24240-20-00

Unavailable

3

EMBLEM

5VX-2411B-10-00

Unavailable

4

FUEL COCK ASSY 1

3RW-24500-01-00

$81.99

5

O-RING

4X8-24512-00-00

$8.99

6

SEAL, COCK

3AJ-24534-01-00

$10.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

9

SCREW 256241430000

90149-06011-00

$5.60

10

LEVER, COCK

1YH-F4524-00-00

Unavailable

11

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

HOSE (L200)

90445-10752-00

$4.99

14

CLIP

90467-090A2-00

$4.41

15

CAP ASSY

11H-24602-10-00

Unavailable

15

CAP ASSY

51K-24602-10-00

Unavailable

16

WASHER, SPECIAL

1KH-24187-00-00

Unavailable

17

DAMPER, LOCATING 2

1KH-24182-00-00

Unavailable

18

DAMPER, LOCATING 3

30X-24183-01-00

Unavailable

19

WASHER, SPECIAL

30X-24186-01-00

Unavailable

20

BOLT, HEXAGON

97017-06012-00

Unavailable

21

DAMPER, LOCATING

4H7-24181-00-00

Unavailable

22

DAMPER, PLATE 1

3RW-2414H-00-00

Unavailable

22

DAMPER, PLATE 1

4BE-2414H-00-00

Unavailable

23

DAMPER, PLATE 2

3RW-2414J-00-00

Unavailable

24

SEAT, DAMPER A

M12-T133A-00-00

Unavailable
