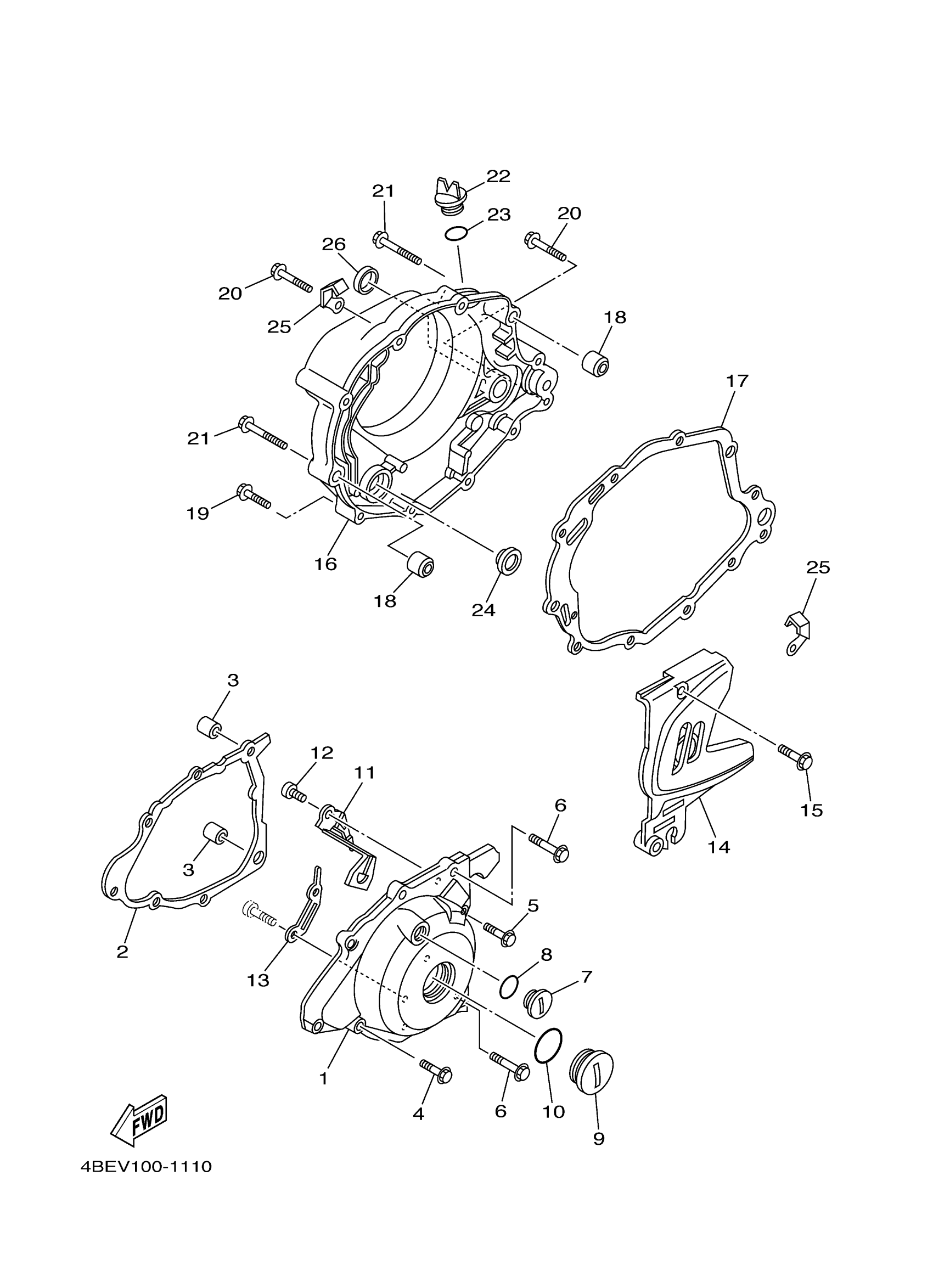

Yamaha XT225TC (XT225 CA) 5RKA 2005 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5RK-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4BE-15451-03-00

$22.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, SMALL FLANGE

95027-06025-00

$4.16

5

BOLT, SMALL FLANGE

95027-06025-00

$4.16

6

BOLT, SMALL FLANGE

95027-06035-00

$2.22

7

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

8

O-RING (2H9)

93210-14369-00

$7.49

9

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$32.99

10

O-RING (341)

93210-32172-00

$7.49

11

CLAMP(4JG)

90465-08364-00

$24.99

12

BOLT,SOCKET

91317-06010-00

$9.49

13

CLAMP(4JG)

90462-16213-00

Unavailable

14

CRANKCASE COVER ASSY 2

5RK-15420-00-00

Unavailable

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

COVER, CRANKCASE 3

5RK-15431-00-00

Unavailable

17

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

Unavailable

18

PIN, DOWEL

99530-12016-00

$4.89

19

BOLT, SMALL FLANGE

95027-06025-00

$4.16

20

BOLT, SMALL FLANGE

95027-06035-00

$2.22

21

BOLT, SMALL FLANGE

95027-06045-00

Unavailable

22

PLUG, OIL

3Y1-15363-10-00

Unavailable

23

O-RING (646)

93210-19123-00

Unavailable

24

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

25

CLAMP(4AJ)

90462-08225-00

Unavailable

26

PLUG, BLIND 1

55X-15167-00-00

Unavailable
