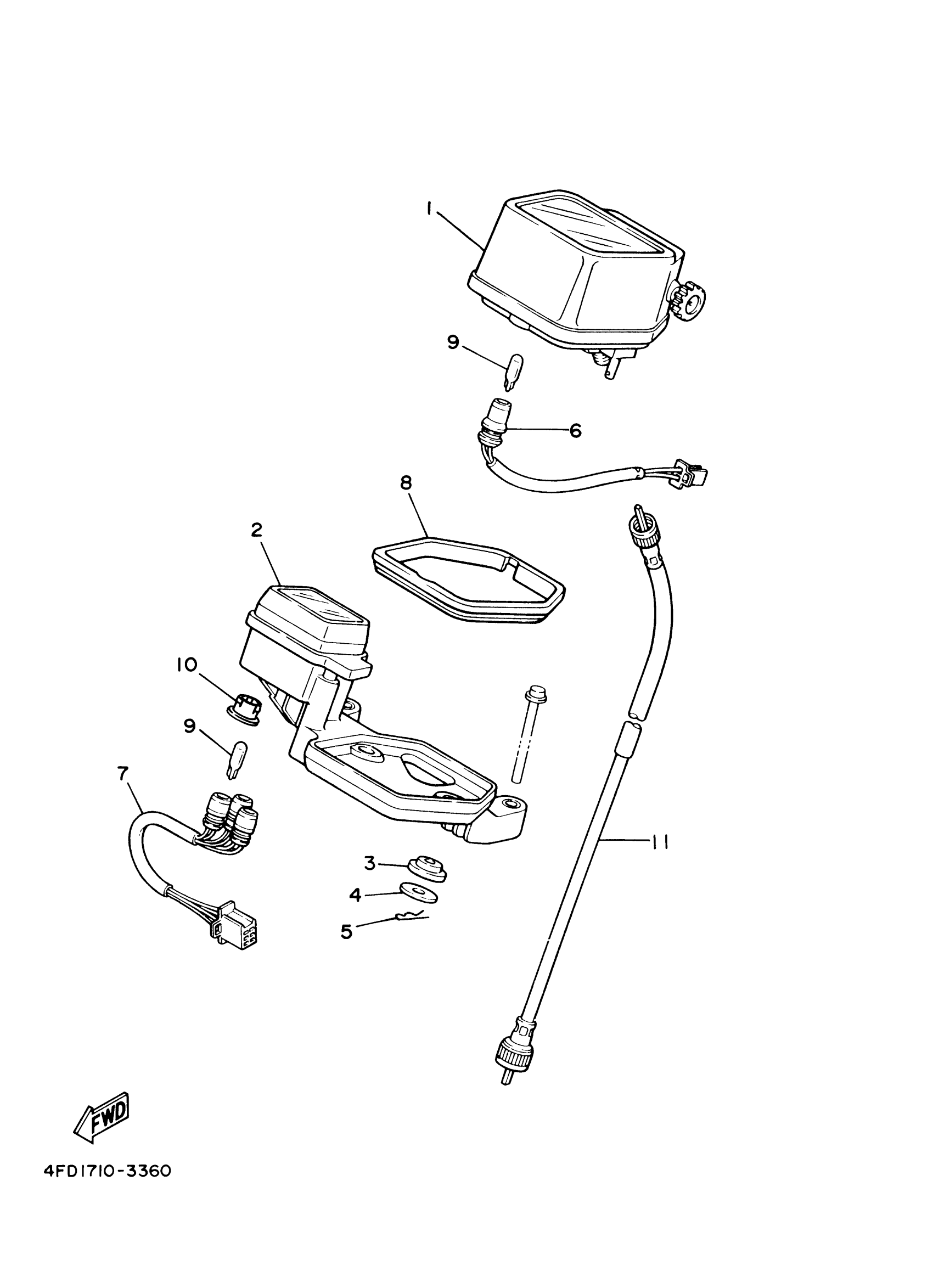

Yamaha XT225SC (XT225 CA) 5RK7 2004 METER Diagram

SPEEDOMETER ASSY

4BE-83580-10-00

Unavailable

BRACKET, METER

4BE-8355A-10-00

Unavailable

DAMPER 2

1M1-83526-01-00

$4.47

WASHER PLATE 829771780000

90201-05033-00

$10.49

CLIP (156-83525-00)

90468-10050-00

$3.05

SOCKET CORD ASY

3EB-83520-00-00

Unavailable

SOCKET CORD ASSY

4BE-83520-10-00

Unavailable

DAMPER

5Y1-83513-00-00

Unavailable

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

. PLUG, BLIND

4BE-8352K-00-00

Unavailable

SPEEDOMETER CABLE ASSY

1RH-83550-02-00

$42.99
