2004 Yamaha XT225 CA (XT225SC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2004 Yamaha XT225 CA (XT225SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

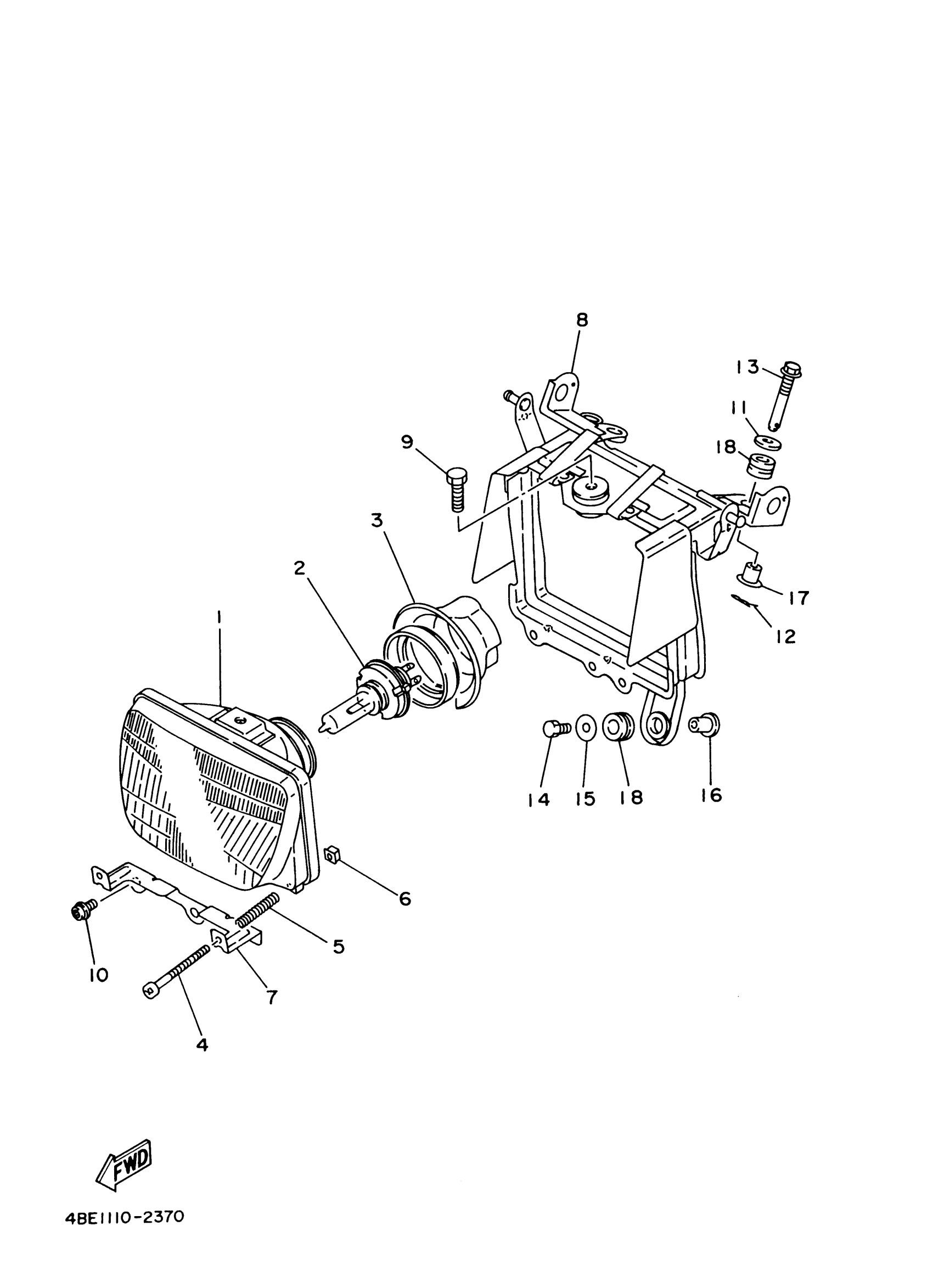

2004 Yamaha XT225 CA (XT225SC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

4BE-84320-10-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

4

SCREW, RIM FITTING

3TB-84325-00-00

1
Out of stock

5

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

6

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

7

STAY, SETTING

3TB-8431R-00-00

—
Out of stock

8

BODY, HEADLIGHT

4BE-84311-00-00

1
Out of stock

9

BOLT, HEXAGON

3TB-84372-01-00

1
Out of stock

10

BOLT, WING 1

3TB-84329-00-00

1
Out of stock

11

WASHER PLATE 102283270000

90202-06013-00

1
Out of stock

12

CLIP (7R4)

90468-12120-00

1
Out of stock

13

BOLT, SPECIAL

3TB-84137-00-00

1
Out of stock

14

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

15

WASHER, PLATE

90201-06557-00

1

$2.75

In stock

16

COLLAR

90387-06158-00

—

$6.17

In stock

17

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
