2004 Yamaha XT225 CA (XT225SC) Electrical 1 Diagram

← All diagrams

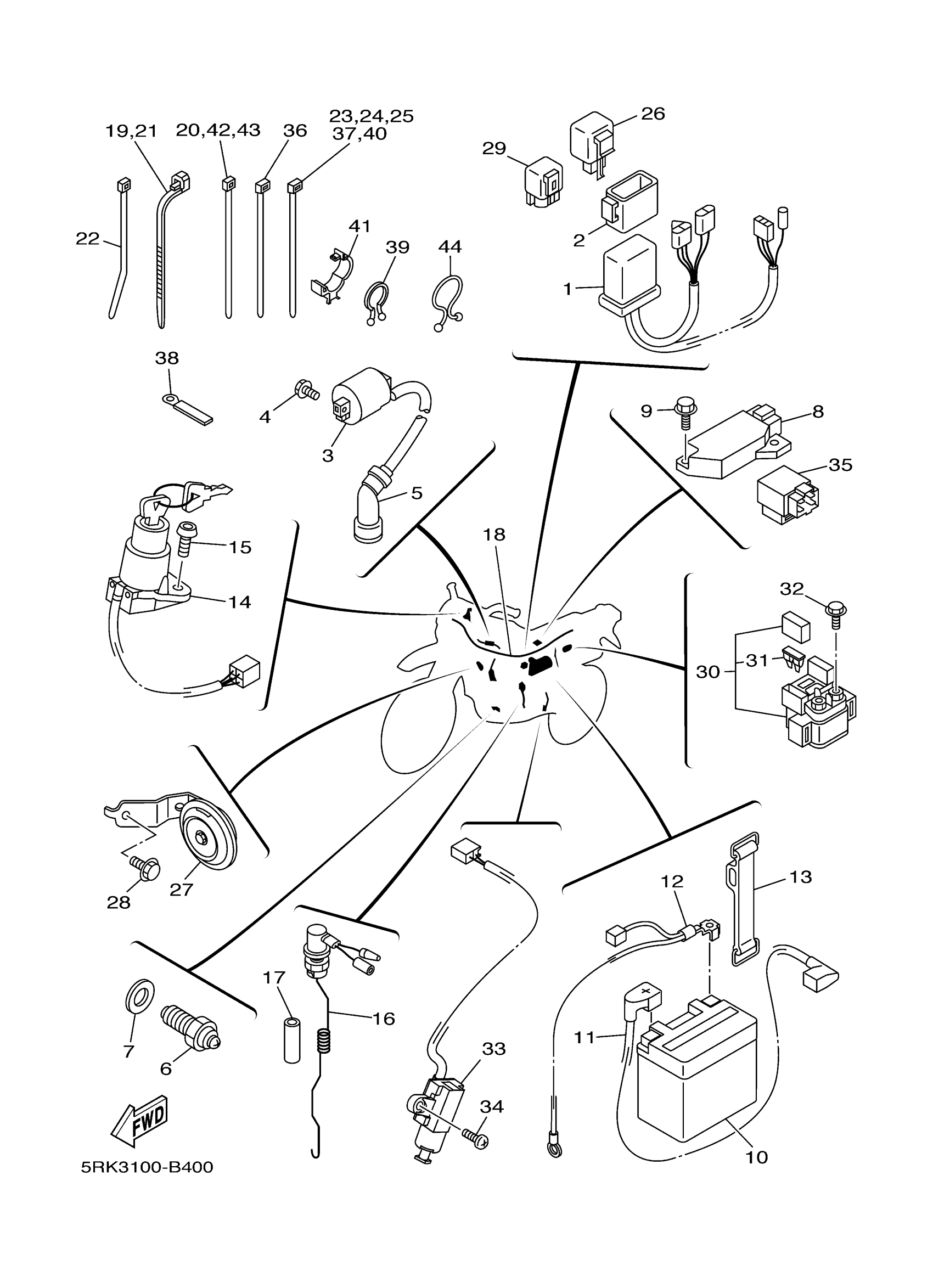

Find the part on the Electrical 1 diagram for your 2004 Yamaha XT225 CA (XT225SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Yamaha XT225 CA (XT225SC) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I. UNIT ASSY

3GX-85540-00-00

1
Out of stock

2

BAND

3RW-85546-00-00

1
Out of stock

3

IGNITION COIL ASSY

3KJ-82310-13-00

1
Out of stock

4

BOLT, WASHER BASED(JA9)

90105-06696-00

1

$6.29

In stock

5

PLUG CAP ASSY

3NS-82370-00-00

1

$31.58

In stock

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

1
Out of stock

7

GASKET (1KH,1.0T)

90430-10148-00

1

$4.74

In stock

8

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

—

$146.51

In stock

9

BOLT, SMALL FLANGE

95027-06025-00

1

$3.18

In stock

10

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

1

$173.71

In stock

11

WIRE, PLUS LEAD

5BT-82115-00-00

1
Out of stock

12

WIRE, MINUS LEAD

4JG-82116-10-00

1
Out of stock

13

BAND, BATTERY

22F-82131-00-00

1

$23.43

In stock

14

MAIN SWITCH STEERING LOCK

58E-82501-00-00

1
Out of stock

15

SCREW(1KT)

90149-06228-00

1

$6.29

In stock

16

STOP SWITCH ASSY

5BT-82530-00-00

1
Out of stock

17

HOSE(4CS)

90446-15381-00

—

$1.91

In stock

18

WIRE HARNESS ASSY

4BE-82590-10-00

1
Out of stock

19

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

20

BAND

1UA-82591-00-00

—
Out of stock

21

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

22

CLAMP

90465-10098-00

1

$2.24

In stock

23

CLAMP

5Y9-12491-00-00

—

$6.38

In stock

24

CLAMP

5Y9-12491-00-00

—

$6.38

In stock

25

CLAMP

5Y9-12491-00-00

—

$6.38

In stock

26

FLASHER RELAY ASSY

4VR-83350-02-00

—
Out of stock

27

HORN

3RW-83371-11-00

1
Out of stock

28

BOLT, FLANGE

95817-06010-00

—

$3.91

In stock

29

RELAY ASSY

3RW-81950-01-00

—
Out of stock

30

STARTER RELAY ASSY (RC19-019)

4JG-81940-12-00

—
Out of stock

31

FUSE (20A)

2GV-82151-00-00

—
Out of stock

32

BOLT, SMALL FLANGE

95027-06008-00

—

$5.60

In stock

33

SWITCH, SIDE STAND

3LD-82566-61-00

—

$48.28

In stock

34

SCREW, PAN HEAD(JJ6)

98507-05016-00

—

$1.40

In stock

35

RELAY ASSY (29U-93)

29U-81950-93-00

—

$67.77

In stock

36

CLAMP

90464-16061-00

—

$6.78

In stock

37

CLAMP

5Y9-12491-00-00

—

$6.38

In stock

38

CLAMP(4MX)

90465-06376-00

—

$7.08

In stock

39

CLAMP (3Y2)

90464-16039-00

—
Out of stock

40

CLAMP

5Y9-12491-00-00

—

$6.38

In stock

41

CLAMP(4GY)

90464-10190-00

—

$7.26

In stock

42

BAND

1UA-82591-00-00

—
Out of stock

43

BAND

1UA-82591-00-00

—
Out of stock

44

CLAMP

90464-25267-00

—

$5.62

In stock
