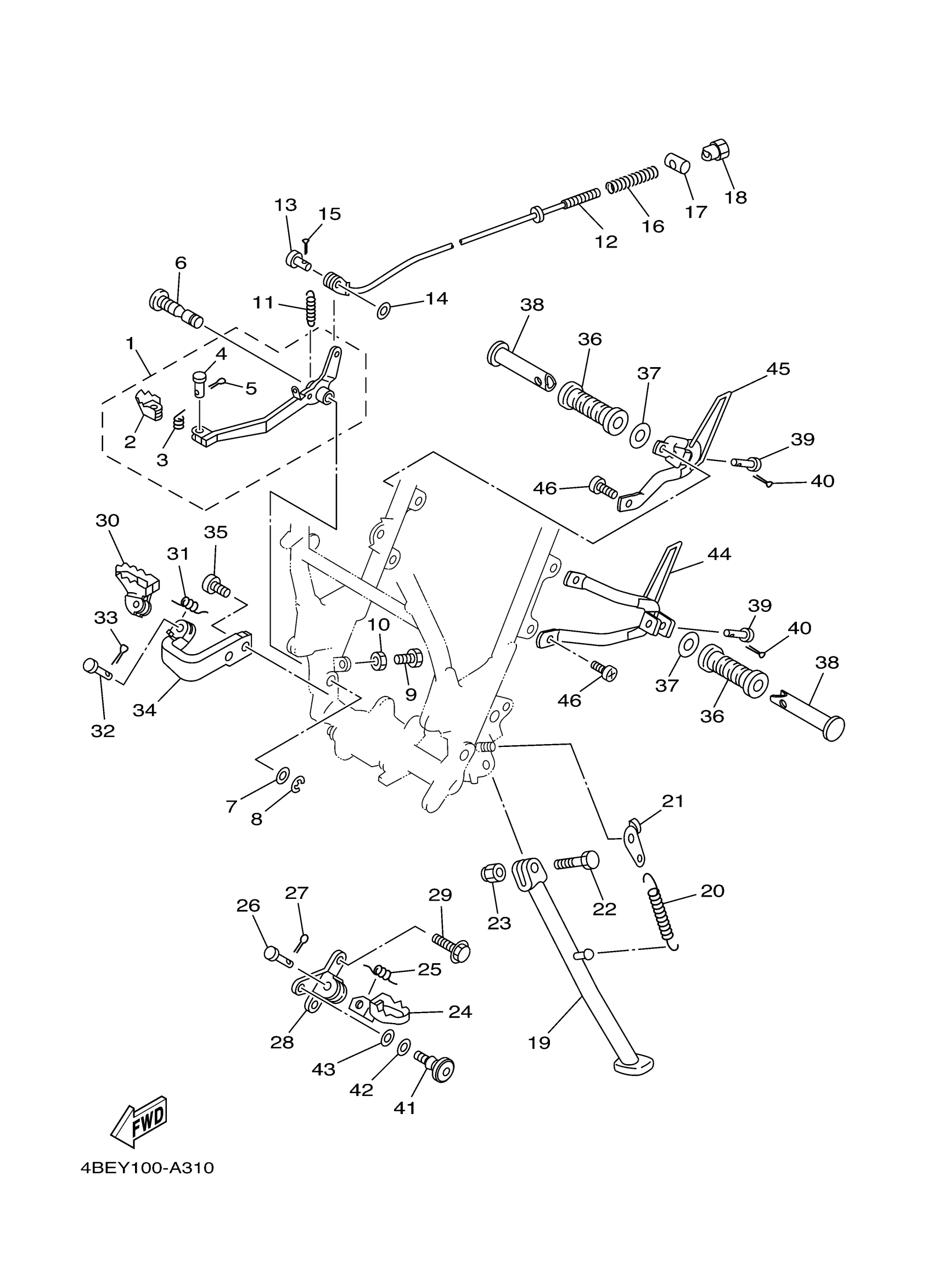

Yamaha XT225RC (XT225 CA) 5RK4 2003 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1KH-27200-00-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

SHAFT, BRAKE PEDAL

1KH-27212-01-00

$24.99

7

WASHER, PLATE (525)

90201-12541-00

$7.49

8

CIRCLIP (4V2)

93430-09038-00

$9.49

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

NUT(JN5)

95317-06700-00

$8.49

11

SPRING, TENSION (23X)

90506-18305-00

$10.49

12

ROD, BRAKE

1KH-27231-01-00

Unavailable

13

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

14

WASHER(6TA)

92907-06200-00

$8.49

15

PIN, COTTER (648)

91490-20015-00

$2.20

16

SPRING, (180-27236-00)

90501-10245-00

Unavailable

17

PIN 1562723700

90249-12008-00

Unavailable

18

NUT (25K)

90179-06411-00

Unavailable

19

STAND, SIDE

4BE-27311-01-00

Unavailable

20

SPRING, MAIN STAND

4KN-27116-00-00

Unavailable

21

LINK, SIDE STAND

42U-27315-01-00

Unavailable

22

BOLT(2GH)

90109-104E6-00

Unavailable

23

NUT, U

90185-10037-00

Unavailable

24

FOOTREST 1

22W-27411-01-90

Unavailable

25

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

26

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable

28

BRACKET, FOOTREST 1

1KH-27412-00-00

Unavailable

29

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

30

FOOTREST 2

1KH-27421-00-90

Unavailable

31

SPRING TORSION 371274560000

90508-20155-00

Unavailable

32

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

33

PIN, COTTER

91490-25020-00

Unavailable

34

BRACKET, FOOTREST 2

1KH-27422-01-00

Unavailable

35

BOLT, SOCKET

91317-10020-00

Unavailable

36

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

37

WASHER, PLATE (888)

90201-20279-00

Unavailable

38

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

39

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

40

PIN, COTTER (648)

91490-20015-00

$2.20

41

BOLT

4BP-27434-11-00

Unavailable

42

WASHER, PLATE(51Y)

90201-120K4-00

Unavailable

43

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

44

BRACKET 1

3RW-27432-00-00

Unavailable

45

BRACKET 2

3RW-27442-00-00

Unavailable

46

BOLT, BUTTON

92017-08020-00

Unavailable
