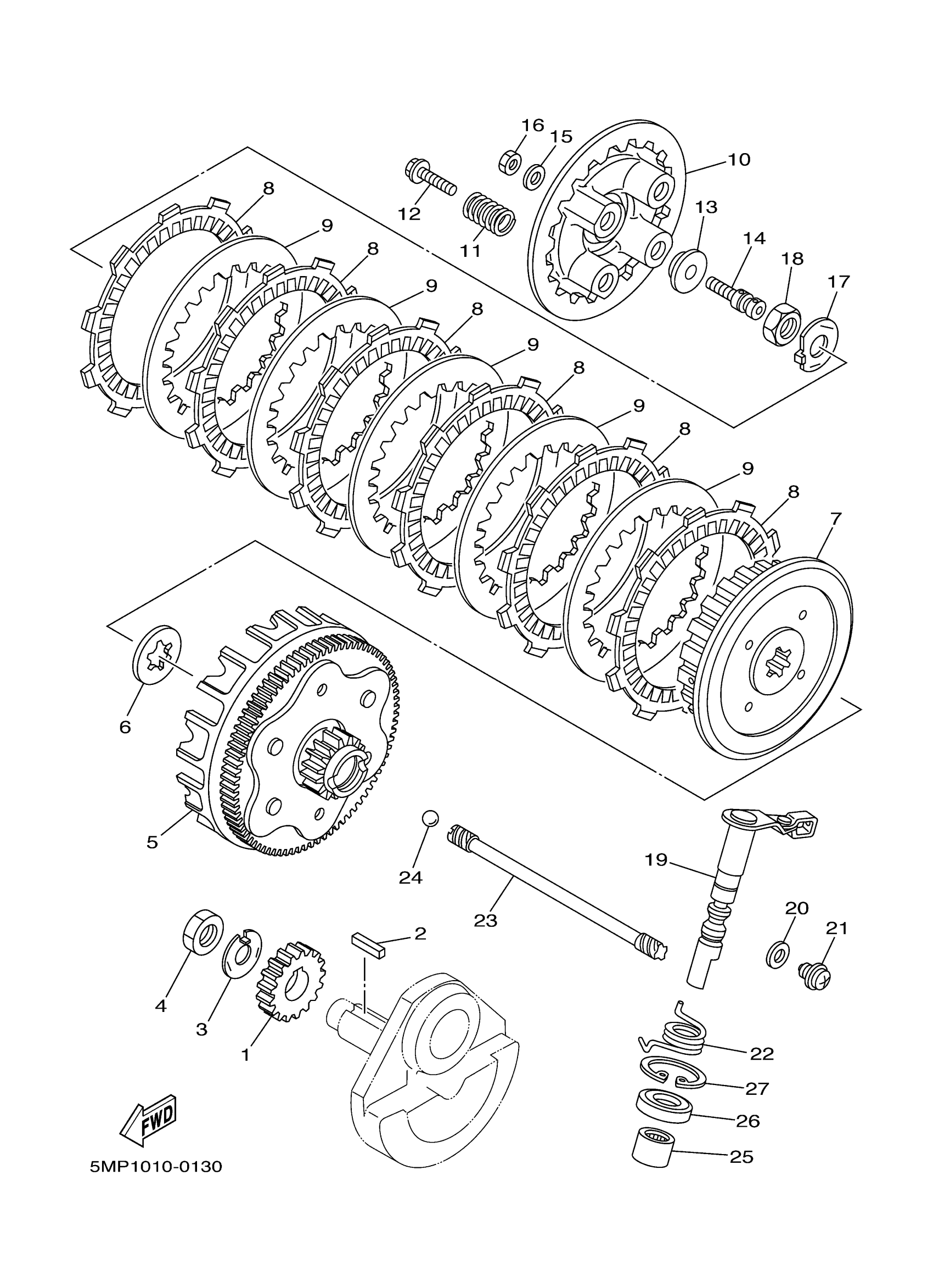

Yamaha XT225RC (XT225 CA) 5RK4 2003 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

Unavailable

2

KEY, STRAIGHT (5H0)

90282-05043-00

$9.49

3

WASHER, LOCK (15Y)

90215-14205-00

$8.49

4

NUT (5H0)

90170-14284-00

$9.49

5

PRIMARY DRIVEN GEAR COMP.

1KH-16150-00-00

$354.99

6

PLATE, THRUST 1

2LN-16154-00-00

$30.99

7

BOSS, CLUTCH

5MP-16371-00-00

Unavailable

8

PLATE, FRICTION

5MP-16321-00-00

$16.49

9

PLATE, CLUTCH 1

336-16324-10-00

$18.49

10

PLATE, PRESSURE 1

5H0-16351-00-00

$41.99

11

SPRING, COMPRESSION

90501-23700-00

$7.49

12

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

13

PLATE, PUSH

1W1-16358-01-00

$23.99

14

ROD, PUSH 1

4JG-16356-00-00

Unavailable

15

WASHER(6TA)

92907-06200-00

$8.49

16

NUT(6TA)

95317-06600-00

Unavailable

17

WASHER, LOCK (25G)

90215-14186-00

Unavailable

18

NUT (5H0)

90170-14284-00

$9.49

19

PUSH LEVER ASSY

4JG-16380-01-00

Unavailable

20

GASKET

90430-08119-00

Unavailable

21

SCREW 425163430000

90149-08067-00

Unavailable

22

SPRING, TORSION

90508-18495-00

Unavailable

23

ROD, PUSH 2

5H0-16357-00-00

Unavailable

24

BALL

93505-16006-00

Unavailable

25

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

26

OIL SEAL (3Y1)

93102-14209-00

Unavailable

27

CIRCLIP (3Y1)

93420-28055-00

Unavailable
