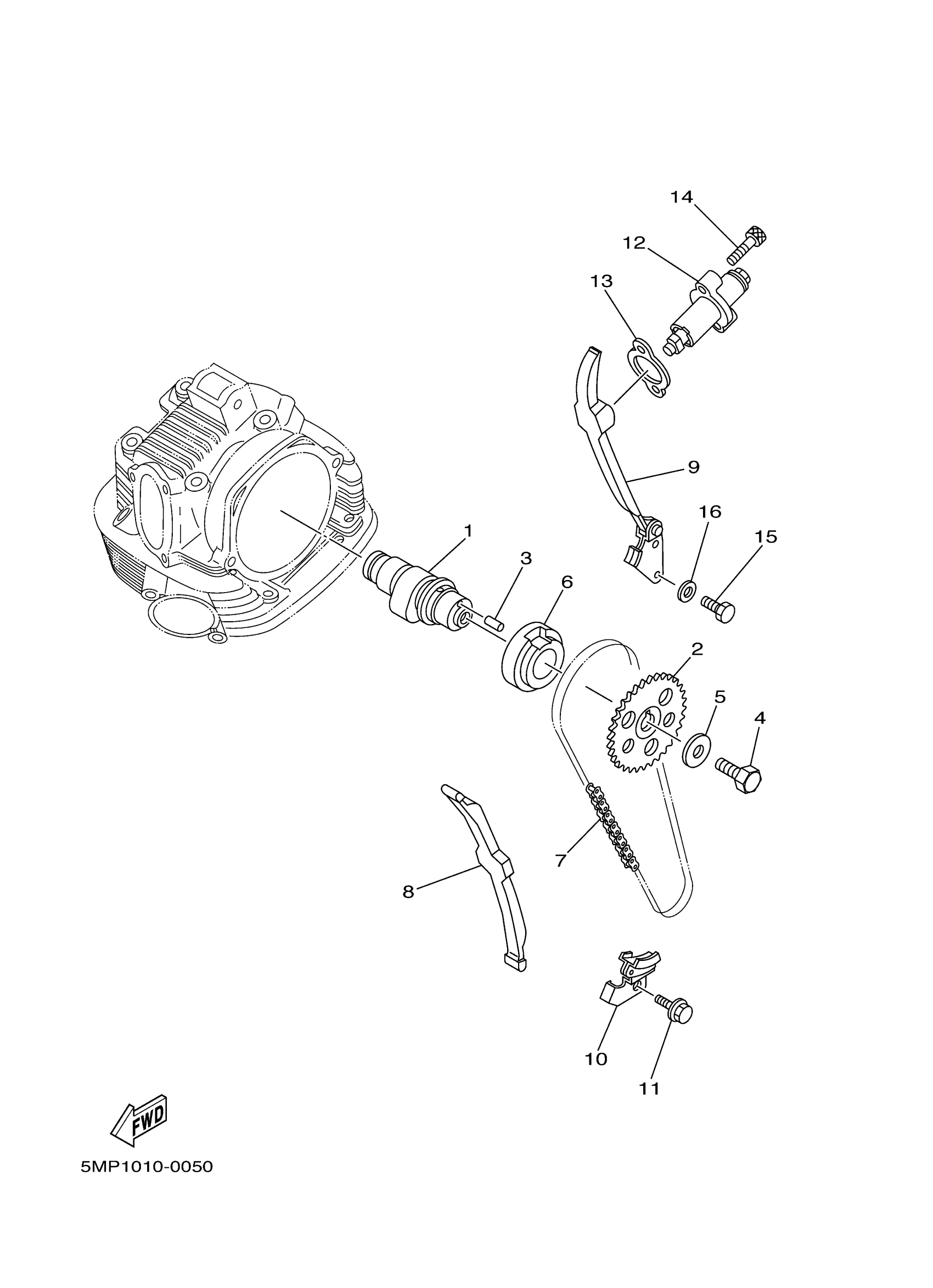

Yamaha XT225RC (XT225 CA) 5RK4 2003 CAMSHAFT CHAIN Diagram

Description

Price

CAMSHAFT 1

1KH-12171-01-00

$161.99

SPROCKET, CAM CHAIN

5MP-12176-00-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

COLLAR (15A)

90387-255F3-00

$45.99

CHAIN

94591-87104-00

$22.99

GUIDE, STOPPER 1

5MP-12231-00-00

$117.99

GUIDE, STOPPER 2

5MP-12241-00-00

$189.99

COVER, CHAIN

5MP-12256-00-00

Unavailable

BOLT, SMALL FLANGE

95027-08016-00

$8.49

TENSIONER ASSY, CAM CHAIN

5MP-12210-00-00

$119.99

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, HEXAGON

97017-06016-00

$8.49

WASHER(6TA)

92907-06600-00

Unavailable
