Description

Price

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

2

RACE, BALL 1

BP2-23411-00-00

$11.49

3

RACE, BALL 2

BP2-23412-00-00

$7.49

4

RETAINER, BALL BEARING

BP2-2341E-00-00

Unavailable

5

COVER BALL RACE

10V-23416-01-00

Unavailable

6

NUT

90179-25004-00

$24.99

7

CROWN, HANDLE

4BE-23435-10-00

Unavailable

8

BOLT, WASHER BASED(34X)

90105-14329-00

$12.49

9

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

10

HOLDER, HANDLE UPPER

1E6-23441-10-35

$23.99

11

BOLT, FLANGE

95817-08035-00

$9.49

12

GUIDE, CABLE

4BE-23389-00-00

Unavailable

13

HOLDER, CABLE

34X-23317-00-00

$6.99

14

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

15

WASHER(1RW)

92907-05600-00

$3.78

16

NUT, HEXAGON

95317-05600-00

Unavailable

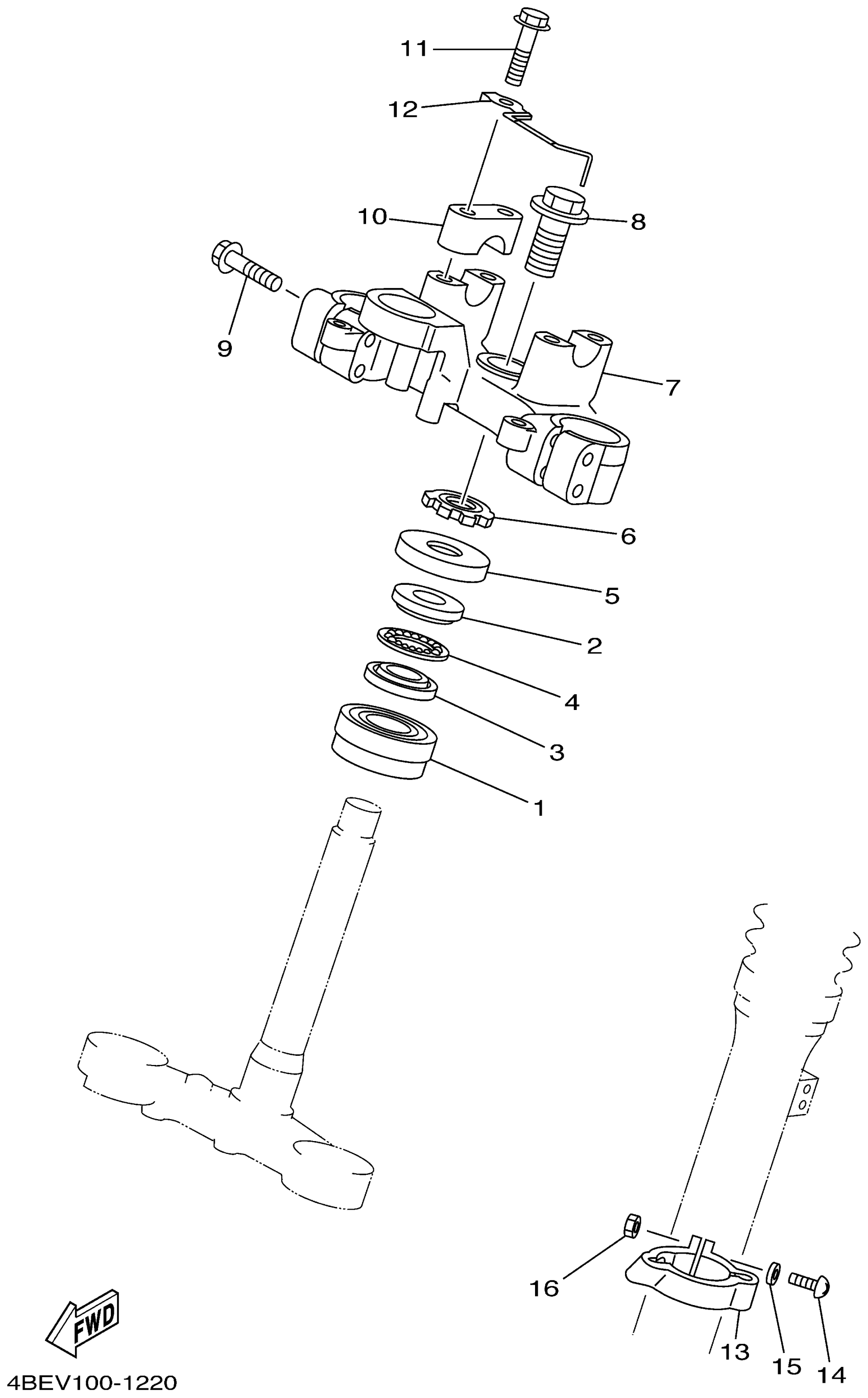

Yamaha XT225PC (XT225 CA) 5RK1 2002 STEERING Diagram

BRG,CYL-CAL ROLLER 131G KY

RACE, BALL 1

RACE, BALL 2

RETAINER, BALL BEARING

COVER BALL RACE

NUT

CROWN, HANDLE

BOLT, WASHER BASED(34X)

BOLT, FLANGE(4MY)

HOLDER, HANDLE UPPER

BOLT, FLANGE

GUIDE, CABLE

HOLDER, CABLE

SCREW, PAN HEAD(4MY)

WASHER(1RW)

NUT, HEXAGON
