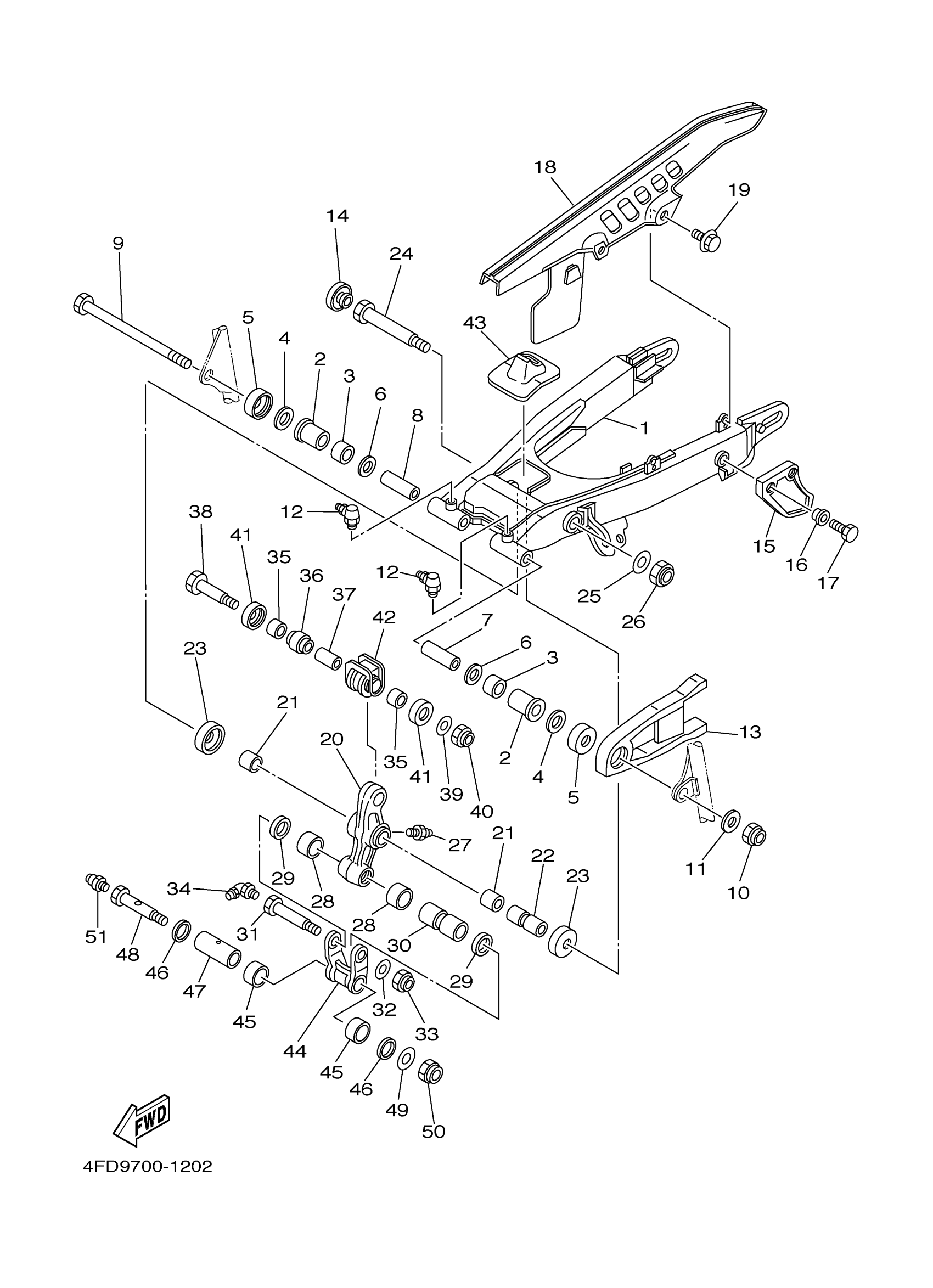

Yamaha XT225PC (XT225 CA) 5RK1 2002 REAR ARM Diagram
#
1
REAR ARM COMP.
4BE-22110-00-35
Unavailable
7
COLLAR(1KH)
90387-121N2-00
Unavailable
8
COLLAR (10V)
90387-127F2-00
Unavailable
9
SHAFT, PIVOT
34X-22141-00-00
Unavailable
13
SEAL, GUARD
1KH-22151-00-00
Unavailable
14
CAP
34L-22117-00-00
Unavailable
16
COLLAR (3L6)
90387-06737-00
Unavailable
17
BOLT, HEXAGON
97017-06020-00
Unavailable
18
CASE, CHAIN
34X-22311-01-00
Unavailable
19
BOLT, WITH WASHER (10V)
90119-05062-00
Unavailable
20
ARM, RELAY
3RW-2217A-00-00
Unavailable
21
BUSH (30X)
90386-20120-00
Unavailable
22
COLLAR (30X)
90387-140J9-00
Unavailable
23
COVER, THRUST 1
34L-22128-00-00
Unavailable
24
BOLT, WASHER BASED(3RW)
90105-12668-00
Unavailable
25
WASHER, PLATE (35T)
90201-122H1-00
Unavailable
26
NUT, U (4PM)
95617-12100-00
Unavailable
27
NIPPLE, GREASE
93700-06M03-00
Unavailable
28
BUSH (26H)
90386-18115-00
Unavailable
30
COLLAR (38M)
90387-126J8-00
Unavailable
31
BOLT (30X)
90109-10752-00
Unavailable
32
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
33
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
35
BUSH, SOLID (22W)
90380-16109-00
Unavailable
36
BUSH 2
22W-22124-00-00
Unavailable
37
COLLAR (22W)
90387-106G0-00
Unavailable
38
BOLT (22W)
90109-10689-00
Unavailable
39
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
40
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
41
COVER, THRUST 2
22W-22129-00-00
Unavailable
42
BOOT, RUBBER
22W-22189-00-00
Unavailable
43
BOOT, RUBBER
3RW-22189-00-00
Unavailable
44
ROD, CONNECTING 1
1KH-2217F-00-00
Unavailable
45
BUSH (26H)
90386-18115-00
Unavailable
47
COLLAR(38W)
90387-121L6-00
Unavailable
48
BOLT (30X)
90109-10752-00
Unavailable
49
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
50
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
51
NIPPLE, GREASE
93700-06M03-00
Unavailable
