2001 Yamaha XT225 CA (XT225NC) Transmission Diagram

← All diagrams

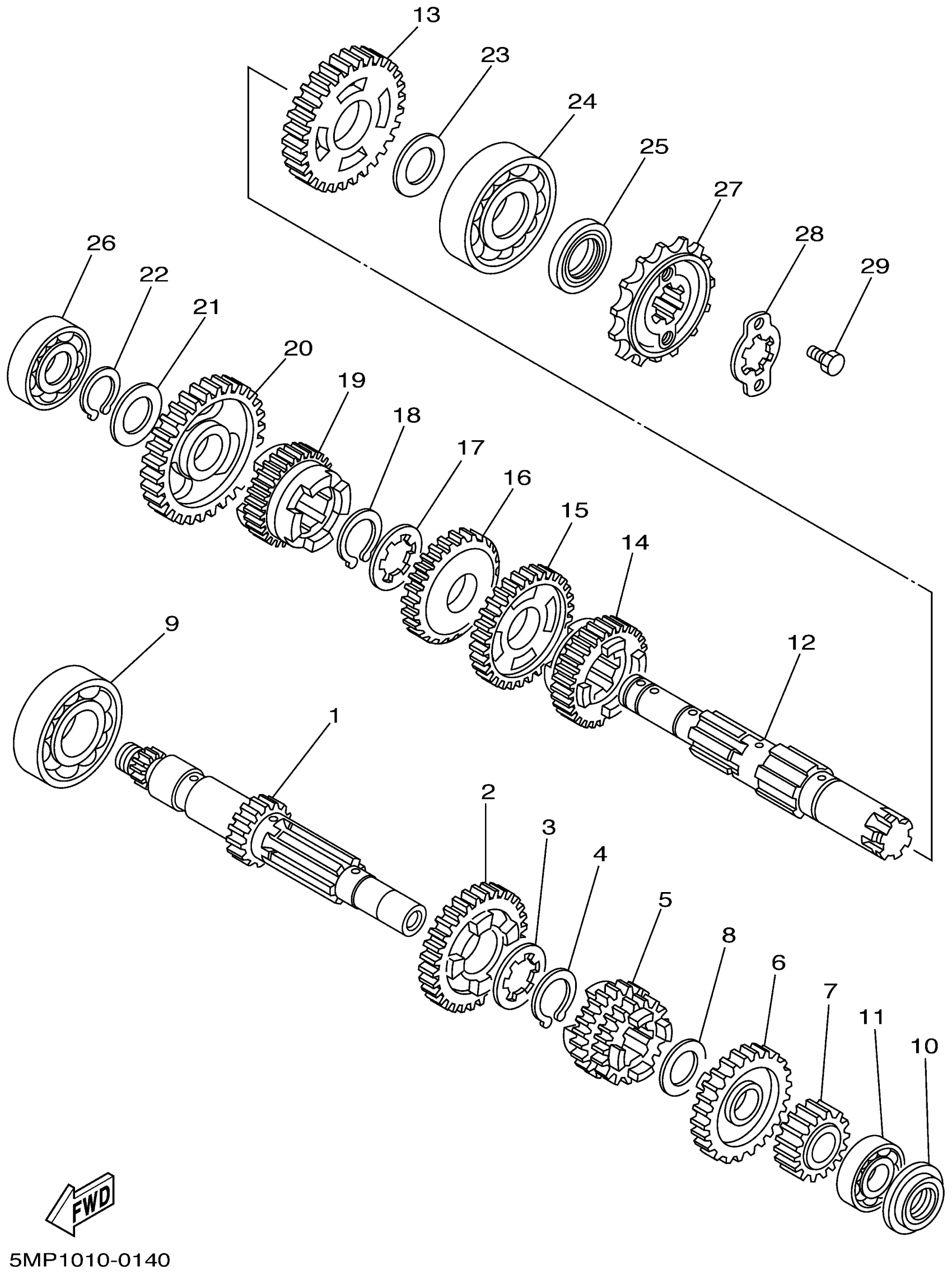

Find the part on the Transmission diagram for your 2001 Yamaha XT225 CA (XT225NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha XT225 CA (XT225NC) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

4JG-17411-00-00

1
Out of stock

2

GEAR, 6TH PINION

5MP-17161-00-00

—

$97.34

In stock

3

WASHER(59V)

90209-17285-00

1

$8.63

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 3RD PINION

1KH-17131-01-00

1

$124.22

In stock

6

GEAR, 5TH PINION

5MP-17151-00-00

—

$96.69

In stock

7

GEAR, 2ND PINION

1KH-17121-00-00

1
Out of stock

8

WASHER, PLATE(1KH)

90201-164K2-00

1

$2.25

In stock

9

BEARING(1YW)

93306-20461-00

1

$33.41

In stock

10

OIL SEAL (5H0)

93101-15101-00

1

$10.06

In stock

11

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

12

DRIVE AXLE ASSY

17T-17402-00-00

1
Out of stock

13

GEAR, 2ND WHEEL

1KH-17221-01-00

—
Out of stock

14

GEAR, 5TH WHEEL

5MP-17251-00-00

—

$85.94

In stock

15

GEAR, 3RD WHEEL

1KH-17231-01-00

1
Out of stock

16

GEAR, 4TH WHEEL

17T-17241-03-00

—

$60.89

In stock

17

WASHER (5H0)

90209-18208-00

—

$6.74

In stock

18

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

19

GEAR, 6TH WHEEL

5MP-17261-00-00

—

$85.94

In stock

20

GEAR, 1ST WHEEL

1KH-17211-00-00

—
Out of stock

21

WASHER PLATE 306155610000

90201-17257-00

—

$6.42

In stock

22

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

23

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

24

BEARING

93306-30443-00

—

$56.87

In stock

25

OIL SEAL

93102-20004-00

—

$9.52

In stock

26

BEARING (30X)

93306-20332-00

—

$32.02

In stock

27

SPROCKET,DRIVE 15T(1KH1746150)

1KH-17460-00-00

—
Out of stock

28

HOLDER, SPROCKET

5H0-17456-00-00

—
Out of stock

29

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
