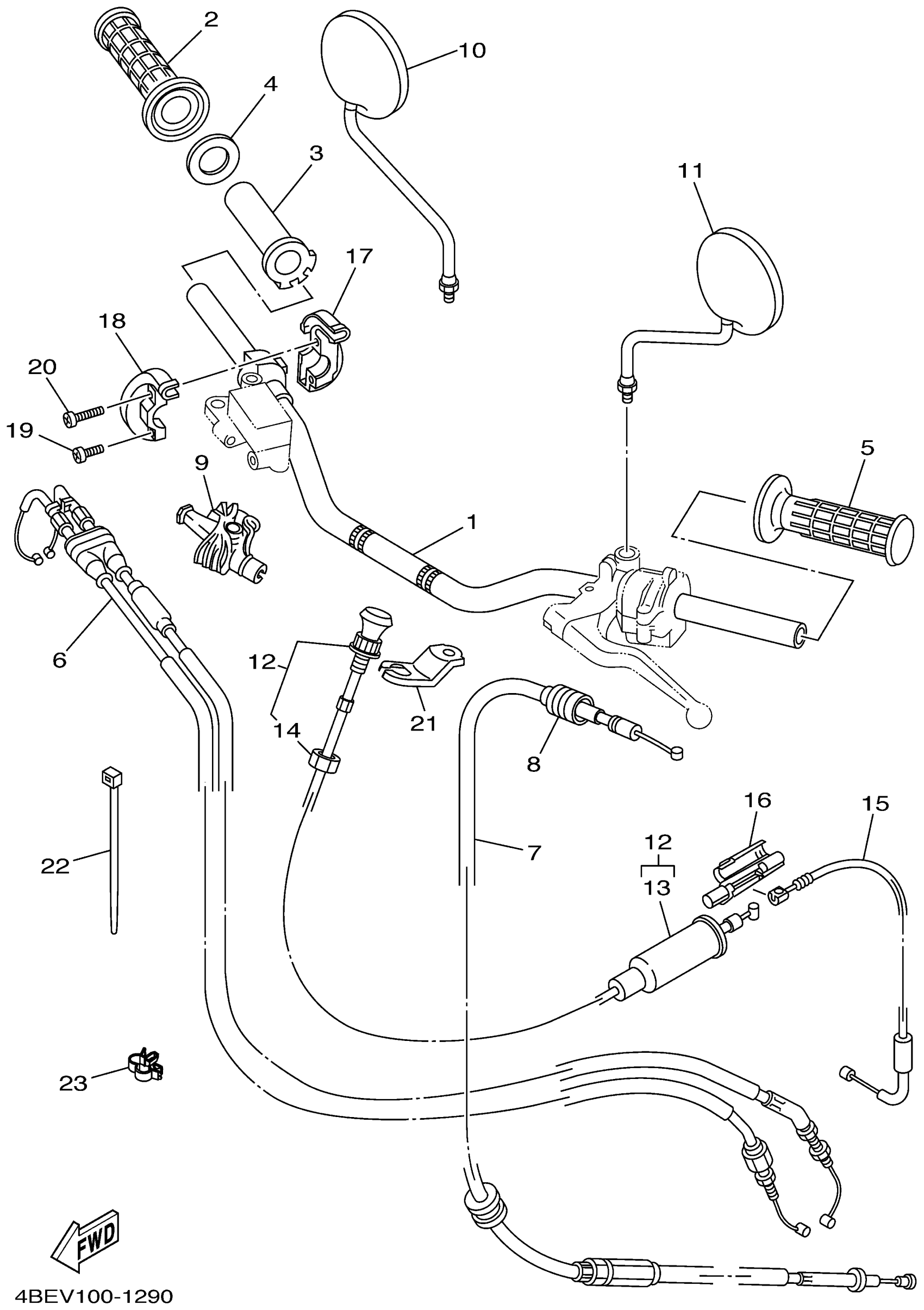

Yamaha XT225NC (XT225 CA) 4BEW 2001 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5MP-26111-00-00

Unavailable

2

GRIP (R.H)

1LX-26242-01-00

$34.99

3

TUBE, THROTTLE GUIDE

5BE-26243-00-00

$17.49

4

RING, LEAF

3Y1-26249-00-00

$9.99

5

GRIP (L.H)

1LX-26241-01-00

$33.99

6

THROTTLE CABLE ASSY

4BE-26302-00-00

Unavailable

7

CABLE, CLUTCH

4JG-26335-20-00

Unavailable

8

BOOT, WIRE

1E6-26342-00-00

$30.99

9

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

10

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

11

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

12

STARTER CABLE ASSY

2TY-F6330-00-00

Unavailable

13

CAP, RUBBER

1YU-26329-00-00

Unavailable

14

NUT

1VJ-26333-00-00

$7.99

15

CABLE, STARTER 2

4BE-26334-00-00

Unavailable

16

CONNECTOR, CABLE

53L-26261-01-00

Unavailable

17

CAP, GRIP UPPER

3LN-26281-01-00

Unavailable

18

CAP, GRIP LOWER

3LN-26282-01-00

Unavailable

19

SCREW, PAN HEAD

98517-05020-00

Unavailable

20

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable

21

HOLDER, WIRE

4BE-2637G-10-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

CLAMP(4GY)

90464-10193-00

Unavailable
