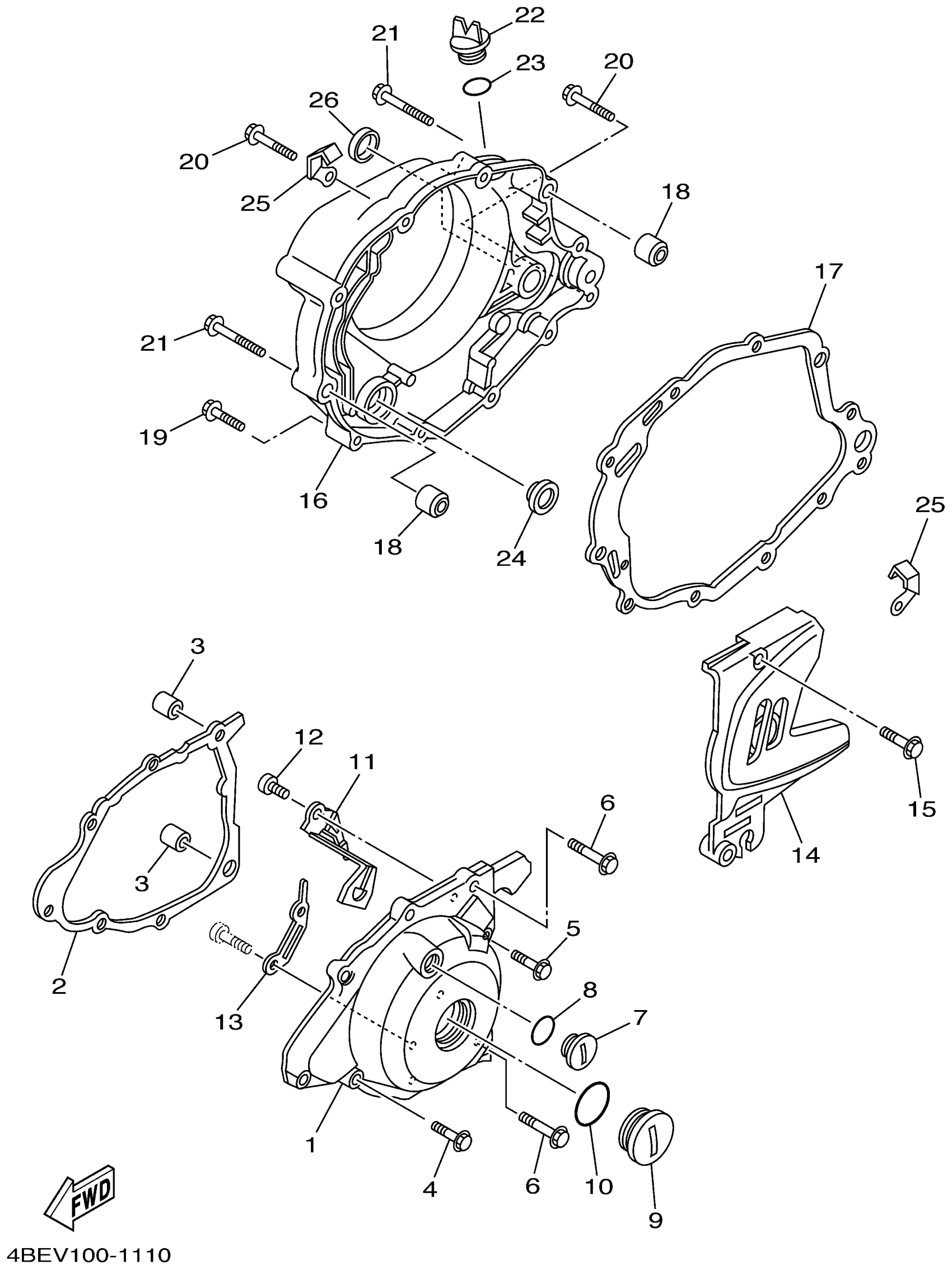

Yamaha XT225NC (XT225 CA) 4BEW 2001 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4WP-15411-02-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4BE-15451-03-00

$22.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

5

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

6

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

7

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

8

O-RING (2H9)

93210-14369-00

$7.49

9

PLUG, STRAIGHT SCREW(2GV)

90340-32116-00

$15.49

10

O-RING (341)

93210-32172-00

$7.49

11

CLAMP(4JG)

90465-08364-00

$24.99

12

BOLT,SOCKET

91317-06010-00

$9.49

13

CLAMP(4JG)

90462-16213-00

Unavailable

14

CRANKCASE COVER ASSY 2

4JG-15420-00-00

Unavailable

15

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

16

COVER, CRANKCASE 3

5MP-15431-00-00

Unavailable

17

GASKET, CRANKCASE COVER 3

4BE-15462-00-00

Unavailable

18

PIN, DOWEL

99530-12016-00

$4.89

19

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

20

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

21

BOLT, SMALL FLANGE

95024-06045-00

Unavailable

22

PLUG, OIL

3Y1-15363-10-00

Unavailable

23

O-RING (646)

93210-19123-00

Unavailable

24

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

25

CLAMP(4AJ)

90462-08225-00

Unavailable

26

PLUG, BLIND 1

55X-15167-00-00

Unavailable
