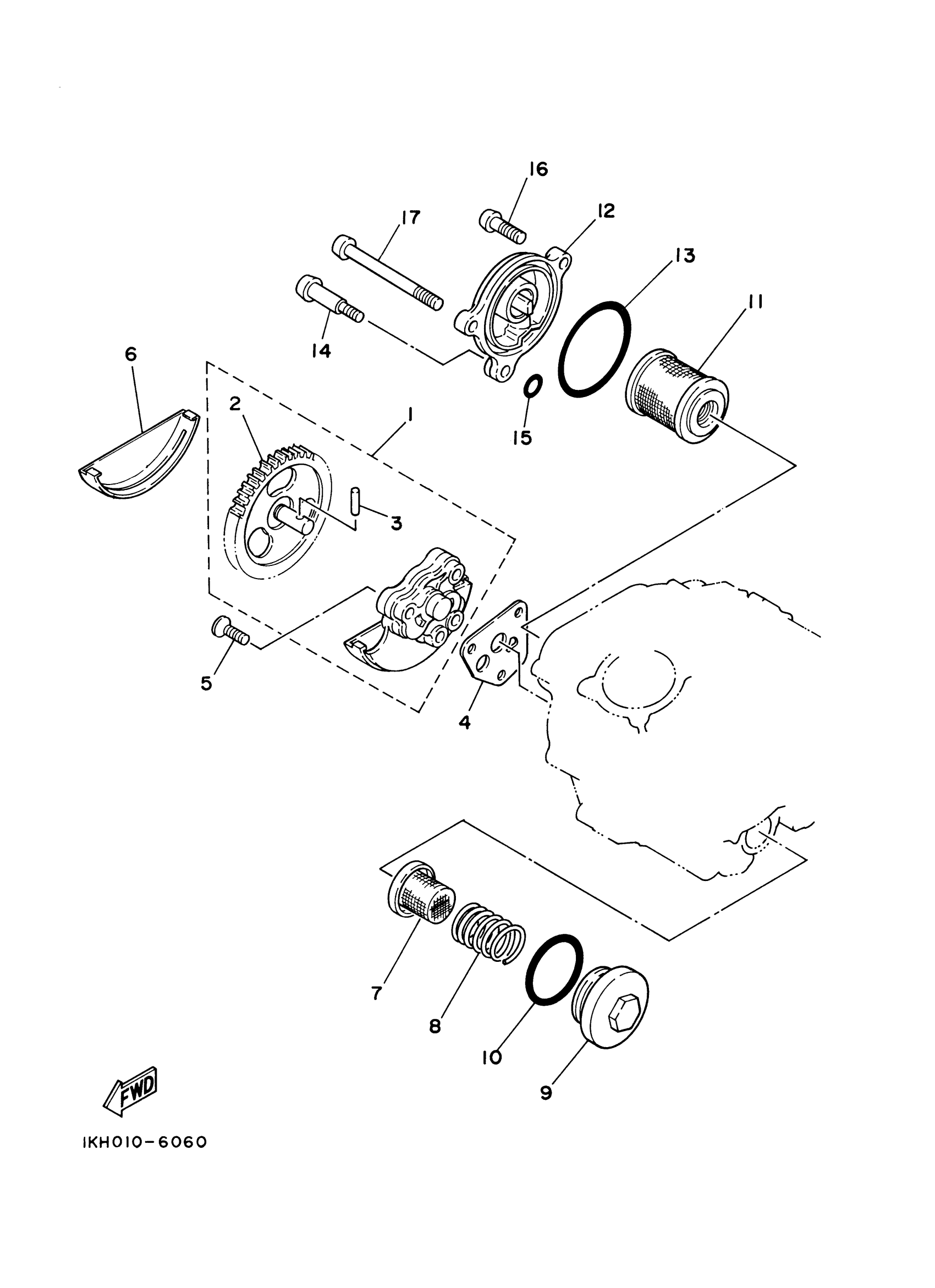

Yamaha XT225MC (SEROW CA) 4BET 2000 OIL PUMP Diagram

OIL PUMP ASSY

5H0-13300-02-00

$165.99

GEAR, PUMP DRIVEN 2

5H0-13326-01-00

$39.99

PIN,DOWEL (137)

93603-12030-00

$2.07

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

SCREW, FLAT

98707-06030-00

$7.99

COVER, PUMP GEAR

5H0-13327-00-00

Unavailable

STRAINER, OIL

51Y-13411-00-00

$37.99

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

PLUG, DRAIN

5H0-15351-00-00

$31.99

O-RING

93210-347A1-00

$7.49

OIL CLEANER ASSY

5H0-13440-09-00

$10.99

COVER, OIL ELEMENT

3AW-13447-01-00

Unavailable

O-RING (341)

93210-54175-00

$13.49

BOLT (583 OIL DRAIN)

90109-06419-00

$8.49

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

SCREW, PAN

98507-06075-00

Unavailable
