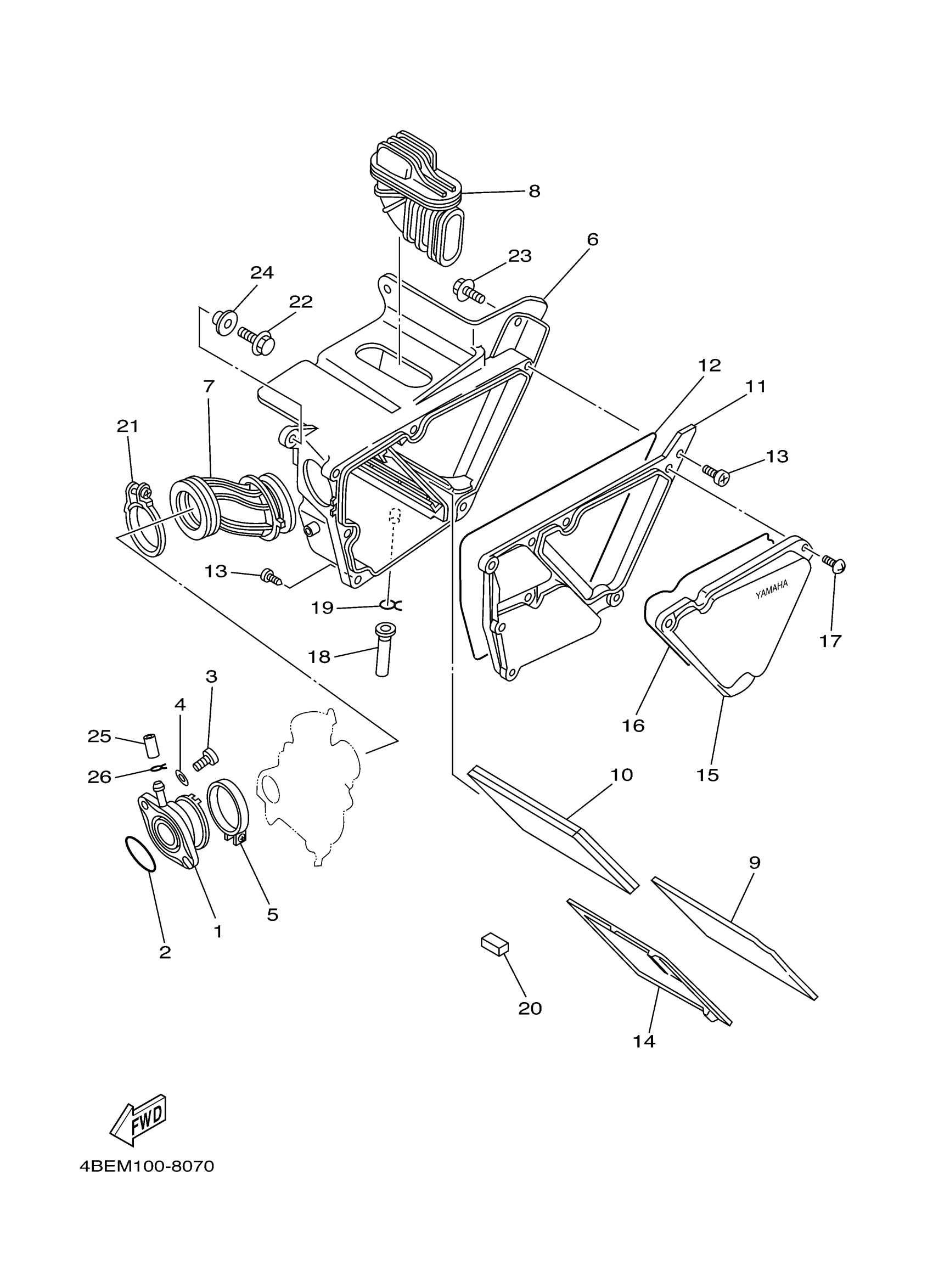

Find the part on the Intake diagram for your 2000 Yamaha Serow CA (XT225MC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Yamaha Serow CA (XT225MC) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

2LN-13586-01-00

1
Out of stock

2

O-RING (16G)

93210-35537-00

1

$11.32

In stock

3

BOLT, BUTTON

92017-06020-00

1

$2.57

In stock

4

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

5

HOSE CLAMP ASSY

90450-49001-00

1
Out of stock

6

CASE, AIR CLEANER 1

3RW-14411-02-00

—
Out of stock

7

JOINT, AIR CLEANER 1

3RW-14453-01-00

1
Out of stock

8

DUCT

1KH-14437-01-00

1
Out of stock

9

GUIDE

1KH-14458-00-00

1
Out of stock

10

ELEMENT, AIR CLEANER

1KH-14451-01-00

1
Out of stock

11

CAP, CLEANER CASE 1

4JG-14412-00-00

1
Out of stock

12

SEAL

51Y-14462-00-00

1

$11.61

In stock

13

SCREW, PAN TAP.2 SLIT

97707-50620-00

1

$6.45

In stock

14

PLATE, ELEMENT

4JG-14472-00-00

1
Out of stock

15

CAP, CLEANER CASE 2

3RW-14422-00-00

—
Out of stock

16

SEAL

1VJ-14462-00-00

—

$16.08

In stock

17

SCREW, BINDING (10V)

90154-05013-00

—
Out of stock

18

PIPE, DRAIN

34X-1443E-00-00

—

$6.74

In stock

19

CLIP(1JH)

90467-11106-00

—
Out of stock

20

SEAL

36Y-14462-00-00

—
Out of stock

21

HOSE CLAMP ASSY

90450-56001-00

—

$14.77

In stock

22

SCREW, WITH WASHER (1W4)

90159-06016-00

—
Out of stock

23

BOLT, WITH WASHER(2WG)

90119-06172-00

—

$5.83

In stock

24

COLLAR (3Y2)

90387-07789-00

—
Out of stock

25

PLUG, BLIND

16G-13569-00-00

—
Out of stock

26

CLIP (3G0)

90467-10039-00

—
Out of stock
