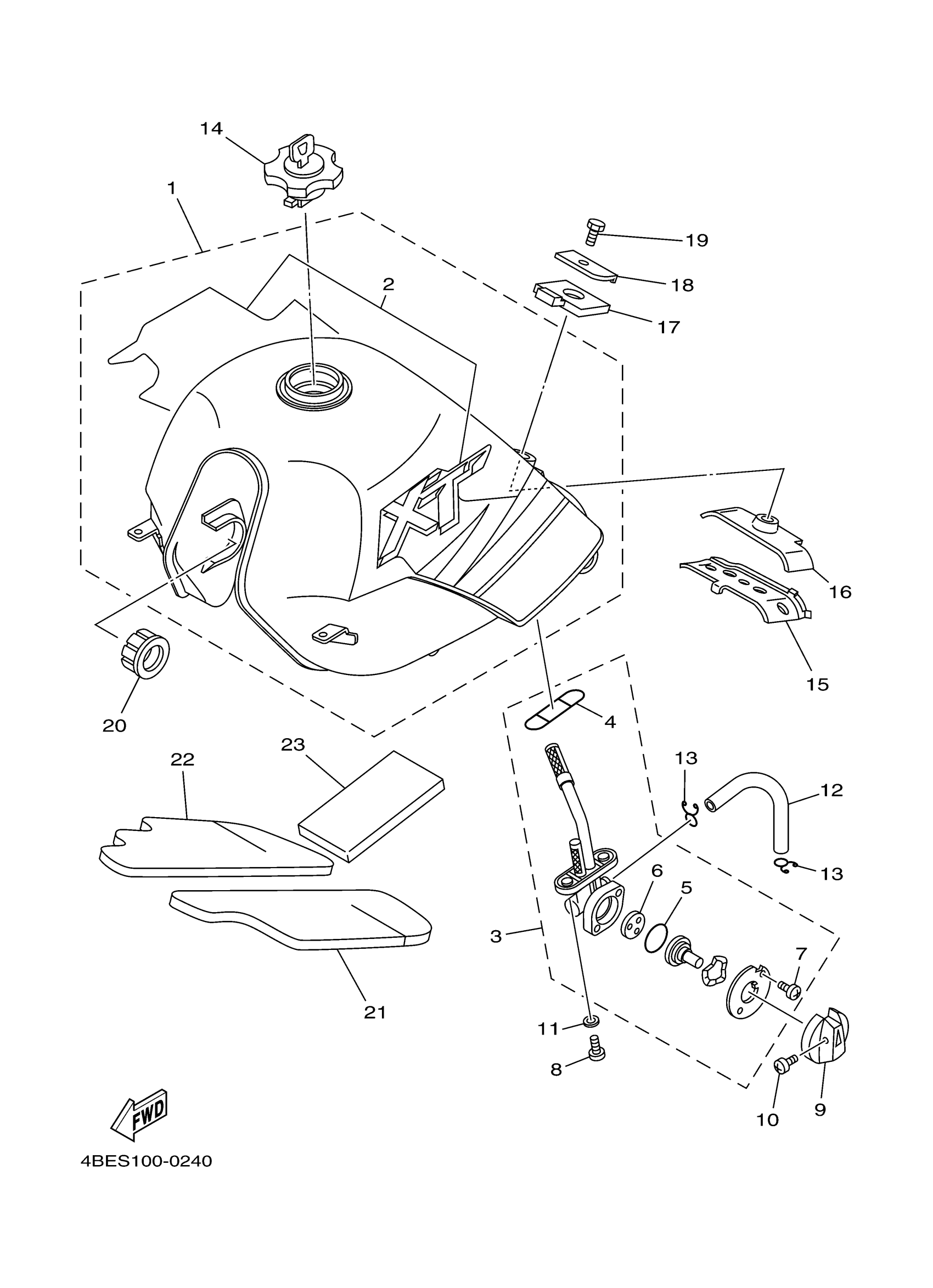

Yamaha XT225MC (SEROW CA) 4BET 2000 FUEL TANK Diagram

FUEL TANK COMP. (PURPLISH WHITE SOLID 1)

3RW-Y2410-00-01

Unavailable

FUEL TANK COMP. (PURPLISH WHITE SOLID 1)

4BE-Y2410-00-01

Unavailable

. GRAPHIC SET

4BE-24240-60-00

Unavailable

FUEL COCK ASSY 1

3RW-24500-01-00

$81.99

O-RING

4X8-24512-00-00

$8.99

SEAL, COCK

3AJ-24534-01-00

$10.99

VALVE PACKING

3AC-24523-00-00

$12.99

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

SCREW 256241430000

90149-06011-00

$5.60

LEVER, COCK

1YH-F4524-00-00

Unavailable

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

WASHER, PLATE(3MB)

90202-05187-00

$1.38

HOSE (L200)

90445-10752-00

$4.99

CLIP

90467-090A2-00

$4.41

CAP ASSY

11H-24602-10-00

$101.99

CAP ASSY

51K-24602-10-00

Unavailable

WASHER, SPECIAL

1KH-24187-00-00

Unavailable

DAMPER, LOCATING 2

1KH-24182-00-00

Unavailable

DAMPER, LOCATING 3

30X-24183-01-00

Unavailable

WASHER, SPECIAL

30X-24186-01-00

Unavailable

BOLT, HEXAGON

97017-06012-00

Unavailable

DAMPER, LOCATING

4H7-24181-00-00

Unavailable

DAMPER, PLATE 1

3RW-2414H-00-00

Unavailable

DAMPER, PLATE 2

3RW-2414J-00-00

Unavailable

DAMPER

11H-21747-00-00

Unavailable
