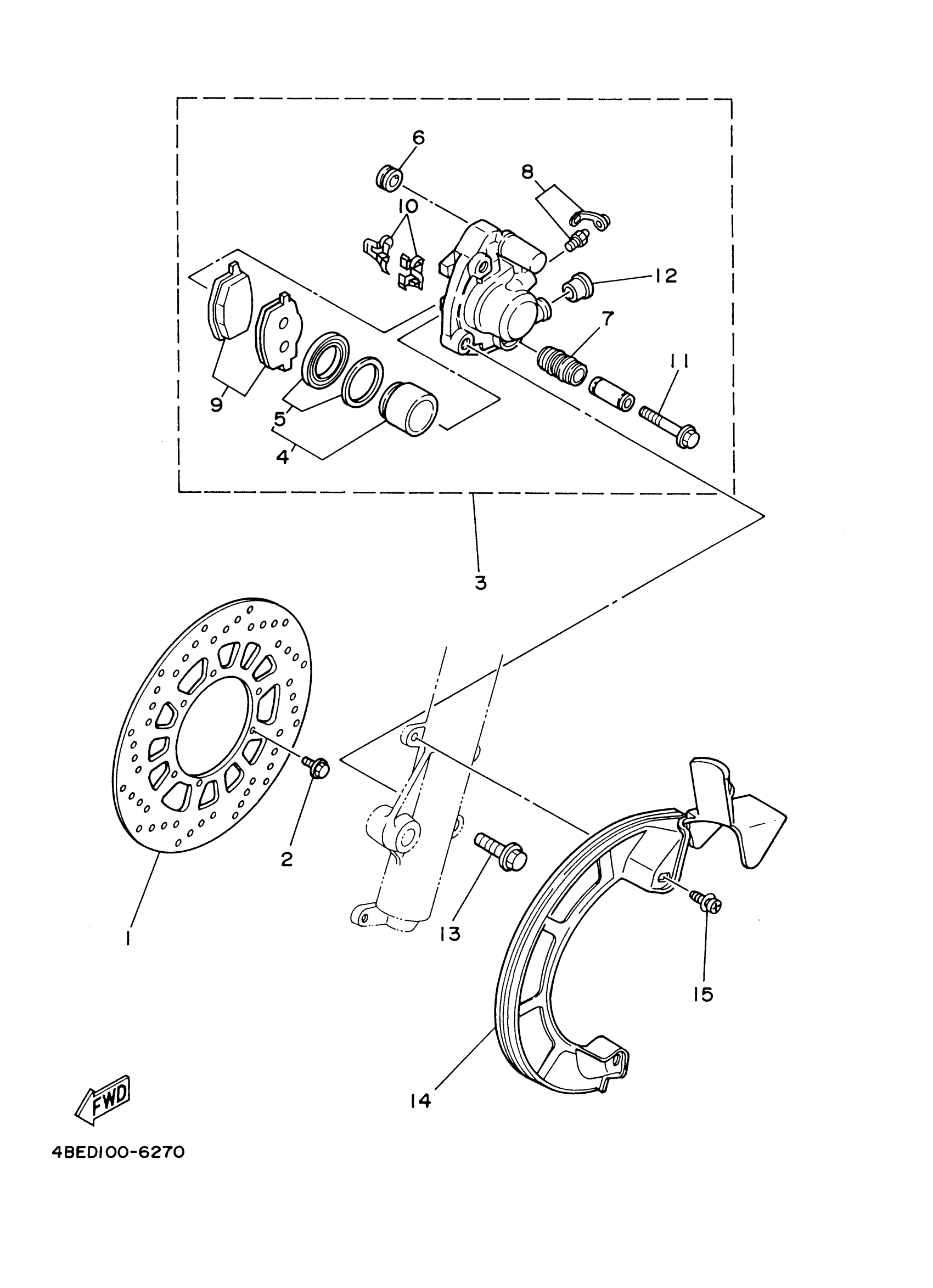

Yamaha XT225MC (SEROW CA) 4BET 2000 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$92.99

2

BOLT, FLANGE

90105-06109-00

$9.49

3

CALIPER ASSY (LEFT)

3BN-2580T-11-00

Unavailable

4

PISTON ASSY, CALIPER

34X-W0057-00-00

$128.99

5

CALIPER SEAL KIT

34X-W0047-00-00

$45.99

6

BOOT 2

5R2-25937-00-00

$37.99

7

BOOT 2

34X-25937-00-00

$31.99

8

BLEED SCREW KIT

15B-W0048-00-00

$19.99

9

BRAKE PAD KIT

3BN-25805-02-00

$37.99

10

SUPPORT, PAD

34X-25919-00-00

Unavailable

11

BOLT

5KN-25926-01-00

$8.99

12

CAP, INDICATOR

34X-25845-00-00

$16.49

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

14

COVER 1

3RW-25715-20-00

Unavailable

15

SCREW, WITH WASHER(3YR)

90159-06181-00

$3.71
