Description

Price

1

PIPE, EXHAUST 1

3RW-14611-00-00

Unavailable

2

NUT, RING

5H0-14612-01-00

$16.49

3

PROTECTOR, EXHAUST PIPE

3RW-14628-00-00

Unavailable

4

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

5

SCREW, BIND(1JK)

98980-06010-00

$9.49

6

WASHER, WAVE(3RW)

90206-06090-00

$8.49

7

MUFFLER 1

4BE-14711-00-00

Unavailable

8

PROTECTOR, MUFFLER 2

1KH-14728-01-00

Unavailable

9

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

10

SCREW, BINDING

98907-06010-00

$1.65

11

WASHER, WAVE(3RW)

90206-06090-00

$8.49

12

PIPE, OUTLET

1RH-14752-01-00

$141.99

13

GASKET, MUFFLER

3YF-14714-00-00

$36.99

14

BOLT, FLANGE(4MY)

95027-08025-00

$9.49

15

PROTECTOR, MUFFLER 2

3TB-14728-00-00

Unavailable

16

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

17

SCREW, BIND(1JK)

98980-06010-00

$9.49

18

WASHER, WAVE(3RW)

90206-06090-00

$8.49

19

SCREW, PAN

98507-06010-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

GASKET, EXHAUST PIPE

4BE-14613-00-00

Unavailable

22

BOLT,SOCKET

91317-06020-00

Unavailable

23

BOLT(2KF)

90109-085E2-00

Unavailable

24

WASHER (853)

90201-08326-00

Unavailable

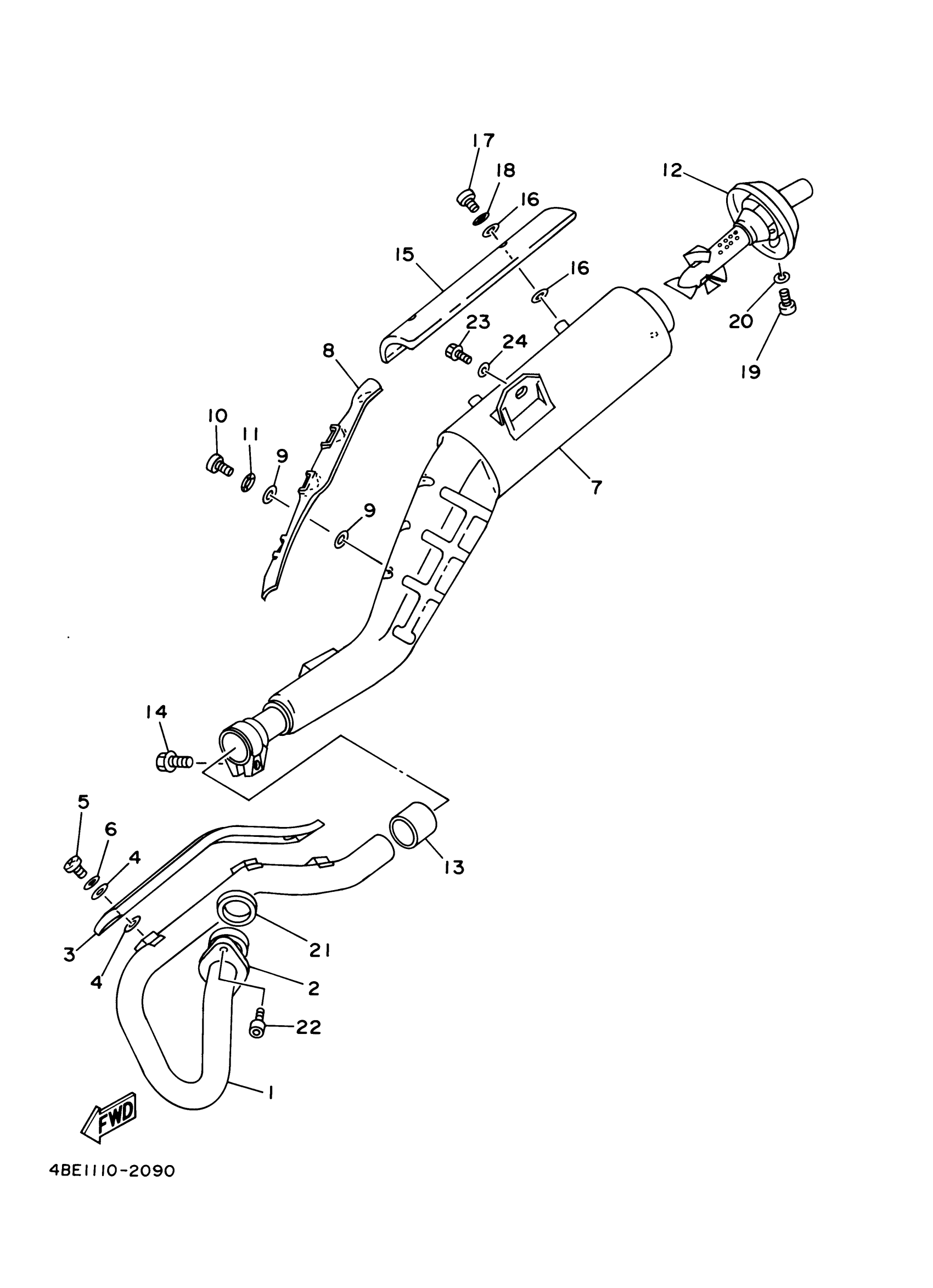

Yamaha XT225MC (SEROW CA) 4BET 2000 EXHAUST Diagram

PIPE, EXHAUST 1

NUT, RING

PROTECTOR, EXHAUST PIPE

WASHER, PROTECTOR

SCREW, BIND(1JK)

WASHER, WAVE(3RW)

MUFFLER 1

PROTECTOR, MUFFLER 2

WASHER, PROTECTOR

SCREW, BINDING

WASHER, WAVE(3RW)

PIPE, OUTLET

GASKET, MUFFLER

BOLT, FLANGE(4MY)

PROTECTOR, MUFFLER 2

WASHER, PROTECTOR

SCREW, BIND(1JK)

WASHER, WAVE(3RW)

SCREW, PAN

WASHER, SPRING

GASKET, EXHAUST PIPE

BOLT,SOCKET

BOLT(2KF)

WASHER (853)
