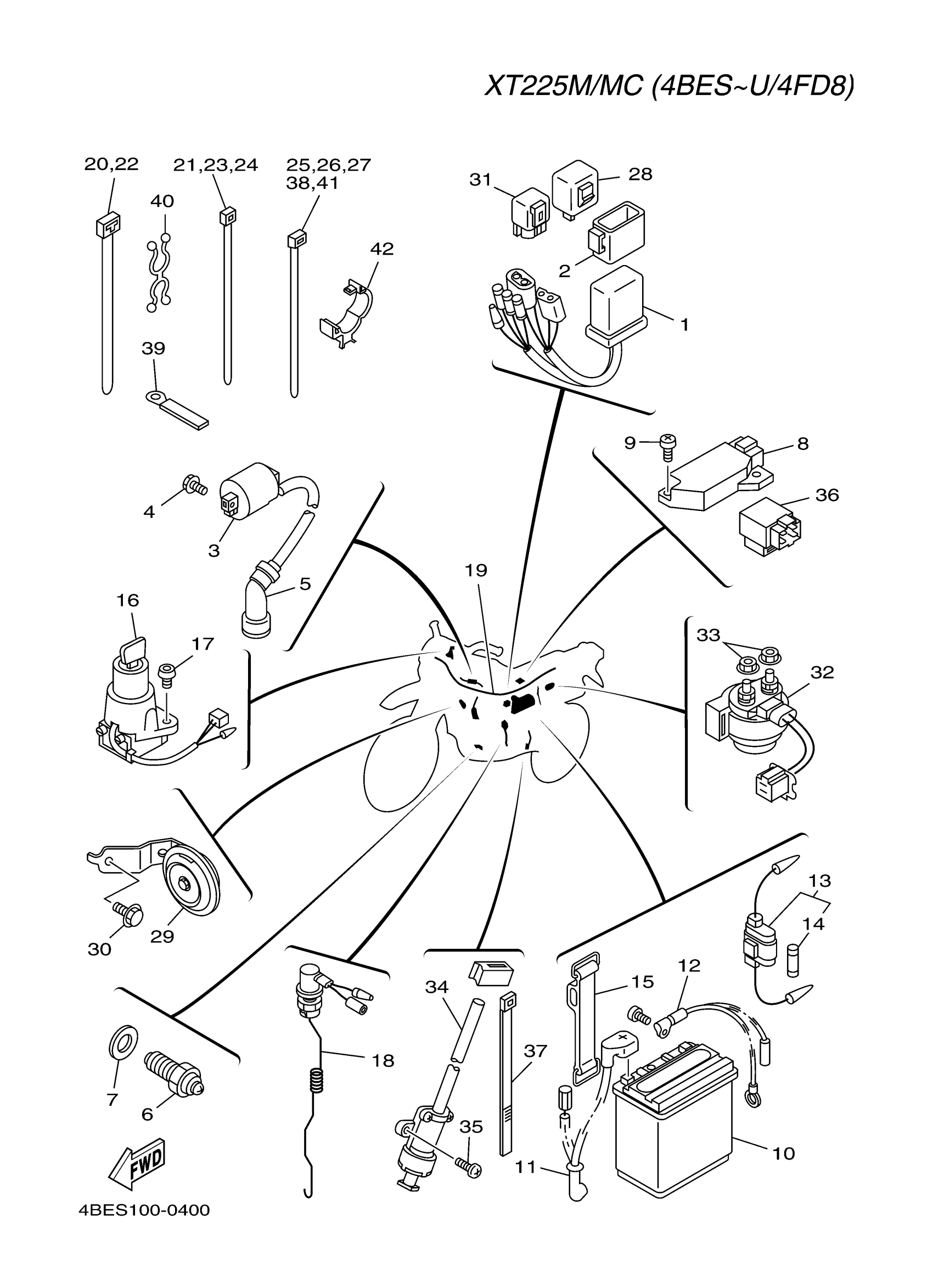

Yamaha XT225MC (SEROW CA) 4BET 2000 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

4BE-85540-01-00

Unavailable

BAND

3RW-85546-00-00

$23.99

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

PLUG CAP ASSY

3NS-82370-00-00

$37.99

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

YTX7LBS YUASA BATTERY - SA

YTX-7LBS0-00-00

Unavailable

WIRE, PLUS LEAD

4JG-82115-00-00

Unavailable

WIRE, MINUS LEAD

4JG-82116-00-00

Unavailable

FUSE HOLDER ASSY

2TV-82150-02-00

Unavailable

FUSE (12V-15A)

4X7-82151-00-00

$3.80

BAND, BATTERY

22F-82131-00-00

$29.99

MAIN SWITCH STEERING LOCK

2HV-82501-00-00

Unavailable

SCREW(1KT)

90149-06228-00

Unavailable

STOP SWITCH ASSY

5BT-82530-00-00

Unavailable

WIRE HARNESS ASY

4BE-82590-01-00

Unavailable

CLAMP

90464-20258-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP

90464-20258-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP

90464-16061-00

Unavailable

CLAMP

90464-16061-00

Unavailable

CLAMP

90464-16061-00

Unavailable

FLASHER RELAY ASSY

4VR-83350-02-00

Unavailable

HORN

3RW-83371-11-00

Unavailable

BOLT, FLANGE

95817-06010-00

Unavailable

RELAY ASSY

3RW-81950-01-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

SWITCH, SIDE STAND

3LD-82566-41-00

Unavailable

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

CLAMP

90464-16061-00

Unavailable

CLAMP

90464-16061-00

Unavailable

CLAMP(4MX)

90465-06376-00

Unavailable

CLAMP

90464-16115-00

Unavailable

CLAMP

90464-16061-00

Unavailable

CLAMP(4GY)

90464-10190-00

Unavailable
