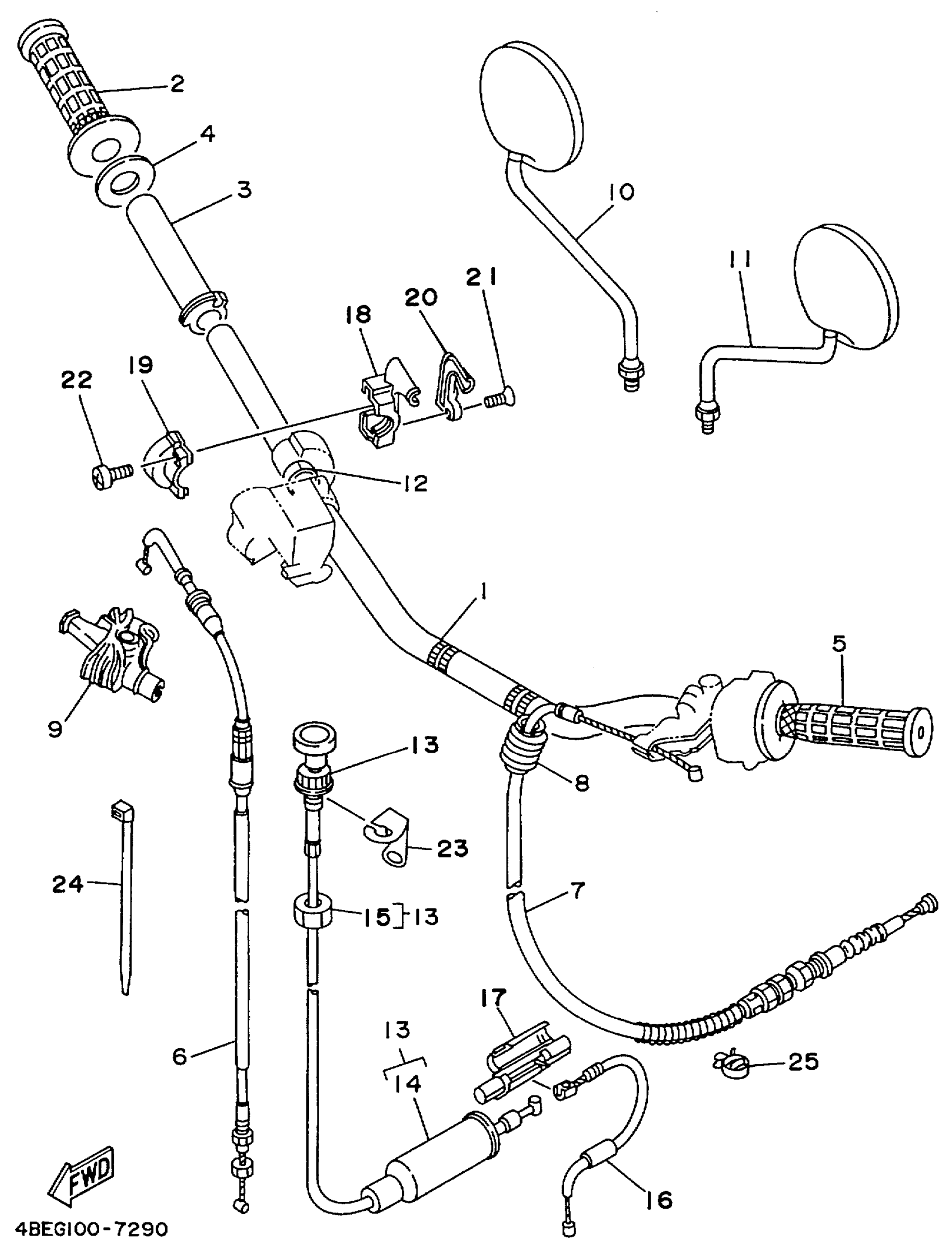

Yamaha XT225LC (SEROW CA) 4BENC 1999 STEERING HANDLE CABLE Diagram

HANDLEBAR

4BE-26111-01-00

Unavailable

GRIP (R.H)

1LX-26242-01-00

$34.99

TUBE, THROTTLE GUIDE

434-26243-12-00

$27.99

RING, LEAF

1M1-26249-01-00

$7.99

GRIP (L.H)

1LX-26241-01-00

$33.99

CABLE, THROTTLE 1

3RW-26311-10-00

$75.99

CABLE, CLUTCH

4JG-26335-01-00

$56.99

BOOT, WIRE

1E6-26342-00-00

$30.99

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

REAR VIEW MIRROR ASSY(RIGHT)

3Y1-26290-00-00

$53.99

MIRROR ASSY., 2

5Y1-26290-11-00

$75.99

COLLAR (2H7)

90387-22660-00

$9.49

STARTER CABLE ASSY

2TY-F6330-00-00

Unavailable

CAP, RUBBER

1YU-26329-00-00

Unavailable

NUT

1VJ-26333-00-00

$7.99

CABLE, STARTER 2

3RW-26334-00-00

Unavailable

CONNECTOR, CABLE

53L-26261-01-00

Unavailable

CAP, GRIP UPPER

38V-26281-00-98

Unavailable

CAP, GRIP UNDER (516)

493-26282-00-98

Unavailable

CAP, WIRE

38V-2628H-00-00

Unavailable

SCREW, FLAT

98707-04012-00

Unavailable

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

HOLDER, WIRE

4BE-2637G-10-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP(4GY)

90464-10193-00

Unavailable
